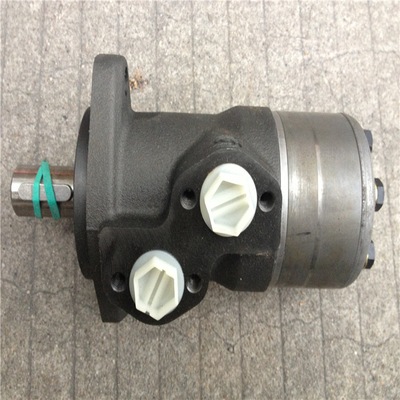

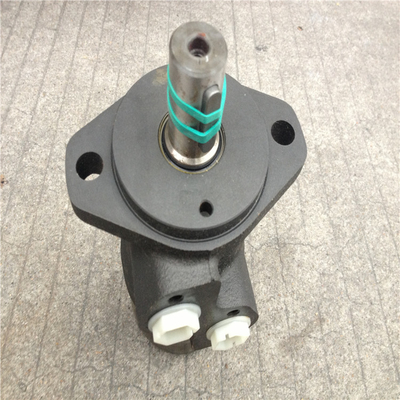

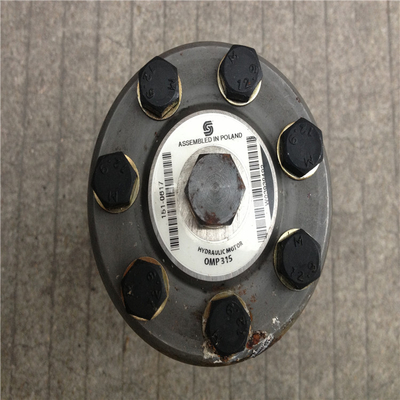

Danfoss OMR315 151-0617 The Ultimate Choice For Your Medium To Heavy-Duty Hydraulic Motor Applications

Technical Specifications

• Displacement: 315 cm³/rev
• Maximum Continuous Speed: 195 rpm
• Maximum Continuous Torque: 300 Nm
• Maximum Continuous Power: 5.0 kW
• Shaft Type: Cylindrical, 32 mm diameter
• Flange Type: A2
• Port Style: Side port
• Port Size: G 1/2
• Drain Port: Standard
• Material: Cast iron
• Color: Black (RAL 9005)
• Weight: 6.9 kg (15.2 lbs)

Features

• Robust Design: Built for durability and reliability in demanding environments.
• Compact Size: Suitable for applications with space constraints.
• High Torque Capability: Provides high torque at relatively low speeds, making it ideal for heavy-duty applications.
• Advanced Sealing System: High back pressure tolerance, which helps improve the life and reliability of the motor.
• Versatile Applications: Suitable for a wide range of industrial and mobile hydraulic systems.

Applications

• Agricultural Machinery: For applications requiring high torque and reliability.
• Construction Equipment: Suitable for heavy-duty construction machinery.
• Material Handling: Ideal for forklifts and other lifting equipment.
• Forestry Equipment: Used in forestry machinery for heavy-duty operations.
• Lawn and Turf Equipment: Suitable for landscaping and maintenance machinery.
