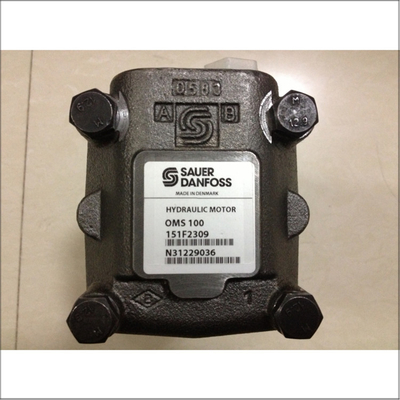

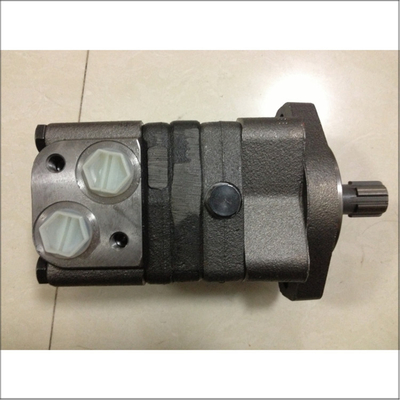

Boost Productivity With The Danfoss OMS100 151F2309 Hydraulic Motor For Medium To Heavy-Duty Applications

Technical Specifications

• Displacement: 100 cm³/rev
• Maximum Continuous Speed: 750 rpm

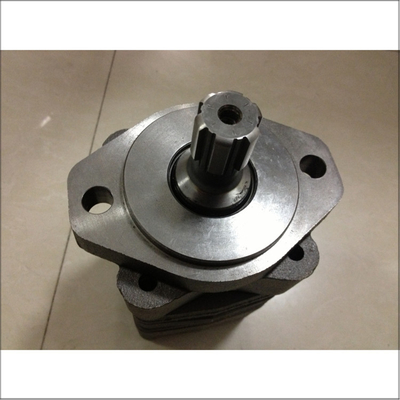

• Shaft Type: Splined 1" SAE 6B
• Flange Type: SAE A 2-hole
• Mounting Bolt Circle Diameter (PCD): 106.4 mm
• Port Style: UNF threaded
• Material: Cast iron
• Color: Black (RAL 9005)
• Weight: Approximately 10.0 kg (22.1 lbs)

Features

• Smooth Operation: Runs smoothly over the entire speed range.
• Constant Torque: Maintains constant operating torque over a wide speed range.
• High Starting Torque: Provides high starting torque.
• High Return Pressure: Capable of handling high return pressure without the need for a drain line.
• Robust Design: Built for durability and reliability in demanding environments.
• Versatile Applications: Suitable for a wide range of industrial and mobile hydraulic systems.

Applications

• Agricultural Machinery: For applications requiring high torque and reliability.
• Construction Equipment: Suitable for heavy-duty construction machinery.
• Material Handling: Ideal for forklifts and other lifting equipment.
• Forestry Equipment: Used in forestry machinery for heavy-duty operations.
• Lawn and Turf Equipment: Suitable for landscaping and maintenance machinery.
