Description:

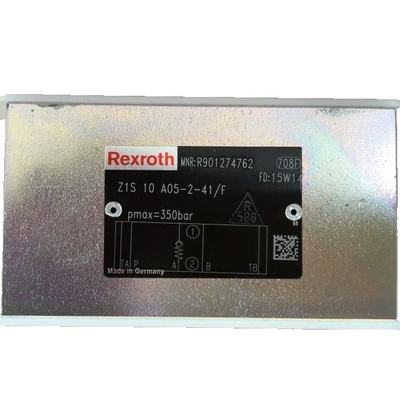

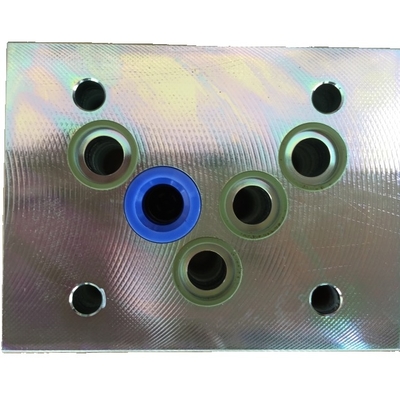

Rexroth Hydraulic Valve Z1S10A05-2-41/F is a high-performance stacking check valve designed for industrial hydraulic systems. The valve adopts a direct-acting structure and can reliably block the oil flow at the selected oil port while allowing free flow in the reverse direction. Specifications and performance: It belongs to the component series of specification 10, with a maximum working pressure of up to 350 bar (5076 psi) and a maximum flow of 100 L/min.The valve body adopts a corrosion-resistant design and is suitable for vertically stacked stacking valves. The oil port mounting surface complies with ISO 4401-05-04-0-05 and ISO 4401-05-05-0-05 standards.
Sealing and durability: The valve core is made of high-performance plastic, has excellent sealing and can effectively prevent leakage.
Application areas:
Rexroth Hydraulic Valve Z1S10A05-2-41/F is widely used in various industrial fields, especially in situations where the flow direction of hydraulic oil needs to be precisely controlled:
Construction machinery: used in the hydraulic systems of equipment such as excavators and cranes to ensure the unidirectional flow of hydraulic oil and prevent backflow.
Industrial automation: in automated production lines, the valve can be used to control the action of hydraulic cylinders or hydraulic motors to achieve precise displacement and speed control.
Hydraulic test equipment: in equipment such as hydraulic test benches, the valve can be used to simulate actual working conditions and test the performance of hydraulic systems.
Ship and marine engineering: in the hydraulic systems of ships, such as steering gears and cranes, the valve can ensure the unidirectional flow of hydraulic oil and improve the reliability and safety of the system.
Advantages:
High sealing: the valve core is made of high-performance plastic, which can achieve one-way blocking without leakage while allowing free flow in the reverse direction.
Corrosion-resistant design: the valve body is made of corrosion-resistant materials, suitable for long-term use in harsh environments.
Easy to maintain: by replacing the external sealing ring, it can easily adapt to different hydraulic oils and reduce maintenance costs.
Flexible installation options: ISO-compliant port mounting surface for easy integration into existing hydraulic systems.
Cost-effective: Check valve mounting kits can be ordered separately, with low cost for replacing worn parts.
Multiple functional options: Measuring ports and check valve functions are available to meet the needs of different application scenarios.
| Brand |
Rexroth |
| Model |
Z1S10A05-2-41/F |
| Color |
Silver Color |
| place of origin |
Germany |
| Material |
Cast Iron |
| Power Source |
Electric |
