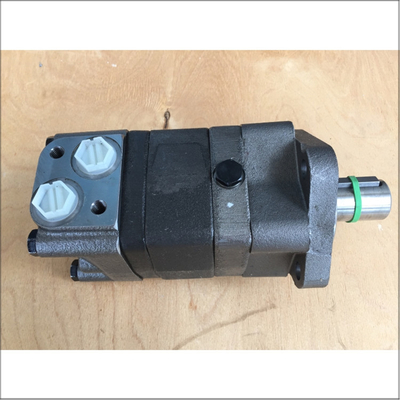

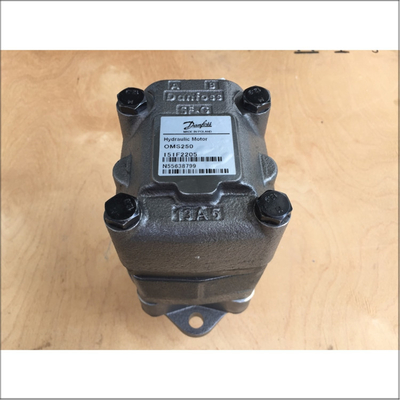

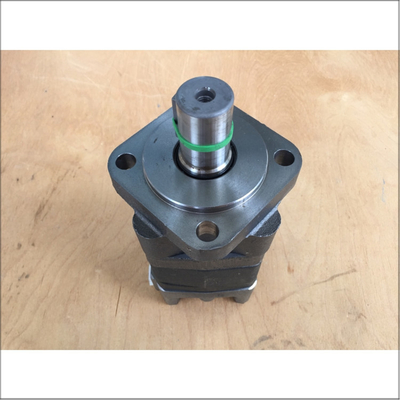

Danfoss OMS250 151F2205 The Perfect Hydraulic Motor For Your Construction Agriculture And Material Handling Needs

Technical Specifications

• Displacement: 250 cm³/rev
• Maximum Continuous Speed: 300 rpm
• Maximum Intermittent Speed: 360 rpm
• Maximum Continuous Torque: 720 Nm
• Maximum Intermittent Torque: 870 Nm
• Shaft Type: Splined 1.25 in (7/8-14 UNF)
• Port Size: 7/8 - 14 UNF
• Drain Port: 7/16 - 20 UNF
• Flange Type: Standard 4-hole flange
• Weight: Approximately 12.0 kg
• Dimensions:
  • Maximum Length (Lmax): 196 mm
  • L1: 43.5 mm
  • L2: 153 mm

Features

• High Torque Capability: Provides high torque at relatively low speeds, making it ideal for heavy-duty applications.
• Smooth Operation: Ensures smooth operation at low speeds.
• Robust Design: Built to withstand rough operating conditions, such as high pressure and frequent reversals.
• Versatile Applications: Suitable for a wide range of industrial and mobile hydraulic systems.
• Standard Flange: Equipped with a standard 4-hole flange for easy installation.

Applications

• Agricultural Machinery: For applications requiring high torque and reliability.
• Construction Equipment: Suitable for heavy-duty construction machinery.
• Material Handling: Ideal for forklifts and other lifting equipment.
• Forestry Equipment: Used in forestry machinery for heavy-duty operations.
• Lawn and Turf Equipment: Suitable for landscaping and maintenance machinery.
