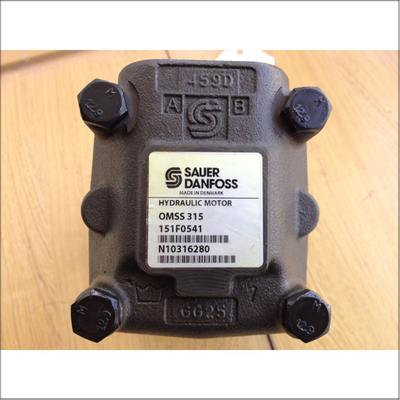

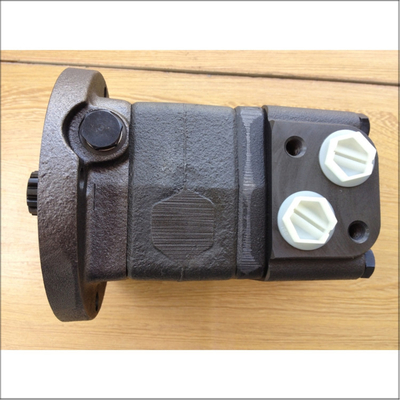

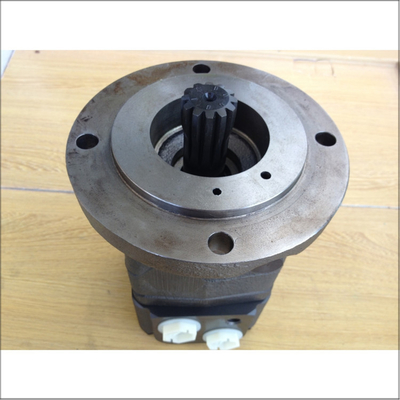

Danfoss OMSS315 151F0541 Interchangeable Easy-To-Install Hydraulic Motor For Demanding Industrial And Mobile Applications

Technical Specifications

• Displacement: 314.9 cm³/rev (19.22 in³/rev)
• Maximum Continuous Speed: 240 rpm
• Maximum Intermittent Speed: 285 rpm
• Maximum Continuous Torque: 825 Nm (7300 lbf-in)
• Maximum Intermittent Torque: 1000 Nm (8850 lbf-in)
• Shaft Type: No output shaft, 1/2 BSP port
• Flange Type: Special flange with 82.5 mm centering
• Port Size: G 1/2 BSP
• Drain Port: G 1/4 BSP
• Weight: 10.3 kg
• Dimensions:
  • Maximum Length (Lmax): 208 mm [8.19 in]
  • L1: 54.8 mm [2.157 in]
  • L2: 165 mm [6.50 in]

Features

• High Torque Capability: Provides high torque at relatively low speeds, making it ideal for heavy-duty applications .
• Smooth Operation: Ensures smooth operation at low speeds .
• Robust Design: Built to withstand rough operating conditions, such as high pressure and frequent reversals .
• Versatile Applications: Suitable for a wide range of industrial and mobile hydraulic systems .
• Tapered Roller Bearings: The output shaft is equipped with tapered roller bearings, making the motor suitable for absorbing static and dynamic radial loads .
• High Efficiency: Hydraulic and mechanical losses are minimized, resulting in high efficiency even at high pressures .

Applications

• Agricultural Machinery: For applications requiring high torque and reliability .
• Construction Equipment: Suitable for heavy-duty construction machinery .
• Material Handling: Ideal for forklifts and other lifting equipment .
• Forestry Equipment: Used in forestry machinery for heavy-duty operations .
• Lawn and Turf Equipment: Suitable for landscaping and maintenance machinery .
