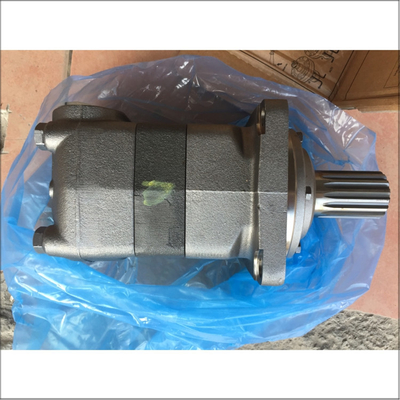

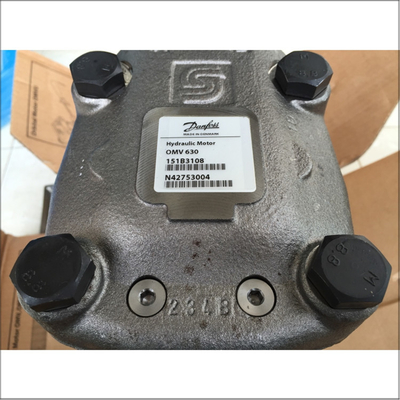

Danfoss OMV630 151B3108 Easy to Install and Maintain Hydraulic Motor for Industrial and Mobile in Demanding Environments

Technical Specifications

• Displacement: 629.1 cm³/rev
• Maximum Continuous Speed: 315 rpm
• Maximum Intermittent Speed: 380 rpm
• Maximum Continuous Torque: 1660 Nm
• Maximum Intermittent Torque: 1940 Nm
• Maximum Continuous Pressure Drop: 180 bar
• Maximum Intermittent Pressure Drop: 210 bar
• Maximum Peak Pressure Drop: 240 bar
• Maximum Continuous Flow: 200 l/min
• Maximum Intermittent Flow: 240 l/min

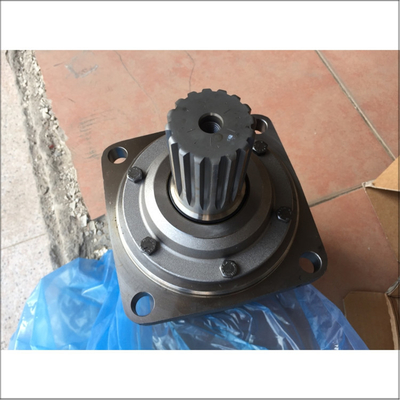

• Shaft Type: Splined 16T output shaft, 2.125" diameter
• Port Size: G 1 BSP
• Drain Port: G 1/4 BSP
• Weight: 34.9 kg
• Mounting Flange: 4-hole flange with 160 mm centering diameter

Features

• High Torque Capability: Provides high torque at relatively low speeds, making it ideal for heavy-duty applications.
• Smooth Operation: Ensures smooth operation at low speeds.
• Robust Design: Built to withstand rough operating conditions, such as high pressure and frequent reversals.
• Tapered Roller Bearings: The output shaft is equipped with tapered roller bearings, making the motor suitable for absorbing static and dynamic radial loads.
• High Efficiency: Hydraulic and mechanical losses are minimized, resulting in high efficiency even at high pressures.
• Versatile Applications: Suitable for a wide range of industrial and mobile hydraulic systems.

Applications

• Construction Equipment: Suitable for heavy-duty construction machinery.
• Agricultural Machinery: For applications requiring high torque and reliability.
• Material Handling: Ideal for forklifts and other lifting equipment.
• Forestry Equipment: Used in forestry machinery for heavy-duty operations.
• Lawn and Turf Equipment: Suitable for landscaping and maintenance machinery.

Accessories

• Seal Kit: 151B0129 (not included)
