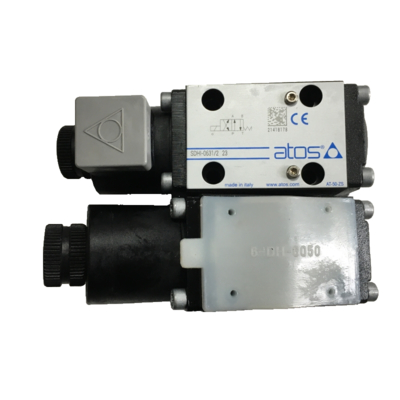

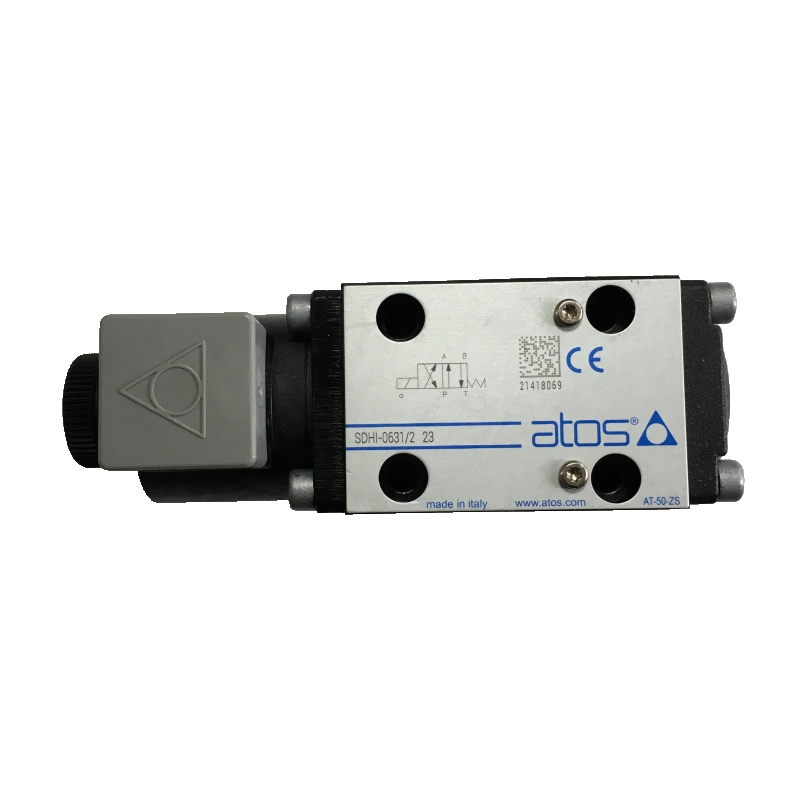

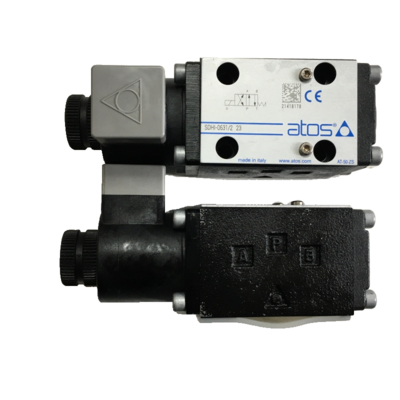

Product Description:
ATOS solenoid valve has the characteristics of fast response speed, compact structure and high reliability, and is suitable for a variety of fluid control scenarios. The following are its core advantages and precautions for use:
Core advantages
Fast response: The solenoid valve can be activated within a few milliseconds after being energized, and the response time of the pilot solenoid valve is controlled within tens of milliseconds, which significantly improves the automation efficiency.
Small size: The compact design saves installation space and is easy to integrate into various equipment.
Strong adaptability: It supports extreme working conditions such as vacuum, negative pressure, and zero pressure difference, and can handle corrosive media.
Intelligent control: Some models support analog signal input (such as 4-20mA) and digital communication protocols (such as CAN bus) to achieve precise control.
Reliable sealing: The valve core and valve seat design ensure zero leakage and extend service life.
Precautions for use
Voltage matching: The power supply voltage must be within the rated range (AC ±10%-15%, DC ±10%-10%) to avoid burning the coil.
Installation specification: The solenoid valve should be installed vertically, and the flow direction of the medium should be consistent with the marking on the valve body to avoid failure caused by reverse installation.
Medium cleaning: The pipeline should be flushed before use to remove impurities and dirt to prevent the valve core from being blocked.
Waterproof and dustproof: If the medium contains water or dust, a waterproof solenoid valve should be selected or protective measures should be taken.
Avoid long-term power supply: Avoid keeping the open or closed state for a long time when powered on to reduce coil loss.
Regular maintenance: Regularly check the sealing and circuit connection to ensure that there is no looseness or oxidation.
The specific model needs to be selected according to parameters such as flow rate and pressure. For example, the SHMP series of superimposed electromagnetic overflow valves needs to match the diameter (such as NG6 corresponding to 80 L/min flow) and set pressure (up to 350 bar).
| Medium |
Compressed air |
| Mounting Style |
Threaded |
| Nominal Size |
NG 6 |
| Media |
Water, Oil, Air |
| Sealing Material |
fluoroplastics |
| Locknut Torque |
80 - 90 lbf in. |
| Response Time |
<10 ms |
| Pressure Rating |
Up to 5000 PSI |
| Connectivity |
Analog, command value ±10 V |
| Max Temperature |
200 degrees Fahrenheit |
FAQ
Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3: What's your payment terms ?
A3: By T/T,LC AT SIGHT,100% full payment.
Q4: How long is your production lead time?
A4:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.
Q5: When can I get the quotation ?
A5: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
