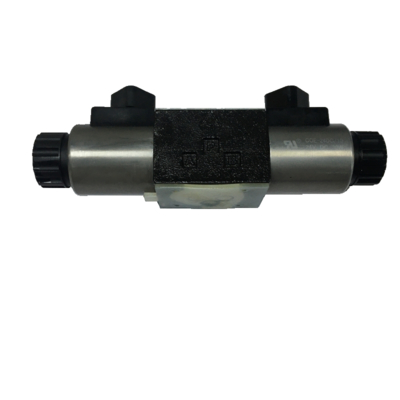

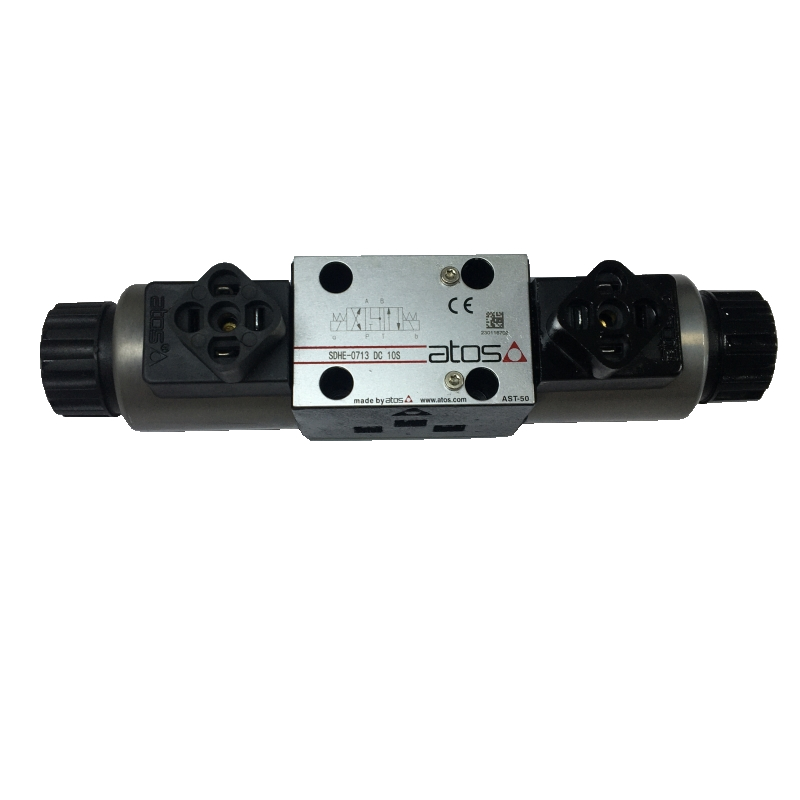

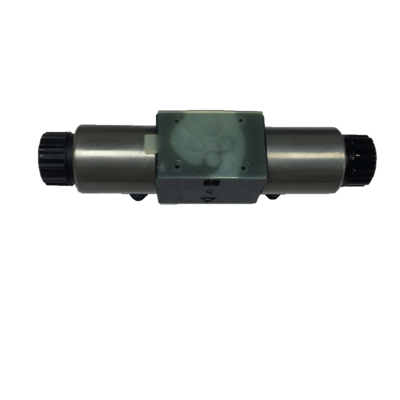

Product Description:
ATOS hydraulic reversing solenoid valve has the characteristics of fast response speed, high reliability and compact structure, and is suitable for special working conditions such as high pressure and explosion-proof. The following are its core advantages and precautions for use:
Core advantages
Fast response and high reliability
Adopting electromagnetic force drive, short reversing time (0.1-0.3 seconds for DC type), sensitive action and stable reset, suitable for high pressure difference environment.
Explosion-proof design (some models)
Specific models adopt explosion-proof structure, which can withstand internal explosion pressure without damage, and are suitable for scenes with explosive gases such as petroleum and chemical industries.
Compact structure and low leakage
The direct-acting design reduces the number of parts, has good sealing, and controllable internal leakage, which is suitable for high-pressure scenes.
Durability and convenient maintenance
The coil and valve body are separated for easy maintenance; H-level insulation (180℃) and IP65 protection level are suitable for outdoor and harsh working conditions.
Precautions for use
Voltage and medium requirements
The power supply voltage must be within the rated range (±10%) to avoid burning the coil
The medium must be filtered of impurities (if it contains granular materials, a filter must be installed)
Installation direction and maintenance
The solenoid valve must be installed vertically to avoid tilting and causing seal failure
Check the sealing and wiring status regularly to avoid long-term power-on damage to the coil
Explosion-proof environment restrictions
Explosion-proof models must strictly follow the explosion-proof grade requirements, and non-explosion-proof models cannot be used in explosive gas environments
Specific model parameters must be selected according to actual working conditions. For example, the maximum flow rate of the DLOH series is 12L/min, and the operating temperature range is -30℃ to +70℃.
| Working Pressure Max |
10 bar |
| Operation |
Manual |
| Warranty |
1 year |
| Filter |
Within NAS9 level |
| Relative Duty Factor |
Continuous; ED = 100% |
| Function |
Hydraulic Control |
| Connectivity |
Analog, command value 4 … 20 mA |
| Step Angle |
1.8 degrees |
| Valve Type |
2-way |
| Construction |
Spool valve |
