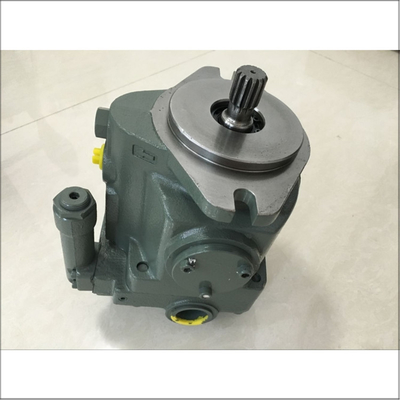

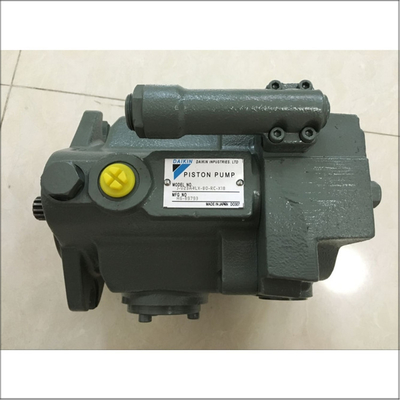

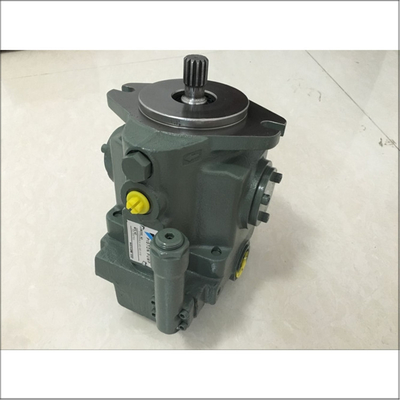

Product Description:
Daikin plunger pumps offer advantages such as high-pressure capability, low-noise design, high energy efficiency, and intelligent control. However, attention should be paid to oil cleanliness and maintenance intervals during use.
Advantages
High-Pressure Capacity: Maximum operating pressure reaches 40 MPa, making them suitable for high-pressure hydraulic systems.
Low-Noise Technology: Utilizing an adjustable swash plate angle design and a V-shaped plunger structure, noise levels remain below 60 decibels across the entire pressure range.
Energy Efficiency: Volumetric efficiency reaches 95%, power loss is reduced by 18%, and a smaller fuel tank can be configured (reducing capacity by 30%).
Intelligent Control: Integrated pressure compensation, load sensing, and electro-hydraulic proportional control modes deliver a response time of less than 50 ms.
Long-Life Design: Models released in 2025 utilize ceramic plunger assemblies with a service life of up to 12,000 hours.
Usage Precautions
Fluid Requirements: The oil viscosity must be maintained within the range of 10-400 mm²/s, and cleanliness must meet ISO 4406 18/16/13 standards.
Maintenance Interval: The standard maintenance interval is 5,000-8,000 hours. During installation, ensure that the oil inlet flow rate is less than 1.2 m/s.
| Type |
Mechanical |
| Durability |
High |
| Advantage |
Competitive |
| Standard |
International Standard |
| Product Type |
Hydraulic Pump |
| Quality |
High performance |
| Line Connection |
Flange port |
| Shaft End |
Cylindrical Ø 22.2 mm with fitting key |
| Maximum Setting |
5000 psi |
| Port Position |
Side Port |
