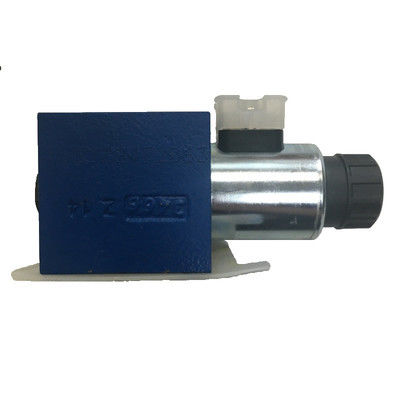

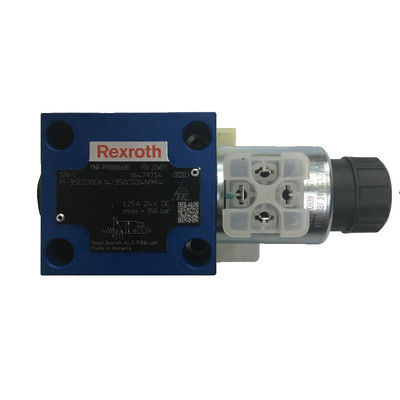

Fluid Flow Mechanical Hydraulic Pump Rexroth Direction Valve M-3SED10CK14 350CG24N9K4

Fluid Flow Mechanical Hydraulic Pump Rexroth Direction Valve M-3SED10CK14 350CG24N9K4
Fluid Flow Mechanical Hydraulic Pump Rexroth Direction Valve M-3SED10CK14 350CG24N9K4 Fluid Flow Mechanical Hydraulic Pump Rexroth Direction Valve M-3SED10CK14 350CG24N9K4

Large Image :  Fluid Flow Mechanical Hydraulic Pump Rexroth Direction Valve M-3SED10CK14 350CG24N9K4

Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: cc
Model Number: M-3SED10CK14 350CG24N9K4
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: RMB/1000-10000/PC
Packaging Details: wooden case/carton
Delivery Time: 3days
Payment Terms: T/T
Supply Ability: 10PCS/days
Contact Now

Fluid Flow Mechanical Hydraulic Pump Rexroth Direction Valve M-3SED10CK14 350CG24N9K4

Description
Brand: Rexroth Model: M-3SED10CK14 350CG24N9K4
Spool Symbol: Symbol CK Max. Pressure: 350
Productgroup ID: 9,10,11,12,13,14 Number Of Ports: 3
Type Of Actuation: With Solenoid Actuation Size: 10
Highlight:

Fluid Flow Mechanical Hydraulic Pump

,

M-3SED10CK14

,

350CG24N9K4

Fluid Flow Mechanical Hydraulic Pump Rexroth Direction Valve M-3SED10CK14 350CG24N9K4
Product Specifications
Attribute Value
Brand Rexroth
Model M-3SED10CK14 350CG24N9K4
Spool symbol Symbol CK
Max. pressure 350 bar
Productgroup ID 9,10,11,12,13,14
Number of ports 3
Type of actuation With solenoid actuation
Size 10
Product Description

The Bosch Rexroth M-3SED10CK1X/350CG24N9K4 (R900086685) is a high-performance industrial hydraulic valve designed for precise control of fluid flow in hydraulic systems. This direct-actuated directional seat valve features:

  • Solenoid actuation with robust design for subplate mounting
  • Size designation of 10 with maximum pressure of 350 bar
  • Spool symbol CK indicating normally closed configuration
  • NBR seals compatible with various hydraulic fluids (HL, HLP, HLPD, HVLP, HVLPD, HFC)
  • Electrical connection through Connector pole PE (EN standard)
  • Manual override capabilities for operation without energizing the solenoid

The valve's pressure-compensated internal spring mechanism ensures leak-free flow blocking in initial position, with smooth and reliable transitions between positions. Features include:

  • Wet-pin DC solenoids with detachable, 90-degree rotatable coils
  • AC voltage conversion capability using rectifier
  • Component Series X with optional inductive position switches
  • Proximity sensors for contactless valve positioning detection
  • Versatile configurations with additional plates (e.g., Plus plate)
Fluid Flow Mechanical Hydraulic Pump Rexroth Direction Valve M-3SED10CK14 350CG24N9K4 0
Additional Specifications
Max. flow 40
Type of connection Subplate mounting
Size_CETOP D05
Connection diagram ISO 4401-05-04-0-05
Supply voltage 24 VDC
Number of switching positions 2
Weight 2.33 kg
Seals NBR
Frequently Asked Questions
Q: Do you accept small orders?
A: Yes, we accept small orders. Please contact us for more details.
Q: Can you ship to my country?
A: Yes, we can ship worldwide. If you don't have your own forwarder, we can assist.
Q: What are your payment terms?
A: We accept T/T, LC at sight, or 100% full payment.
Q: What is your production lead time?
A: Lead time depends on product and order quantity, typically 15 days for MOQ quantities.
Q: When can I get a quotation?
A: We typically respond within 24 hours. For urgent requests, please call or note in your email.
