Rexroth Hydraulic Pump A10VSO140DRS/32R-VPB22U99 Silver Long Life High Power Low Energy Consumption Low Noise Fast Response

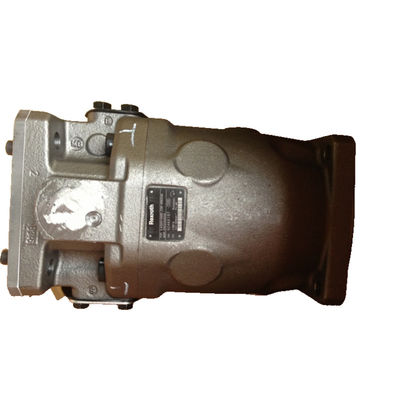

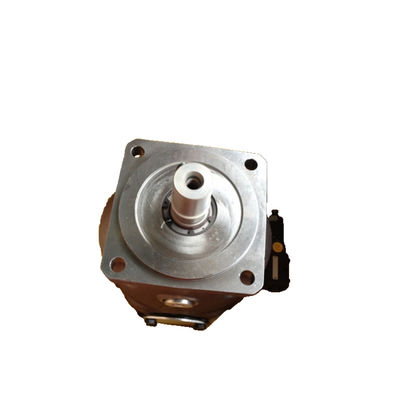

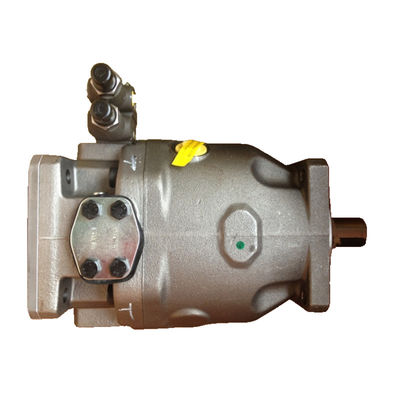

The Rexroth Hydraulic Pump A10VSO140DRS/32R-VPB22U99 is an axial piston variable displacement pump manufactured by Bosch Rexroth. Designed for open circuit hydraulic systems, it features:

• Swash plate structure for proportional flow rate to driving speed and displacement
• Stepless variable adjustment by adjusting swash plate inclination
• ISO standard mounting flanges and SAE metric flange connections
• Two case drain holes for optimal lubrication and heat dissipation
• Excellent suction performance with continuous operation up to 280 bar
• Peak pressures up to 350 bar with pressure transducer for real-time monitoring

Technical Specifications: Rated pressure: 280 bar | Peak pressure: 350 bar | Maximum flow rate: 252 L/min | Speed range: up to 1800 rpm | Weight: 73 kg

• Hydraulic presses for metal molding and stamping processes
• Injection molding machines for plastic molding operations
• CNC lathes and milling machines for tool feeding and spindle drive
• Excavators and loaders for hydraulic cylinder and motor power
• Cranes for boom telescoping and lifting mechanisms
• Ship hydraulic systems for rudder and anchor equipment
• Wind turbine hydraulic braking systems

• High power-to-weight ratio with compact design
• Low energy consumption through precise flow and pressure control
• Extended service life with high-quality materials and manufacturing
• Low operational noise for improved working environment
• High resistance to cavitation and pressure peaks
• Multiple control options including pressure and flow control
• Fast response time to system pressure and flow changes
• Through-axis structure for multi-loop system integration
• Flexible installation with various mounting options
