21Mpa Danfoss Hydraulic Motor Omp SAE Ports 315 OMPX31511186712 New Original

21Mpa Danfoss Hydraulic Motor Omp SAE Ports 315 OMPX31511186712 New Original
21Mpa Danfoss Hydraulic Motor Omp SAE Ports 315 OMPX31511186712 New Original 21Mpa Danfoss Hydraulic Motor Omp SAE Ports 315 OMPX31511186712 New Original 21Mpa Danfoss Hydraulic Motor Omp SAE Ports 315 OMPX31511186712 New Original

Large Image :  21Mpa Danfoss Hydraulic Motor Omp SAE Ports 315 OMPX31511186712 New Original

Product Details:
Place of Origin: Denmark
Brand Name: Danfoss
Certification: cc
Model Number: OMPX31511186712
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: RMB/100-10000/PC
Packaging Details: wooden case/carton
Delivery Time: 3 work days
Payment Terms: T/T
Supply Ability: 10PCS/days
Contact Now

21Mpa Danfoss Hydraulic Motor Omp SAE Ports 315 OMPX31511186712 New Original

Description
After Warranty Service: Video Technical Support Swept Volume: 19/34ml/r
Working Viscosity: 16 ~ 25 Mm²/s Working Pressure: 21Mpa
Weight: 2 - 30 Kg Showroom Location: None
Packing: Wood Package Ports: SAE, BSP, NPT
Highlight:

21Mpa danfoss hydraulic motor omp 315

,

danfoss hydraulic motor omp 315 SAE Ports

,

OMPX31511186712

21Mpa Danfoss Hydraulic Motor Omp SAE Ports 315 OMPX31511186712 New Original
Product Specifications
Attribute Value
After Warranty Service Video technical support
Swept Volume 19/34ml/r
Working Viscosity 16 ~ 25 mm²/s
Working Pressure 21Mpa
Weight 2 - 30 kg
Packing Wood Package
Ports SAE, BSP, NPT
Product Overview

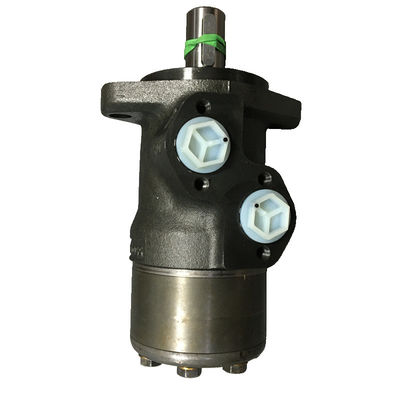

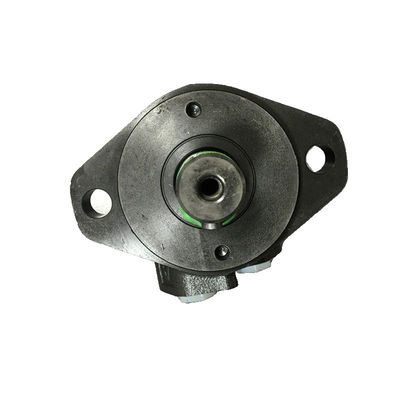

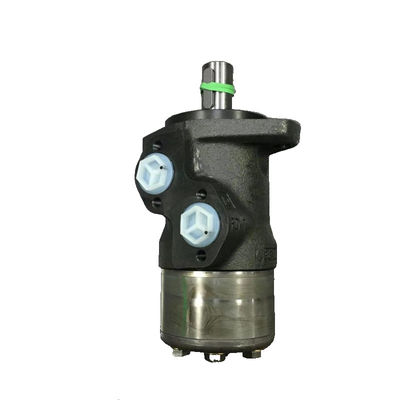

The Danfoss OMPX31511186712 Orbital Motor offers high efficiency and safety for demanding industrial applications.

Key Features and Advantages
  • High Efficiency: Cycloidal gear design with over 90% transmission efficiency and large output torque
  • Durable Construction: Integrated stator and rotor design with optimized linkage shaft angle for wear resistance
  • Compact Design: Small footprint (1/3~1/2 size of comparable motors) ideal for space-constrained applications
  • Environmental Adaptability: Corrosion-resistant with dust-proof seals for harsh conditions (-40℃~100℃)
  • Flexible Configuration: 1600+ models available with customizable output shafts, flanges, and ports
Technical Specifications
  • Maximum Speed: 3000 rpm
  • Fuel Type: Hydraulic Oil
  • Structure: Piston motor
  • Material: Standard industrial grade
Installation & Operation Guidelines
Installation Requirements
  • Calibrate coupling coaxiality to prevent bearing wear
  • Evenly pre-tighten flange bolts to avoid housing deformation
  • Fill hydraulic oil and bleed air before first start
Operation Monitoring
  • Maintain working pressure below 120% of rated value
  • Monitor oil temperature (recommended ≤80℃) and cleanliness (NAS level 8 or below)
Maintenance Schedule
  • Check shaft seal and dust cap every 500 hours
  • Drain oil and apply anti-rust oil for long-term storage
  • Avoid high-pressure water cleaning to prevent bearing damage
21Mpa Danfoss Hydraulic Motor Omp SAE Ports 315 OMPX31511186712 New Original 0
Frequently Asked Questions
Do you accept small orders?
Yes, we accept small orders. Please contact us for details.
Can you ship to my country?
Yes, we can arrange shipping worldwide. We can assist with logistics if needed.
What are your payment terms?
We accept T/T, LC at sight, and 100% full payment.
What is your production lead time?
Typically 15 days for MOQ quantities, depending on product and order size.
When can I get a quotation?
We provide quotes within 24 hours of inquiry. Urgent requests can be prioritized.
