Industrial Bosch Rexroth Hydraulic Motor 0510425009 AZPF-11-010RFB20MB

Industrial Bosch Rexroth Hydraulic Motor 0510425009 AZPF-11-010RFB20MB
Industrial Bosch Rexroth Hydraulic Motor 0510425009 AZPF-11-010RFB20MB Industrial Bosch Rexroth Hydraulic Motor 0510425009 AZPF-11-010RFB20MB Industrial Bosch Rexroth Hydraulic Motor 0510425009 AZPF-11-010RFB20MB Industrial Bosch Rexroth Hydraulic Motor 0510425009 AZPF-11-010RFB20MB

Large Image :  Industrial Bosch Rexroth Hydraulic Motor 0510425009 AZPF-11-010RFB20MB

Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: cc
Model Number: 0510425009
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: RMB/100-10000/PC
Packaging Details: wooden case/carton
Delivery Time: 3 work days
Payment Terms: T/T
Supply Ability: 10PCS/days
Contact Now

Industrial Bosch Rexroth Hydraulic Motor 0510425009 AZPF-11-010RFB20MB

Description
After Warranty Service: Video Technical Support Swept Volume: 19/34ml/r
Working Viscosity: 16 ~ 25 Mm²/s Working Pressure: 21Mpa
Weight: 2 - 30 Kg Showroom Location: None
Packing: Wood Package Ports: SAE, BSP, NPT
Highlight:

Industrial Hydraulic Motor

,

Bosch Hydraulic Motor

,

0510425009

Industrial Bosch Rexroth Hydraulic Motor 0510425009 AZPF-11-010RFB20MB
Product Overview

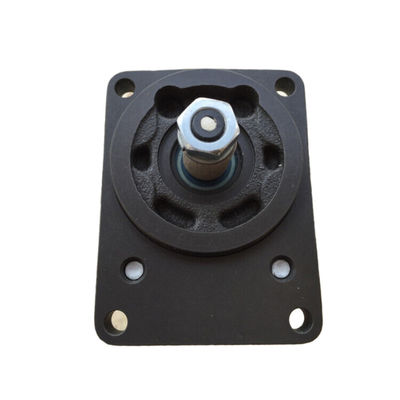

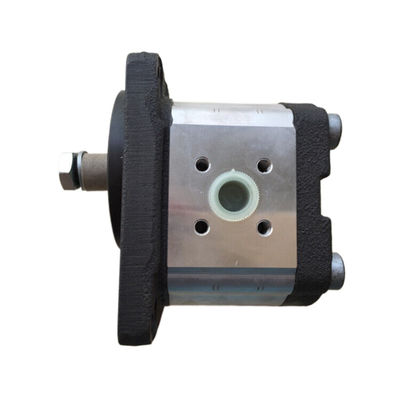

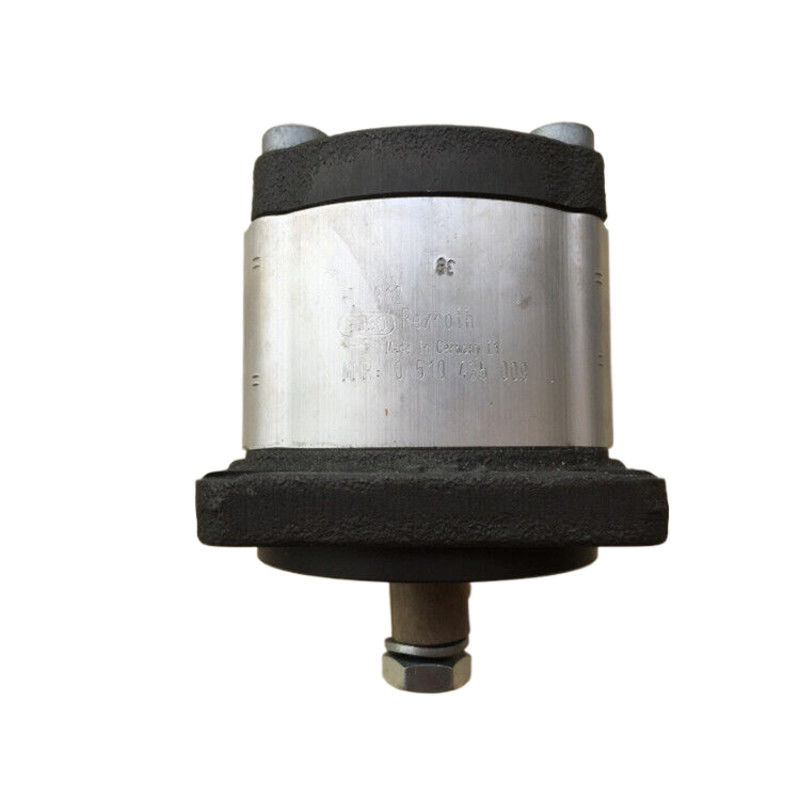

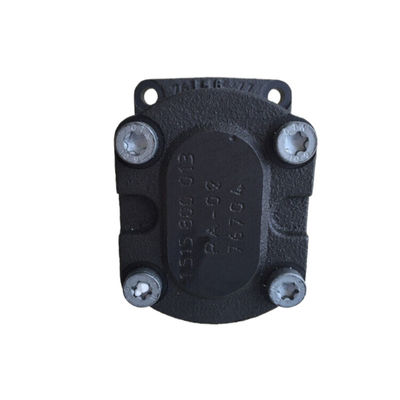

The Bosch Rexroth 0510425009, also known as the AZPF-11-010RFB20MB, is a high-performance external gear pump designed for various industrial applications. This pump is part of the AZPF series, known for its reliability and efficiency in demanding environments.

Technical Specifications
Attribute Value
Model AZPF-11-010RFB20MB
Displacement 10 cm³ per revolution
Maximum Operating Pressure 250 bar
Rotation Clockwise
Shaft Configuration Conical 1:5
Flange Type Rectangular flange with a diameter of 36.47 mm (M8)
Dimensions 84.1 mm x 87 mm x 112 mm
Weight 3.1 kg
Maximum Speed 4000 RPM
Working Pressure 21Mpa
Working Viscosity 16 ~ 25 mm²/s
Swept Volume 19/34ml/r
Packing Wood Package
Ports SAE, BSP, NPT
Key Features
  • High Efficiency: Converts mechanical energy into hydraulic energy with minimal loss
  • Robust Construction: Designed for long-term reliability in demanding industrial environments
  • Low Noise Operation: Features low working noise and low pulse flow
  • Extended Service Life: Utilizes sliding bearings and gap sealing
  • Wide Operating Range: Suitable for various viscosities and speeds
Applications
  • Hydraulic systems requiring constant displacement and high pressure
  • Material handling equipment (forklifts, pallet trucks)
  • Construction machinery (excavators, loaders)
  • Agricultural equipment (tractors, combines)
Industrial Bosch Rexroth Hydraulic Motor 0510425009 AZPF-11-010RFB20MB 0
Frequently Asked Questions
Do you accept small orders?
Yes, we accept small orders. Please contact us for details.
Can you send products to my country?
Yes, we can ship internationally. We can arrange shipping if you don't have your own forwarder.
What are your payment terms?
We accept T/T, LC at sight, or 100% full payment.
How long is your production lead time?
Lead time depends on product and order quantity, typically 15 days for MOQ quantities.
When can I get the quotation?
We typically provide quotes within 24 hours. Urgent requests can be prioritized.
After Warranty Service: Video technical support available
Quality: Excellent
Fuel: Hydraulic Oil
Material: Standard
Structure: Piston motor
