Siemens Pressure Switch 3VA2463-5HL32-0AA0 SENTRON For Electrical Systems 162W

Siemens Pressure Switch 3VA2463-5HL32-0AA0 SENTRON For Electrical Systems 162W
Siemens Pressure Switch 3VA2463-5HL32-0AA0 SENTRON For Electrical Systems 162W Siemens Pressure Switch 3VA2463-5HL32-0AA0 SENTRON For Electrical Systems 162W Siemens Pressure Switch 3VA2463-5HL32-0AA0 SENTRON For Electrical Systems 162W Siemens Pressure Switch 3VA2463-5HL32-0AA0 SENTRON For Electrical Systems 162W Siemens Pressure Switch 3VA2463-5HL32-0AA0 SENTRON For Electrical Systems 162W

Large Image :  Siemens Pressure Switch 3VA2463-5HL32-0AA0 SENTRON For Electrical Systems 162W

Product Details:
Place of Origin: Germany
Brand Name: Siemens
Certification: cc
Model Number: 3VA2463-5HL32-0AA0
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: RMB/100-10000/PC
Packaging Details: wooden case/carton
Delivery Time: 3 work days
Payment Terms: T/T
Supply Ability: 10PCS/days
Contact Now

Siemens Pressure Switch 3VA2463-5HL32-0AA0 SENTRON For Electrical Systems 162W

Description
Process Connection: M20X1.5, G1/4, 1/4NPT Pressure: Low Pressure
Pressure Sensing Element: Diaphragm Media Compatibility: Air, Gas, Water, Oil
Type: Mechanical Condition: 100% NEW
Comprehensive Accuracy: ±0.5%FS Package: Box
Highlight:

Siemens Pressure Switch

,

Pressure Switch 162W

,

3VA2463-5HL32-0AA0

Siemens Pressure Switch 3VA2463-5HL32-0AA0 SENTRON For Electrical Systems 162W
Product Attributes
Process Connection M20X1.5, G1/4, 1/4NPT
Pressure Low Pressure
Pressure sensing element Diaphragm
Media compatibility Air, gas, water, oil
Type Mechanical
Condition 100% NEW
Comprehensive Accuracy ±0.5%FS
Package Box
Product Description

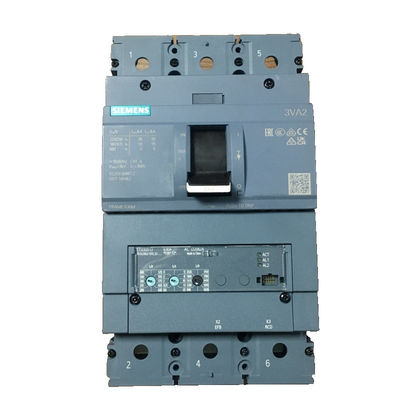

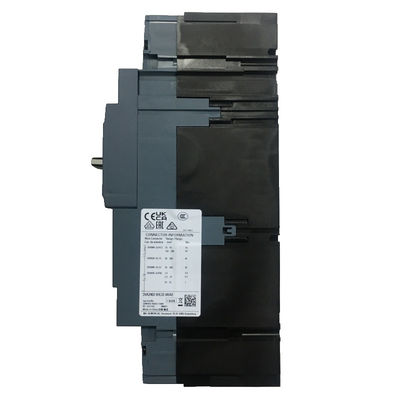

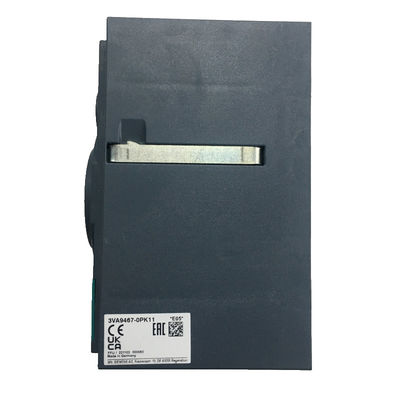

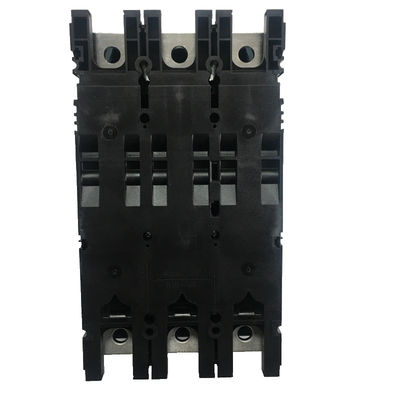

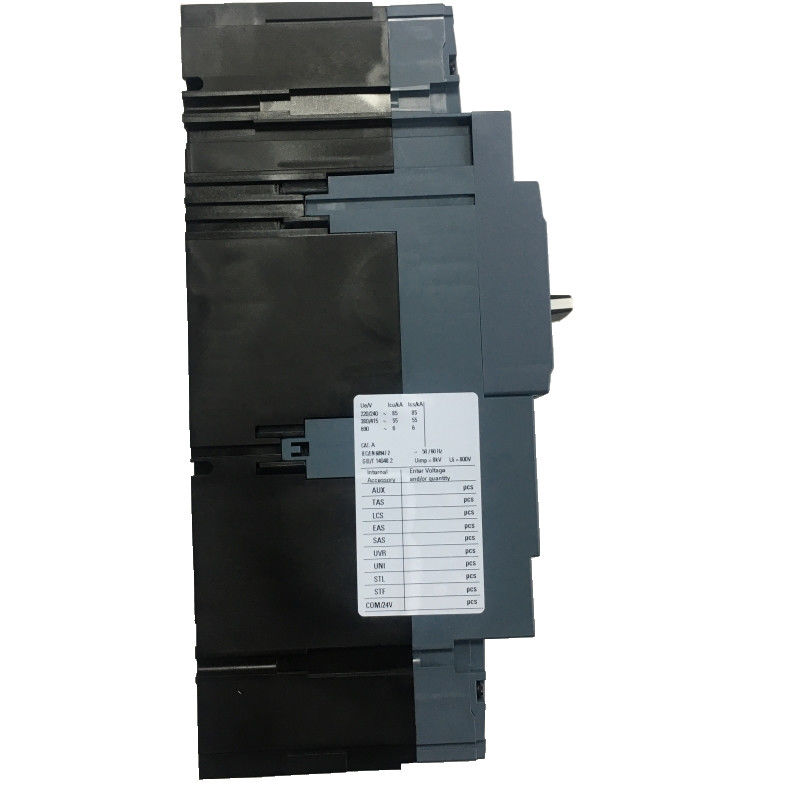

The Siemens 3VA2463-5HL32-0AA0 is a high-performance molded case circuit breaker designed for reliable protection in electrical systems. This circuit breaker is part of the SENTRON series, known for its robust construction and advanced protection features.

Key Specifications
Model: 3VA2463-5HL32-0AA0
Brand: Siemens
Series: SENTRON
Type: Molded Case Circuit Breaker
Frame Size: IEC 630
Breaking Capacity Class: M
Rated Insulation Voltage: 800 V
Rated Operating Voltage: 690 V (AC 50/60 Hz)
Pole Configuration: 3-pole
Rated Continuous Current (In): 630 A
Overload Protection Range (Ir): 250 A to 630 A
Short-Circuit Protection Range (Ii): 1.5 to 9 times In
Short-Circuit Breaking Capacity (Icu):
- 240 V: 85 kA
- 415 V: 55 kA
- 440 V: 55 kA
- 500 V: 36 kA
- 690 V: 6 kA
Operating Short-Circuit Current Breaking Capacity (Ics): Same as Icu
Short-Circuit Current Making Capacity (Icm):
- 240 V: 187 kA
- 415 V: 121 kA
- 440 V: 121 kA
- 500 V: 75.6 kA
- 690 V: 9 kA
Mechanical Service Life: 20,000 switching cycles
Electrical Endurance:
- 380/415 V: 5,000 switching cycles
- 690 V: 3,500 switching cycles
Power Loss:
- Maximum: 162 W
- Per Pole at Rated Current: 54 W
Dimensions:
- Height: 248 mm (9.76 in)
- Width: 138 mm (5.43 in)
- Depth: 110 mm (4.33 in)
Weight: 5.098 kg
Protection Class: IP40 on the front
Ambient Temperature:
- During Operation: -25°C to 70°C
- During Storage: -40°C to 80°C
Features and Benefits
  • High Precision: Ensures precise protection against overloads and short circuits.
  • Robust Construction: Designed for long-term reliability in demanding industrial environments.
  • Wide Operating Range: Suitable for a wide range of operating conditions, including different temperatures and voltages.
  • Compliance with Standards: Meets international standards for safety and environmental compliance.
  • Line Protection: Provides reliable protection for electrical circuits in industrial applications.
Applications

The Siemens 3VA2463-5HL32-0AA0 is suitable for a variety of industrial applications, including:

  • Electrical Systems: For precise control and protection in electrical circuits.
  • Material Handling Equipment: Such as forklifts and pallet trucks.
