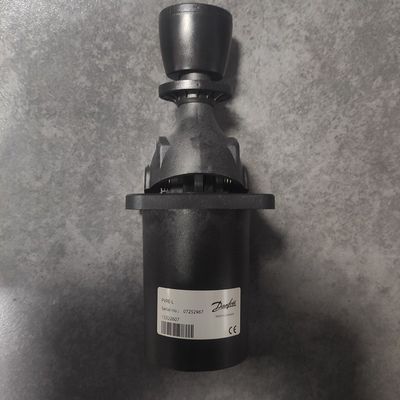

Elevate Your Operations with the Danfoss 155U2607 Hydraulic Joystick Control Lever for Industrial and Mobile Applications

The Danfoss 155U2607 is a high-performance hydraulic joystick control lever designed for precise and reliable operation in various industrial and mobile applications. This joystick is part of the PVREL series, known for its robust construction and advanced control features.

• Material: Weather-resistant plastic
• Weight: Approximately 0.55 kg
• Voltage Range: 11-30 V DC
• Current Consumption: Less than 80 mA
• Output Voltage: 0.25-0.75 UDC
• Neutral Voltage: 0.5 UDC
• Protection Class: IP 67 (above mounting flange), IP 65 (below mounting flange with bottom cover)
• Operating Temperature: -30°C to +60°C
• Spring-centered with neutral lock
• Neutral position switch
• Robust construction and low operating forces

The Danfoss 155U2607 is widely used in various industries and applications, including:

• Agricultural Machinery: For controlling hydraulic functions in tractors and other equipment
• Mobile Machinery: In earthmoving equipment, cranes, and aerial platforms
• Industrial Equipment: For precise control in hydraulic systems

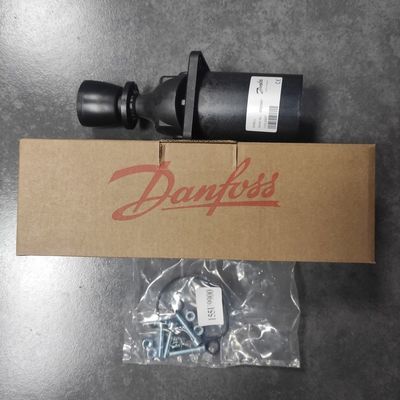

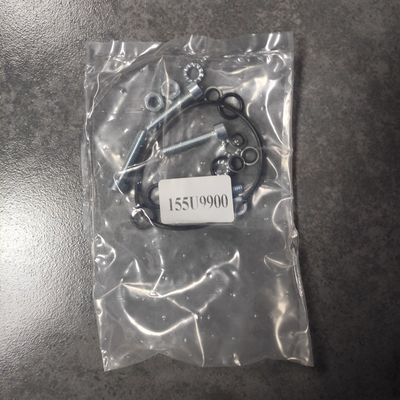

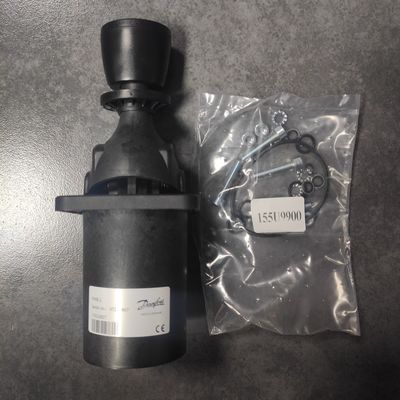

• 155U9900 (O-Rings & Mounting kit for PVREL)
• 633B0048 O-Ring 1 PCS
• 633B1461 O-Ring 4 PCS
• 633B9008 Bonded-Seal 6,70 4 PCS
• 681x1986 Screw M6 x 30CS 4 PCS
• 681x8142 Nut 6,05 4 PCS
• 684x9142 Lock washer 4 PCS
