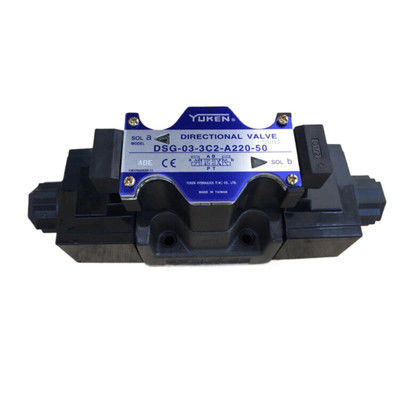

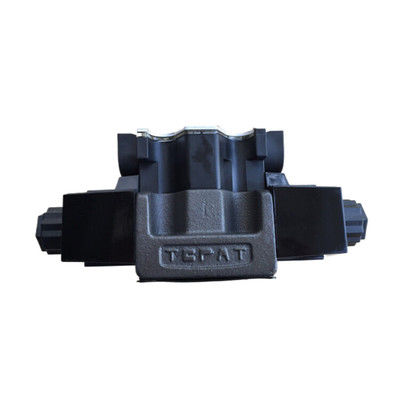

60hz Black Directional Control Valve Yuken DSG-03-3C2-A220-50-50HZ

60hz Black Directional Control Valve Yuken DSG-03-3C2-A220-50-50HZ
60hz Black Directional Control Valve Yuken DSG-03-3C2-A220-50-50HZ 60hz Black Directional Control Valve Yuken DSG-03-3C2-A220-50-50HZ

Large Image :  60hz Black Directional Control Valve Yuken DSG-03-3C2-A220-50-50HZ

Product Details:
Place of Origin: Japan
Brand Name: Yuken
Certification: cc
Model Number: DSG-03-3C2-A220-50-50HZ
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: RMB/1000-10000/PC
Packaging Details: wooden case/carton
Delivery Time: 3days
Payment Terms: T/T
Supply Ability: 10PCS/days
Contact Now

60hz Black Directional Control Valve Yuken DSG-03-3C2-A220-50-50HZ

Description
Brand: Yuken Model: DSG-03-3C2-A220-50-50HZ
Electric Souree: AC CoilType: A200
Frequency: 60 Voltage: 220
Inrush: 2.52 Holding: 0.38
Highlight:

60hz directional control valve yuken

,

black directional control valve yuken

,

DSG-03-3C2-A220-50-50HZ

Yuken DSG-03-3C2-A220-50-50HZ Directional Control Valve (60Hz, Black)
Product Overview

The Yuken DSG-03-3C2-A220-50-50HZ is a high-performance directional control valve featuring a wet-type solenoid design for low noise operation and extended service life. This 60Hz model operates at 220V AC with a robust construction that resists contamination for stable performance.

Technical Specifications
Attribute Value
Brand Yuken
Model DSG-03-3C2-A220-50-50HZ
Electric Source AC
Coil Type A200
Frequency 60Hz
Voltage 220V
Inrush Current 2.52A
Holding Current 0.38A
Temperature Range 0-100°C
Working Pressure 0-10 bar
Valve Action Double Acting
Mounting Type Inline
Seal Material PTFE
Key Features
  • High pressure and high flow capacity with unique design concept
  • Wet-type solenoids ensure low noise operation and long service life
  • Prevents oil leakage with contained system design
  • Strong magnet and spring force for contamination resistance
  • Stable operation in demanding industrial environments
  • CE/UL/CSA certified options available
Available Options
  • Push Button with Lock Nut: Allows manual changeover of spool with locking capability
  • Plug-in Connector with Solenoid Indicator Light: Visual confirmation of solenoid status
  • M8 Mounting Bolts: Heavy-duty alternative to standard M6 screws
60hz Black Directional Control Valve Yuken DSG-03-3C2-A220-50-50HZ 0
Frequently Asked Questions
Do you accept small orders?

Yes, we accept small orders to accommodate our clients' needs. Please contact us for details.

Can you ship to my country?

Yes, we can arrange shipping worldwide. If you don't have your own forwarder, we can assist with logistics.

What are your payment terms?

We accept T/T, LC at sight, or 100% full payment in advance.

What is your production lead time?

Production time varies by product and quantity. Typical lead time for MOQ quantities is 15 days.

When can I expect a quotation?

We typically provide quotations within 24 hours of receiving your inquiry. Urgent requests can be prioritized.
