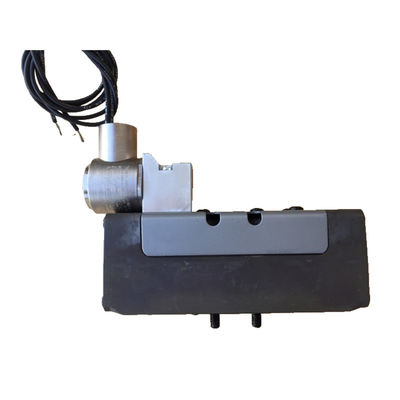

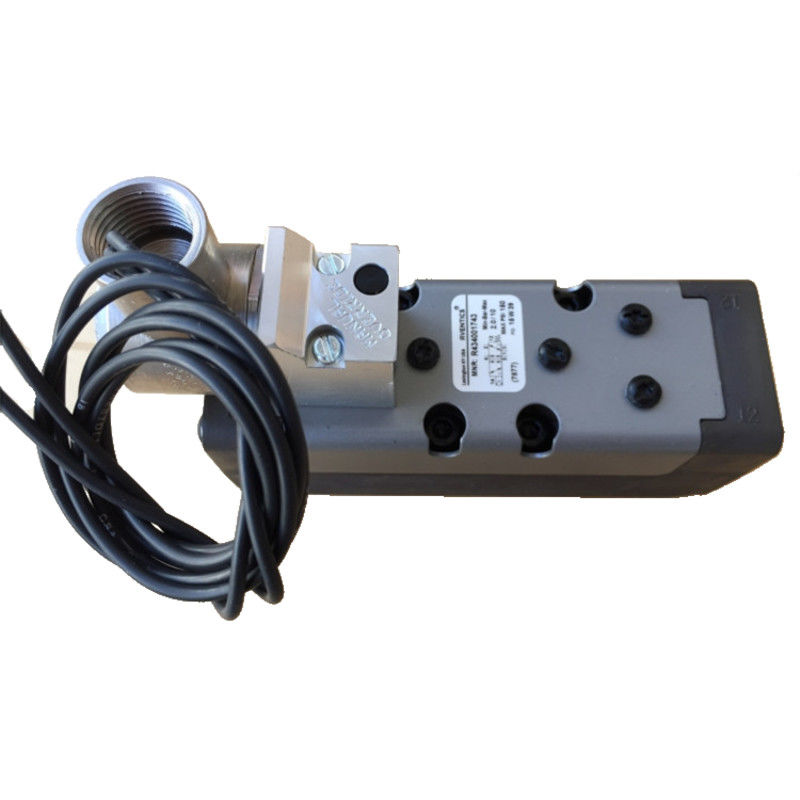

R434001743 Pneumatic Components Valve AVENTICS High Safety New Original

R434001743 Pneumatic Components Valve AVENTICS High Safety New Original
R434001743 Pneumatic Components Valve AVENTICS High Safety New Original R434001743 Pneumatic Components Valve AVENTICS High Safety New Original

Large Image :  R434001743 Pneumatic Components Valve AVENTICS High Safety New Original

Product Details:
Place of Origin: Germany
Brand Name: AVENTICS
Certification: cc
Model Number: R434001743
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: RMB/100-10000/PC
Packaging Details: wooden case/carton
Delivery Time: 3 work days
Payment Terms: T/T
Supply Ability: 10PCS/days
Contact Now

R434001743 Pneumatic Components Valve AVENTICS High Safety New Original

Description
Actuation Type: Single-acting Max Pressure: 10.20Kgf/cm²
Max Force: 5000 N Item: AC/AD
Pressure Range: 0-150 PSI Fix Type: With/without Spring
Mounting Type: Threaded Material: Metal
Highlight:

Pneumatic Components AVENTICS

,

Pneumatic Components 150PSI

,

R434001743

R434001743 Pneumatic Components Valve AVENTICS High Safety New Original
Product Specifications
Attribute Value
Actuation Type Single-acting
Max Pressure 10.20Kgf/cm²
Max Force 5000 N
Item AC/AD
Pressure Range 0-150 PSI
Fix Type with/without spring
Mounting Type Threaded
Material Metal
Product Overview

The AVENTICS R434001743 Pneumatic Valve offers long life and high safety performance, designed for demanding industrial applications.

Key Features and Benefits
Structural Safety and Efficient Response
  • Pneumatic drive design ensures simple, lightweight structure with easy installation and maintenance
  • Air medium eliminates combustion risks, ideal for chemical and metallurgical applications with strict explosion-proof requirements
  • Actuator speed typically under 1 m/s, offering superior response compared to hydraulic and electrical systems
Long Life and Economic Operation
  • Standard lifespan exceeds 30 million cycles (high-quality models reach 200 million cycles)
  • Air medium requires no additional cost with environmentally friendly exhaust treatment
  • Pressure compensation and centralized air supply support intermittent high-speed actions while reducing energy consumption
Precise Control and Environmental Adaptability
  • Dual-guide structure and multi-spring actuator provide ±1% adjustment accuracy
  • Wide temperature resistance range (-25 to 60℃) with optional protective measures for extreme conditions
  • Suitable for pressure, flow and direction control of gas, liquid, and steam media
Installation and Usage Guidelines
Installation Specifications
  • Prefer vertical installation; inclinations over 5° require additional support
  • For pipelines exceeding 2 meters height, install an operating platform for maintenance access
  • Deeply buried valves require extension rods; secure operating mechanisms firmly when ≥1.5 meters from ground
Operation and Debugging
  • Thoroughly flush pipelines before first use to remove welding slag and impurities
  • During debugging, fully open valve to flush residual foreign matter
  • Follow clockwise closing principle; control actuator revolutions between 200-600
  • Recommended opening/closing torque for large-diameter valves: ≤240 N*m
Maintenance and Safety
  • Regularly inspect seal wear and valve core flexibility
  • In high temperature/pollution environments, reduce lubrication cycle to 300 hours using high-temperature lubricants
  • Never service explosion-proof products with power on; verify sealing and explosion-proof performance after repair
Additional Technical Information
Usage Air compression and release
Type Cylinder
Size Various sizes available
Tube Material PU, nylon, polyurethane
Temperature Range 0-60 degrees Celsius
Pressure 0~10.20Kgf/cm²
Warranty 1 year
R434001743 Pneumatic Components Valve AVENTICS High Safety New Original 0
Frequently Asked Questions
Q: Do you accept small orders?

A: Yes, we accept small orders. Please contact us for details.

Q: Can you ship to my country?

A: Yes, we can ship worldwide. If you don't have a forwarder, we can assist.

Q: What are your payment terms?

A: We accept T/T, LC at sight, or 100% full payment.

Q: What is your production lead time?

A: Typically 15 days for MOQ quantities, depending on product and order size.

Q: When can I get a quotation?

A: We usually provide quotes within 24 hours. Urgent requests can be prioritized.
