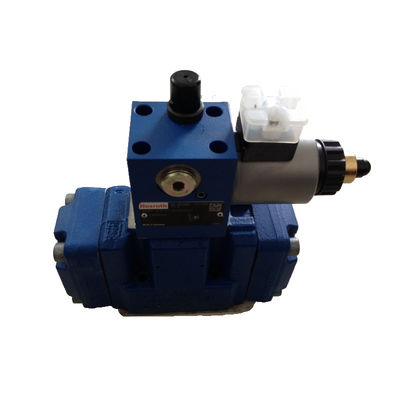

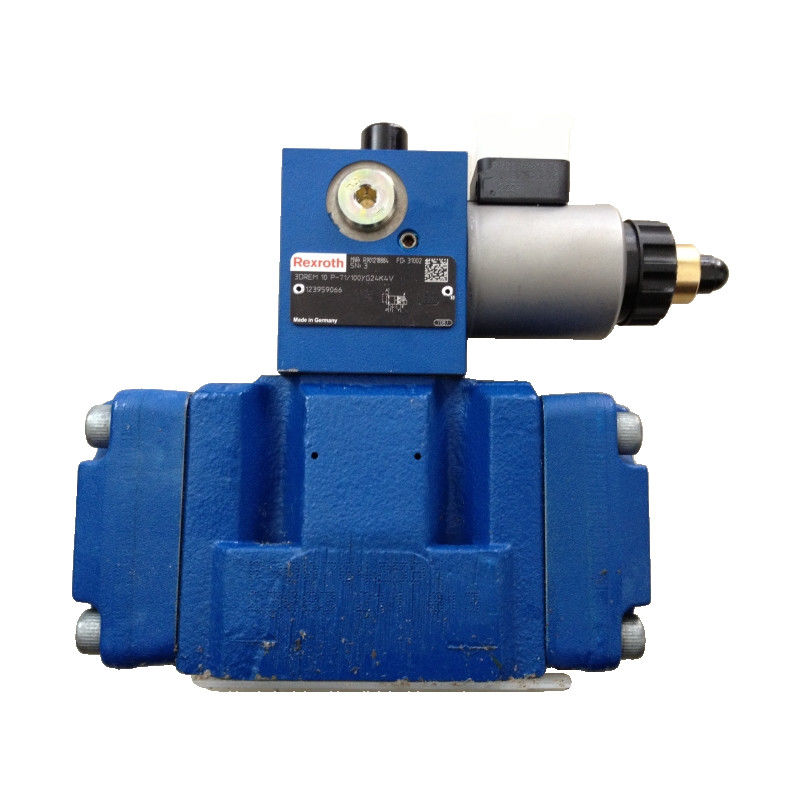

Rexroth 3DREM10P-71 100YG24K4V Pressure Reducing Valve High Precision Stainless Steel

Rexroth 3DREM10P-71 100YG24K4V Pressure Reducing Valve High Precision Stainless Steel
Rexroth 3DREM10P-71 100YG24K4V Pressure Reducing Valve High Precision Stainless Steel Rexroth 3DREM10P-71 100YG24K4V Pressure Reducing Valve High Precision Stainless Steel

Large Image :  Rexroth 3DREM10P-71 100YG24K4V Pressure Reducing Valve High Precision Stainless Steel

Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: cc
Model Number: 3DREM10P-71 100YG24K4V
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: RMB/100-10000/PC
Packaging Details: wooden case/carton
Delivery Time: 3 work days
Payment Terms: T/T
Supply Ability: 10PCS/days
Contact Now

Rexroth 3DREM10P-71 100YG24K4V Pressure Reducing Valve High Precision Stainless Steel

Description
Mounting Type: Inline Materail Body: Brass
Warranty: 1 Year Material: Stainless Steel
Package: Wooden Box Type: Proportional
Structure: Control Port Size: 6
Highlight:

rexroth rzgo-ters-ps-033-100-54

,

rexroth proportional valve

,

stainless steel rzgo-ters-ps-033-100-54

Rexroth 3DREM10P-71 100YG24K4V Pressure Reducing Valve High Precision Stainless Steel
Product Specifications
Attribute Value
Mounting Type Inline
Material Body Brass
Warranty 1 year
Material Stainless steel
Package Wooden Box
Type Proportional
Structure Control
Port Size 6
Seal Material Viton
Max Flow 4
Hysteresis 2%
Core Tube Stainless steel
Media Oil
Pressure Rating Up to 5000 psi
Product Features
High-precision adjustment and control capabilities
  • Pilot pressure reducing structure with main valve and pilot valve working together for precise pressure control
  • Proportional pressure reducing valve supports linearized command value pressure characteristics (±1% adjustment accuracy)
  • Integrated proportional solenoid and pressure sensing technology for fast response
  • Supports dynamic adjustment of output pressure and flow for complex hydraulic systems
Durability and adaptability
  • Cast iron valve body with 315 bar pressure resistance and -30~90℃ temperature range
  • Seals compatible with hydraulic oil, water and other media
  • Suitable for harsh working conditions including mining and metallurgy
  • Low noise design (<20 decibels) with optimized internal flow channels
Energy saving and intelligent functions
  • Continuous pressure adjustment through current signal (30% energy savings vs traditional valves)
  • Integrated electronic components (OBE) for improved control efficiency
  • Remote control interface support for automated production lines and IoT integration
Safety protection mechanism
  • Built-in overload protection with automatic pressure release
  • Complies with explosion-proof requirements for hazardous environments
  • Flameproof design suitable for chemical industry and energy applications
Installation & Usage Guidelines
Installation specifications
  • Install upright on horizontal pipelines to avoid uneven valve core force
  • Install ≥25μm filter at inlet for water with impurities
  • Install safety pressure relief valve within 4 meters downstream to prevent water hammer damage
Commissioning and operation
  • Thoroughly flush pipeline before commissioning to remove foreign matter
  • Increase pressure gradually during adjustment (avoid instantaneous high-pressure shock)
  • Never exceed rated pressure value (315 bar) marked on nameplate
Maintenance and troubleshooting
  • Check valve core wear and seal aging every 500 hours (300 hours in high temperature/pollution environments)
  • Use high temperature resistant lubricating oil in extreme conditions
  • Regularly calibrate proportional pressure reducing valve (recalibrate if deviation > ±2%)
Safety redundancy design
  • Configure bypass loop in critical systems for quick failure recovery
  • Regularly check synchronization between sensors and actuators in automatic control mode
Rexroth 3DREM10P-71 100YG24K4V Pressure Reducing Valve High Precision Stainless Steel 0
Frequently Asked Questions
Q: Do you accept small orders?
A: Yes, we accept small orders. Please contact us for details.
Q: Can you ship to my country?
A: Yes, we can ship internationally. If you don't have a forwarder, we can assist.
Q: What are your payment terms?
A: We accept T/T, LC at sight, or 100% full payment.
Q: What is your production lead time?
A: Typically 15 days for MOQ quantities, depending on product and order size.
Q: When can I get a quotation?
A: We usually provide quotes within 24 hours. Please indicate urgency in your inquiry.
