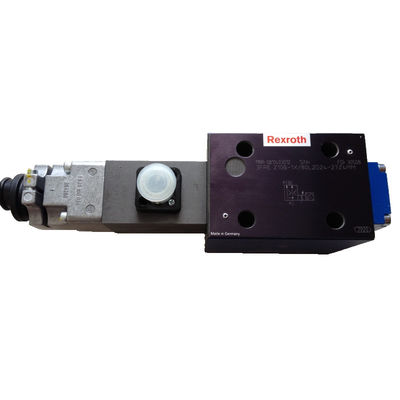

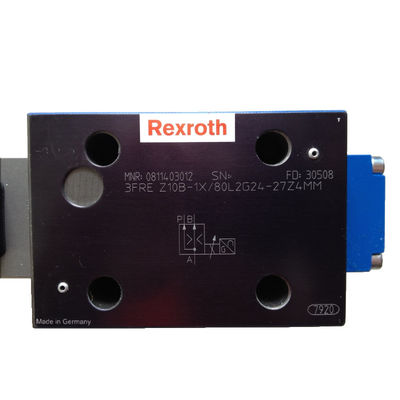

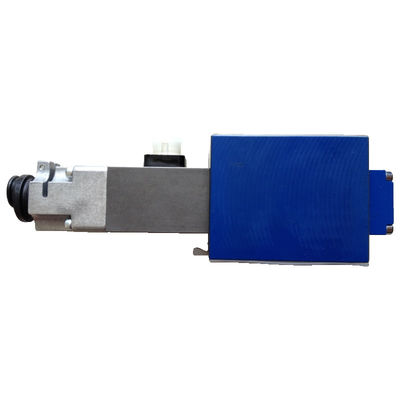

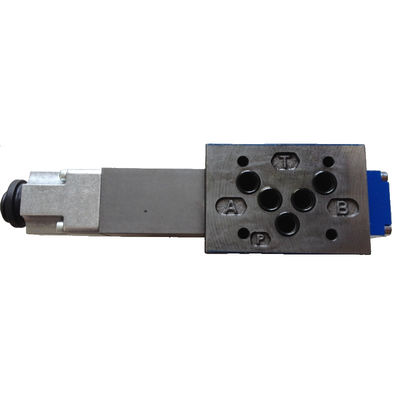

Rexroth Proportional Valve 3FREZ10B-1X/80L2G24-27Z4MM Blue Wide Applicability Flexible Installation Method

Rexroth Proportional Valve 3FREZ10B-1X/80L2G24-27Z4MM Blue Wide Applicability Flexible Installation Method
Rexroth Proportional Valve 3FREZ10B-1X/80L2G24-27Z4MM Blue Wide Applicability Flexible Installation Method Rexroth Proportional Valve 3FREZ10B-1X/80L2G24-27Z4MM Blue Wide Applicability Flexible Installation Method Rexroth Proportional Valve 3FREZ10B-1X/80L2G24-27Z4MM Blue Wide Applicability Flexible Installation Method Rexroth Proportional Valve 3FREZ10B-1X/80L2G24-27Z4MM Blue Wide Applicability Flexible Installation Method

Large Image :  Rexroth Proportional Valve 3FREZ10B-1X/80L2G24-27Z4MM Blue Wide Applicability Flexible Installation Method

Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: CC
Model Number: 3FREZ10B-1X/80L2G24-27Z4MM
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: RMB/100-1000/PC
Packaging Details: Wooden Boxes
Delivery Time: 3Days
Payment Terms: T/T
Supply Ability: 10PC/DAY
Contact Now

Rexroth Proportional Valve 3FREZ10B-1X/80L2G24-27Z4MM Blue Wide Applicability Flexible Installation Method

Description
Temperature Of Media: Medium Temperature Control Method: Proportional
Seal Material: NBR Response Time: 10 Ms
Maximum Working Pressure: 315bar Weight: 18.5
Highlight:

rexroth proportional valve

,

rexroth rzgo-ters-ps-033-100-54

,

blue rzgo-ters-ps-033-100-54

Rexroth Proportional Valve 3FREZ10B-1X/80L2G24-27Z4MM
High-performance proportional flow control valve with blue housing, wide applicability, and flexible installation method.
Technical Specifications
Attribute Value
Temperature Of Media Medium Temperature
Control Method Proportional
Seal Material NBR
Response Time 10 ms
Maximum Working Pressure 315bar
Weight 18.5 kg
Product Description
The Rexroth Proportional Valve 3FREZ10B-1X/80L2G24-27Z4MM is a high-performance proportional flow control valve produced by Bosch Rexroth. This direct-acting flow control valve features position feedback, adjusted by an inductive displacement sensor and external electronic control unit for precise hydraulic system flow control.
Key Specifications: Maximum working pressure: 250 bar. Rated volume flow: 80 l/min (at 8 bar pressure difference). Solenoid type: Maximum excitation current is 2.7 A. Electrical connection: Plug in accordance with DIN 43650-AM2 standard.
Application Areas
  • Hydraulic systems for precise flow control of hydraulic oil
  • CNC machine tools for accurate feed speed and spindle control
  • Aerospace equipment hydraulic system stabilization
  • Steel mill hydraulic machinery (rolling mills, shearing machines)
  • Plastic processing equipment (injection molding, blow molding machines)
  • Paper mill hydraulic equipment for production continuity
  • Oilfield equipment (drilling, well repair, fracturing operations)
Product Advantages
  • High-precision control: Less than 1% hysteresis for reliable operation
  • Fast response: 10 ms response time for real-time control
  • Wide applicability: Works with hydraulic oils of 20-800 mm²/s viscosity
  • High reliability: Bosch Rexroth quality with strict testing standards
  • Flexible installation: ISO 4401 standard plate mounting
  • Multiple control options: Adjustable characteristic curves and gain
  • Environmental adaptability: Operates from -20°C to +50°C
Product Identification

Brand: Rexroth

Model: 3FREZ10B-1X/80L2G24-27Z4MM

Color: Blue

Origin: Germany

Material: Cast Iron

Power Source: Electric

Rexroth Proportional Valve 3FREZ10B-1X/80L2G24-27Z4MM Blue Wide Applicability Flexible Installation Method 0
Frequently Asked Questions
Do you accept small orders?
Yes, we accept small orders. Please contact us for details.
Can you ship to my country?
Yes, we can arrange shipping worldwide. We can assist with logistics if needed.
What are your payment terms?
We accept T/T, LC at sight, and 100% full payment.
What is your production lead time?
Standard lead time is 15 days for MOQ quantities, varying by product and order size.
When can I expect a quotation?
We typically respond within 24 hours. For urgent requests, please indicate in your inquiry.
