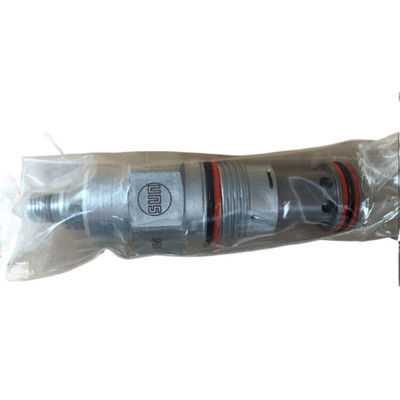

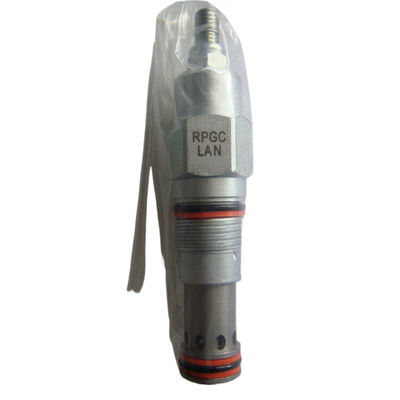

SUN Overflow Valve RPGC-LAN For Smooth And Quiet Pressure Control In Hydraulics

SUN Overflow Valve RPGC-LAN For Smooth And Quiet Pressure Control In Hydraulics
SUN Overflow Valve RPGC-LAN For Smooth And Quiet Pressure Control In Hydraulics SUN Overflow Valve RPGC-LAN For Smooth And Quiet Pressure Control In Hydraulics

Large Image :  SUN Overflow Valve RPGC-LAN For Smooth And Quiet Pressure Control In Hydraulics

Product Details:
Place of Origin: American
Brand Name: SUN
Certification: cc
Model Number: RPGC-LAN
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: RMB/1000-10000/PC
Packaging Details: wooden case/carton
Delivery Time: 3days
Payment Terms: T/T
Supply Ability: 10PCS/days
Contact Now

SUN Overflow Valve RPGC-LAN For Smooth And Quiet Pressure Control In Hydraulics

Description
Brand: SUN Model: RPGC-LAN
Model Weight: 0.57 Lb. Locknut Torque: 80 - 90 Lbf In.
Locknut Hex Size: 9/16 In. Adjustment Screw Internal Hex Size: 5/32 In.
Valve Installation Torque: 45 - 50 Lbf Ft Valve Hex Size: 1 1/8 In.
Highlight:

pressure control hydraulic relief valve

,

pressure control mechanical hydraulic valve

SUN Overflow Valve RPGC-LAN For Smooth And Quiet Pressure Control In Hydraulics
Product Specifications
Attribute Value
Brand SUN
Model RPGC-LAN
Model Weight 0.57 lb.
Locknut Torque 80 - 90 lbf in.
Locknut Hex Size 9/16 in.
Adjustment Screw Internal Hex Size 5/32 in.
Valve Installation Torque 45 - 50 lbf ft
Valve Hex Size 1 1/8 in.
Product Description

The SUN RPGC-LAN is a pilot-operated, balanced-piston relief cartridge designed for precise pressure regulation in hydraulic systems. This normally closed pressure regulating valve opens to tank (port 2) when inlet pressure (port 1) reaches the set value, effectively throttling flow to maintain system pressure.

Key Features
  • Accurate pressure control with low pressure rise versus flow
  • Smooth and quiet operation with moderate response speed
  • Physically and functionally interchangeable with other 2-port relief cartridges
  • Accepts maximum pressure at port 2, suitable for cross port relief circuits
  • Main stage orifice protected by 150-micron stainless steel screen
  • Floating style construction minimizes internal binding from installation torque
Technical Specifications
Cavity T-3A
Series 2
Capacity 50 gpm
Maximum Operating Pressure 5000 psi
Factory Pressure Settings Established at 4 gpm
Maximum Valve Leakage at 110 SUS 3 in³/min.@1000 psi
Response Time - Typical 10 ms
SUN Overflow Valve RPGC-LAN For Smooth And Quiet Pressure Control In Hydraulics 0
Important Notes
  • Not suitable for load holding applications due to spool leakage
  • Back pressure on tank port is directly additive to valve setting (1:1 ratio)
  • EPDM seals are for phosphate ester fluids only (petroleum-based fluids will damage seals)
  • Corrosion resistant options available with /AP or /LH model suffixes
