SUN Overflow Valve RDBA-LWN For Accurate Pressure Control In Hydraulic Systems

SUN Overflow Valve RDBA-LWN For Accurate Pressure Control In Hydraulic Systems
SUN Overflow Valve RDBA-LWN For Accurate Pressure Control In Hydraulic Systems SUN Overflow Valve RDBA-LWN For Accurate Pressure Control In Hydraulic Systems

Large Image :  SUN Overflow Valve RDBA-LWN For Accurate Pressure Control In Hydraulic Systems

Product Details:
Place of Origin: American
Brand Name: SUN
Certification: cc
Model Number: RDBA-LWN
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: RMB/1000-10000/PC
Packaging Details: wooden case/carton
Delivery Time: 3days
Payment Terms: T/T
Supply Ability: 10PCS/days
Contact Now

SUN Overflow Valve RDBA-LWN For Accurate Pressure Control In Hydraulic Systems

Description
Brand: SUN Model: RDBA-LWN
Cavity: T-162A Series: 0
Capacity: 12 Gpm Maximum Operating Pressure: 5000 Psi
Factory Pressure Settings Established At: 4 Gpm Maximum Valve Leakage At Reseat: 10 Drops/min.
Highlight:

pressure control hydraulic relief valve

,

pressure control mechanical hydraulic valve

SUN Overflow Valve RDBA-LWN For Accurate Pressure Control In Hydraulic Systems
Product Specifications
Attribute Value
Brand SUN
Model RDBA-LWN
Cavity T-162A
Series 0
Capacity 12 gpm
Maximum Operating Pressure 5000 psi
Factory Pressure Settings Established at 4 gpm
Maximum Valve Leakage at Reseat 10 drops/min.
Product Description

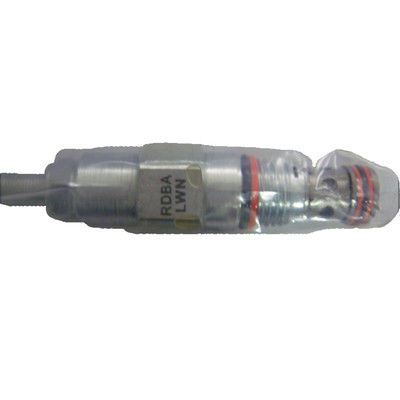

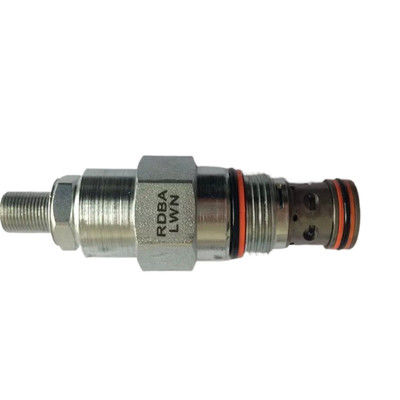

The SUN RDBA-LWN is a direct-acting relief cartridge valve designed for precise pressure control in hydraulic systems. This normally closed, pressure-limiting valve protects hydraulic components from pressure transients by opening to tank when inlet pressure reaches the valve setting.

Key Features
  • Smooth, quiet operation with essentially zero leakage
  • Highly dirt tolerant and immune to silting
  • Fast response time for optimal system protection
  • Can withstand maximum pressure at port 2 for cross port relief circuits
  • Insensitive to varying oil temperatures and contamination
  • Floating style construction minimizes internal binding
  • Physically and functionally interchangeable with other 2-port relief cartridges
Technical Details
Model Weight 0.22 lb.
Locknut Torque 80 - 90 lbf in.
Locknut Hex Size 1/2 in.
Adjustment Screw Internal Hex Size 5/32 in.
Valve Installation Torque 20 - 25 lbf ft
Valve Hex Size 3/4 in.
Adjustment Turns (Min. to Max.) 6 CW turns
Reseat Performance >85% of crack setting
