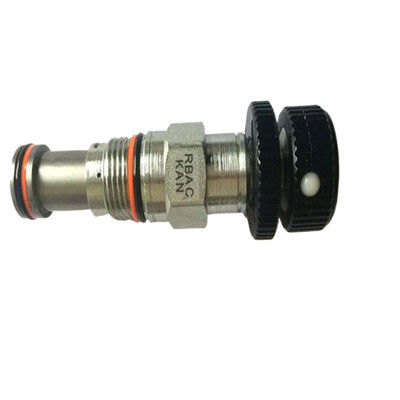

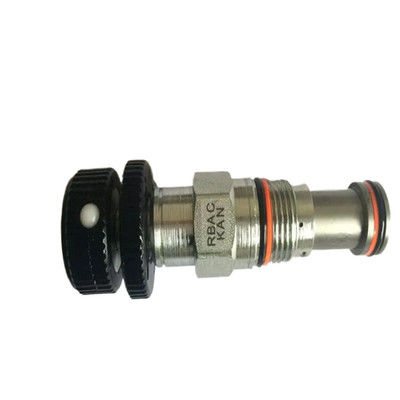

SUN Overflow Valve RBAC-KAN With Back Pressure Capability For Versatility

SUN Overflow Valve RBAC-KAN With Back Pressure Capability For Versatility
SUN Overflow Valve RBAC-KAN With Back Pressure Capability For Versatility SUN Overflow Valve RBAC-KAN With Back Pressure Capability For Versatility

Large Image :  SUN Overflow Valve RBAC-KAN With Back Pressure Capability For Versatility

Product Details:
Place of Origin: American
Brand Name: SUN
Certification: cc
Model Number: RBAC-KAN
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: RMB/1000-10000/PC
Packaging Details: wooden case/carton
Delivery Time: 3days
Payment Terms: T/T
Supply Ability: 10PCS/days
Contact Now

SUN Overflow Valve RBAC-KAN With Back Pressure Capability For Versatility

Description
Brand: SUN Model: RBAC-KAN
Capacity: .25 Gpm Maximum Operating Pressure: 5000 Psi
Maximum Valve Leakage At 110 SUS: 5 Drops/min. Response Time - Typical: 2 Ms
Adjustment: 5 Valve Hex Size: 7/8 In.
Highlight:

Mechanical Hydraulic Valve

,

Hydraulic Relief Valve

,

Hydraulic Control Valves

SUN Overflow Valve RBAC-KAN With Back Pressure Capability
Product Specifications
Attribute Value
Brand SUN
Model RBAC-KAN
Capacity 0.25 gpm
Maximum Operating Pressure 5000 psi
Maximum Valve Leakage at 110 SUS 5 drops/min.
Response Time - Typical 2 ms
Adjustment 5
Valve Hex Size 7/8 in.
Technical Details
  • Direct-acting, pilot relief cartridges for remote pressure control of pilot-operated valves
  • Designed for use with phosphate ester fluids (EPDM seals)
  • Main stage orifice protected by 150-micron stainless steel screen
  • Ideal for load holding applications
  • Back pressure on tank port directly additive to valve setting at 1:1 ratio
  • Sun floating style construction minimizes internal parts binding
  • Corrosion resistant options available (/AP for stainless steel, /LH for zinc-nickel plating)
Additional Specifications
Cavity T-10A
Series 1
Valve Installation Torque 30 - 35 lbf ft
Adjustment Screw Internal Hex Size 5/32 in.
Locknut Hex Size 9/16 in.
Locknut Torque 80 - 90 lbf in.
Model Weight 0.38 lb.
SUN Overflow Valve RBAC-KAN With Back Pressure Capability For Versatility 0
Frequently Asked Questions
Do you accept small orders?
Yes, we accept small orders. Please contact us for details.
Can you ship to my country?
Yes, we can ship internationally. We can arrange shipping if you don't have your own forwarder.
What are your payment terms?
We accept T/T, LC at sight, or 100% full payment.
What is your production lead time?
Typically 15 days for MOQ quantities, depending on product and order size.
When can I get a quotation?
We provide quotes within 24 hours of inquiry. For urgent requests, please contact us directly.
