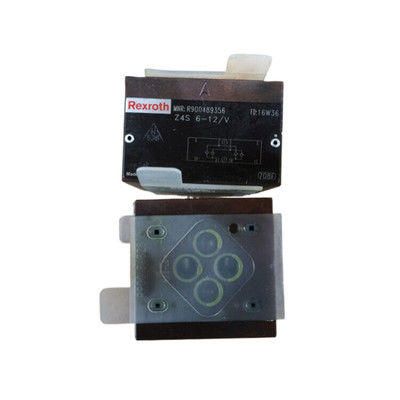

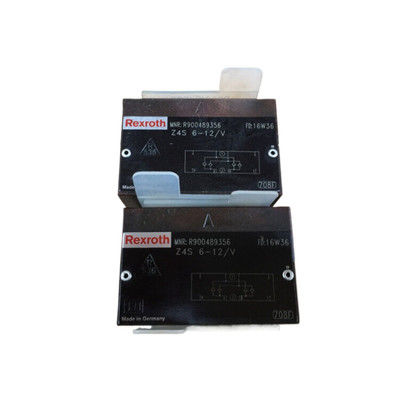

Rexroth Solenoid Valve Z4S6-12 V Safety And Compatibility With Your Medium S Viscosity

Rexroth Solenoid Valve Z4S6-12 V Safety And Compatibility With Your Medium S Viscosity
Rexroth Solenoid Valve Z4S6-12 V Safety And Compatibility With Your Medium S Viscosity Rexroth Solenoid Valve Z4S6-12 V Safety And Compatibility With Your Medium S Viscosity

Large Image :  Rexroth Solenoid Valve Z4S6-12 V Safety And Compatibility With Your Medium S Viscosity

Product Details:
Place of Origin: German
Brand Name: Rexroth
Certification: cc
Model Number: Z4S6-12 V
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: RMB/1000-10000/PC
Packaging Details: wooden case/carton
Delivery Time: 3days
Payment Terms: T/T
Supply Ability: 10PCS/days
Contact Now

Rexroth Solenoid Valve Z4S6-12 V Safety And Compatibility With Your Medium S Viscosity

Description
Brand: Rexroth Model: Z4S6-12 V
Type Of Actuation: Solenoid-actuated Pressure: 15PSI
Pressure Range: 0-315 Bar Seal Material: NBR
Connection Type: Subplate Mounting Current: 9K4
Highlight:

rexroth hydraulic relief valve

,

rexroth mechanical hydraulic valve

Rexroth Solenoid Valve Z4S6-12 V - Safety and Compatibility for Medium Viscosity Applications
Attribute Value
Brand Rexroth
Model Z4S6-12 V
Type of Actuation Solenoid-actuated
Pressure 15PSI
Pressure Range 0-315 bar
Seal Material NBR
Connection Type Subplate mounting
Current 9K4
Product Specifications
  • Connection Diagram: ISO 4401-05-04-0-05
  • Weight: 3KG
  • Size: NG6
  • Port Size: G1/4
  • Response Time: 0.5 Second
  • Flow Rate: 100 l/min
  • Type: 2/2-way valve
  • Media: Oil
Selection Guidelines
Security Considerations
  • For corrosive media: select plastic king solenoid valve or stainless steel
  • For strongly corrosive media: choose isolation diaphragm type
  • For neutral media: copper alloy valve shell material recommended
  • For ammonia applications: copper valves cannot be used
  • For explosive environments: select appropriate explosion-proof grade products
  • Nominal pressure should exceed the highest working pressure in the tube
Medium Characteristics
  • Select appropriate valve type based on gas, liquid, or mixed state media
  • Ensure medium temperature matches product specifications
  • For viscosity above 50cSt: use multi-function solenoid valve (diameter >15mm) or high-viscosity solenoid valve (diameter <15mm)
  • Install recoil-filter valve when medium cleanliness is low
  • Consider directional flow requirements when selecting valve type
Pipeline Parameters
  • Select valve port and model based on flow direction and connection requirements
  • Choose nominal diameter according to flow rate and Kv value
  • For working pressure difference above 0.04Mpa: indirect pilot type recommended
  • For minimal or zero pressure difference: direct acting or step-by-step type required
Environmental Conditions
  • Ensure ambient temperature is within product specifications
  • For high humidity environments: select waterproof solenoid valve
  • For vibration-prone areas: choose specialized valves like Marine solenoid valves
  • For corrosive/explosive environments: select appropriate safety-rated products
  • For space-constrained installations: consider multi-functional solenoid valves
Rexroth Solenoid Valve Z4S6-12 V Safety And Compatibility With Your Medium S Viscosity 0
Frequently Asked Questions
Q: Do you accept small orders?
A: Yes, we accept small orders. Please contact us for details.
Q: Can you ship to my country?
A: Yes, we can arrange shipping worldwide. We can assist with logistics if needed.
Q: What are your payment terms?
A: We accept T/T, LC at sight, and 100% full payment.
Q: What is your production lead time?
A: Lead time varies by product and quantity, typically 15 days for MOQ quantities.
Q: When can I get a quotation?
A: We typically respond within 24 hours. For urgent requests, please call or note in your email.
