Rexroth Hydraulic Relief Valve Z4WE6E137-31EG24N9K4 Flexible Applications -30 … +50 Ambient Temperature Ranges

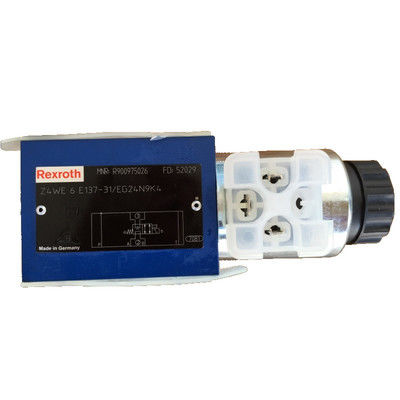

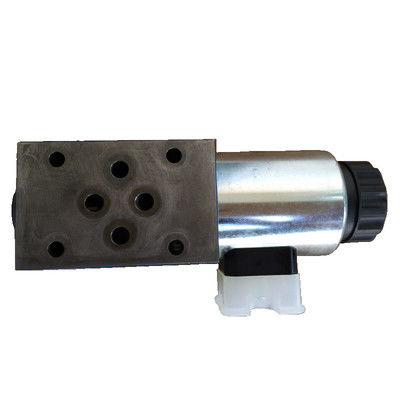

The Bosch Rexroth Z4WE6E137-3X/EG24N9K4 (R900975026) is a high-performance directional slide valve designed for solenoid actuation and configured as a sandwich plate valve. It functions efficiently either as a stop valve or as a straight-through short circuit valve, offering versatility in its applications.

This model adheres to the DIN form A porting pattern standard, without a locating hole, while also providing an option that follows the ISO pattern with a locating hole for enhanced compatibility. Equipped with wet-pin AC or DC solenoids, the Z4WE6E137-3X/EG24N9K4 ensures reliable operation and is suitable for various hydraulic systems requiring precise control of fluid direction.

The option for manual override adds to its functionality, allowing operators to manually control the valve when needed. With its robust design, this valve can withstand a maximum operating pressure of up to 350 bar and can accommodate maximum flow rates of up to 60 l/min, making it suitable for demanding hydraulic applications.
