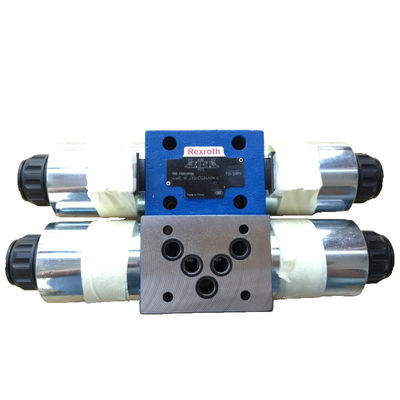

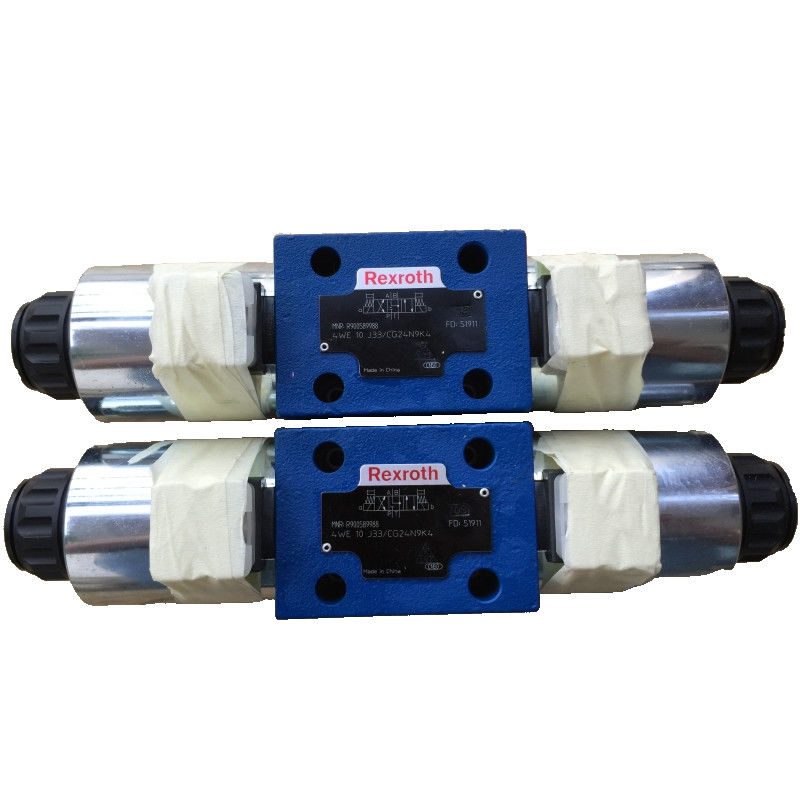

Short Tube Mechanical Hydraulic Valve Rexroth 4WE10J33 CG24N9K4 Metal

The Rexroth 4WE10J33 CG24N9K4 is a high-performance hydraulic directional short-tube valve designed for industrial applications. This mechanical operation valve offers exceptional stability, durability, and compatibility with various hydraulic systems.

• Advanced solenoid valve control technology with response time within tens of milliseconds
• Reliable switching action ensures stable hydraulic system operation
• Supports automatic control for industrial automation scenarios

• Maximum working pressure of 350 bar with flow rate up to 650 L/min
• Excellent sealing with compact structure and low failure rate
• Stable operation in harsh conditions including dust and vibration

• ISO 7368 standard mounting holes for easy hydraulic function expansion
• Compatible with various hydraulic oils (HL, HLP, HVLP)
• NBR sealing material for strong compatibility

• Supports electromagnetic, hydraulic, and manual control
• Electromagnetic drive enables precise direction switching
• Suitable for complex hydraulic systems

• Match system parameters to nominal size (16, 25) and spool symbol (D type)
• Ensure base plate installation complies with ISO 4401 standard
• Strictly match electromagnetic drive power supply voltage (24 V DC)

• Maintain oil cleanliness (NAS 1638 level 6 recommended)
• Ensure complete hydraulic control device in high temperature/pressure environments
• Monitor system pressure fluctuations regularly

• Regularly check solenoid coil resistance (standard value 20Ω±5%)
• Use original accessories for logic cover or function module replacement
• Keep internal pilot oil circuit unobstructed
• Handle external pilot oil return oil independently
• Ensure system pressure is closed during maintenance
