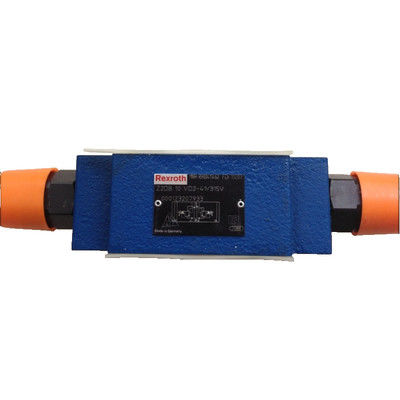

Hyd Rexroth Servo Valves Z2DB10VD2-41 315V For Safe Pressure Maintenance

Hyd Rexroth Servo Valves Z2DB10VD2-41 315V For Safe Pressure Maintenance
Hyd Rexroth Servo Valves Z2DB10VD2-41 315V For Safe Pressure Maintenance Hyd Rexroth Servo Valves Z2DB10VD2-41 315V For Safe Pressure Maintenance

Large Image :  Hyd Rexroth Servo Valves Z2DB10VD2-41 315V For Safe Pressure Maintenance

Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: cc
Model Number: Z2DB10VD2-41 315V
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: RMB/1000-10000/PC
Packaging Details: wooden case/carton
Delivery Time: 3days
Payment Terms: T/T
Supply Ability: 10PCS/days
Contact Now

Hyd Rexroth Servo Valves Z2DB10VD2-41 315V For Safe Pressure Maintenance

Description
Brand: Rexroth Model: Z2DB10VD2-41 315V
Connection Diagram NFPA: NFPA T3.5.1 R2-2002 D05 Size_CETOP: D05
Connection Diagram: ISO 4401-05-04-0-05 Number Of Switching Positions: 4
Weight: 2.9 Seals: FKM
Highlight:

Hyd rexroth servo valves

,

rexroth servo valves Z2DB10VD2-41 315V

,

Z2DB10VD2-41

Hyd Rexroth Servo Valves Z2DB10VD2-41 315V For Safe Pressure Maintenance
Product Specifications
Attribute Value
Brand Rexroth
Model Z2DB10VD2-41 315V
Connection diagram NFPA NFPA T3.5.1 R2-2002 D05
Size_CETOP D05
Connection diagram ISO 4401-05-04-0-05
Number of switching positions 4
Weight 2.9
Seals FKM
Product Description

The Bosch Rexroth Z2DB10VD2-4X/315V (R900411462) is a high-performance industrial hydraulic valve designed for reliable pressure relief at set pressures. This pilot-operated spool valve with mechanically actuated configuration ensures precise control over hydraulic systems.

Features include:

  • Sandwich plate design compatible with NFPA T3.5.1 R2 D03 and ISO 4401 porting patterns
  • Equipped with two pressure valve cartridges
  • Multiple adjustment types for pressure settings
  • Corrosion-protected design for durability in harsh environments
  • CETOP size 6 dimensions (component series X)
  • Maximum operating pressure of 315 bar

The valve maintains system pressure within safe limits through its spring-loaded spool mechanism. When pressure in channel A exceeds the preset value, the pilot poppet opens, allowing hydraulic fluid to flow through and reduce pressure by opening the connection from A to T (tank).

Hyd Rexroth Servo Valves Z2DB10VD2-41 315V For Safe Pressure Maintenance 0
Technical Details
Spool symbol A - B and B - A
Max. pressure 315
Productgroup ID 9,10,11,12,13,14
Number of ports 4
Type of actuation with manual actuation
Size 10
Max. flow 100
Type of connection Sandwich plate
