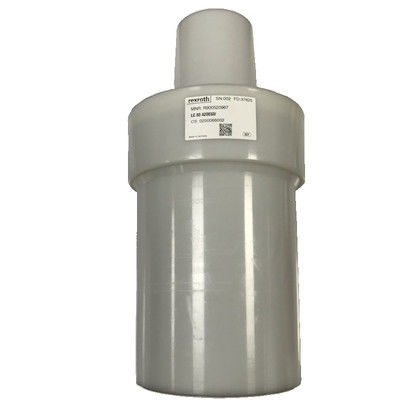

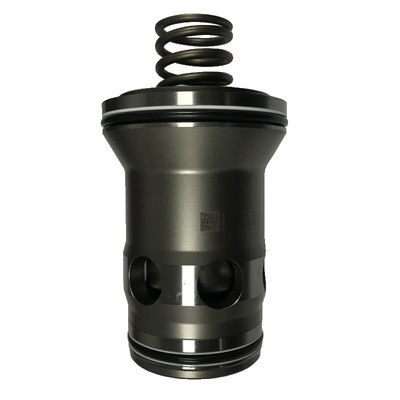

Rexroth Cartridge Valve LC80A20E60 Customizable Flow Control 12.531 Weight

The Bosch Rexroth LC80A20E6X/ (R900520967) is a high-performance industrial hydraulic valve designed for bidirectional flow control from A to B and B to A. This hydraulically actuated, spool-type AE valve is part of the standard series Size 80 component series X, which ensures reliable switching of oil flow direction.

This cartridge valve operates under a maximum pressure of up to 350 bar and can handle manufacturer-specified flow rates. Its construction makes it suitable for compact block design applications, with connections A and B installed into a standardized control block and sealed with a cover that also serves as the connection to pilot control valves.

The valve's modular design includes a control cover with control bores and optional features like stroke limitation function, hydraulically controlled directional seat valves, or shuttle valves. Electrically operated directional spool or seat valves can be integrated into the control cover for expanded capabilities.

• Spool symbol: Symbol A20E
• Product group ID: 9,10,11,12,13,14
• Max. pressure: 420 bar
• Type of actuation: Hydraulic actuation
• Size: 80
• Max. flow: 7000
