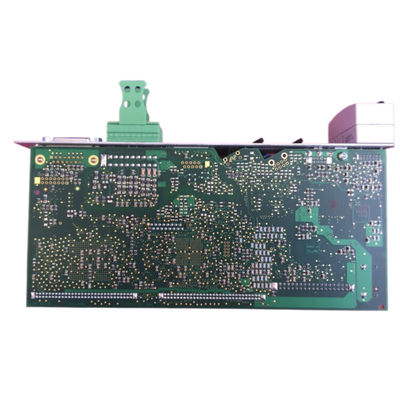

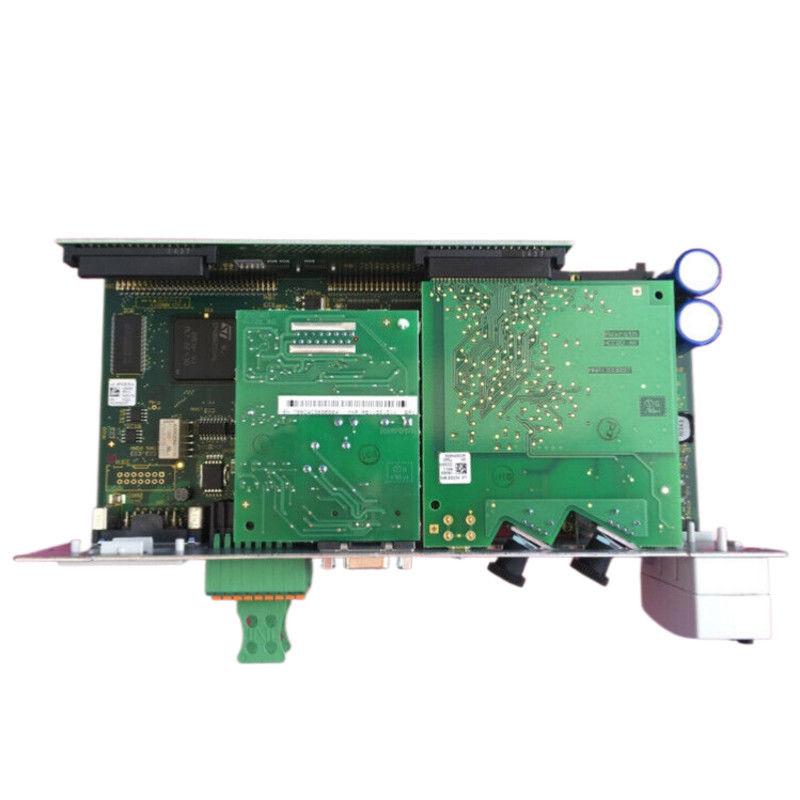

Rexroth CSB01.1C-SE-ENS-NNN-L1-S-NN-FW Electronic Amplifier Efficient

As a core control component in industrial automation systems, the Rexroth CSB01.1C amplifier delivers high-precision control and efficient dynamic response for demanding industrial applications.

• High-precision control: ±0.1mm position control accuracy and ±0.1% speed control accuracy with 16-bit high-resolution signal processing
• Efficient dynamic response: Millisecond current response (≤5ms) with PWM frequency adjustment capability
• Environmental adaptability: IP65 protection rating with wide temperature operating range (-20℃ to +70℃)
• Intelligent design: Ramp generator for smooth system start/stop and support for multiple input signals and communication protocols
• Reliable protection: Integrated overload, short circuit, reverse polarity protection with LED status indicators

• Avoid strong vibration environments and ensure proper heat dissipation channels
• Maintain input voltage within ±10% of rated value (e.g., 21.6~26.4V for 24V DC system)
• Use shielded signal lines and keep away from strong interference sources
• Follow proper start/stop sequence and avoid sudden power outages
• Perform quarterly maintenance including cleaning radiators and checking fans
• Annual calibration of potentiometer recommended to prevent drift

• Diagnose problems through LED fault codes
• Component replacement should be performed by qualified personnel
• Warning: Insufficient heat dissipation or voltage overruns may cause permanent damage
