Rexroth Pressure Switch HED8OP-20 350K14KW With Rotary Knob And Scale Max. pressure 350

Rexroth Pressure Switch HED8OP-20 350K14KW With Rotary Knob And Scale Max. pressure 350
Rexroth Pressure Switch HED8OP-20 350K14KW With Rotary Knob And Scale Max. pressure 350 Rexroth Pressure Switch HED8OP-20 350K14KW With Rotary Knob And Scale Max. pressure 350

Large Image :  Rexroth Pressure Switch HED8OP-20 350K14KW With Rotary Knob And Scale Max. pressure 350

Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: cc
Model Number: HED8OP-20 350K14KW
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: RMB/1000-10000/PC
Packaging Details: wooden case/carton
Delivery Time: 3days
Payment Terms: T/T
Supply Ability: 10PCS/days
Contact Now

Rexroth Pressure Switch HED8OP-20 350K14KW With Rotary Knob And Scale Max. pressure 350

Description
Brand: Rexroth Model: HED8OP-20 350K14KW
Max. Pressure: 350 Electrical Connection Description: Connector 4-pole (3 + PE) According To EN 175301-803
Productgroup ID: 9,10,11,12,13,14 Conformity Description: CE – According To Low-Voltage Directive 2014/35/EU
Electrical Connector: Connector 4-pole (3 + PE) Type Of Connection: Subplate Mounting
Highlight:

Rexroth Pressure Switch HED8OP-20

,

Pressure Switch HED8OP-20

,

Rexroth Pressure Switch With Rotary Knob

Rexroth Pressure Switch HED8OP-20 350K14KW With Rotary Knob And Scale Max. pressure 350
Product Specifications
Attribute Value
Brand Rexroth
Model HED8OP-20 350K14KW
Max. pressure 350
Electrical connection Connector 4-pole (3 + PE) according to EN 175301-803
Productgroup ID 9,10,11,12,13,14
Conformity CE – according to Low-Voltage Directive 2014/35/EU
Type of connection Subplate mounting

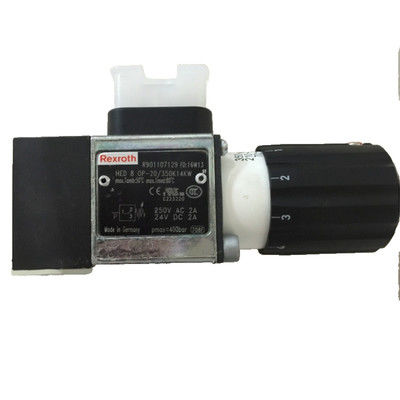

Product Overview
The Bosch Rexroth HED 8 OP-2X/350K14KW is a precision piston-type hydraulic pressure switch designed for subplate mounting. This robust device features a micro switch with normally closed (NC) and normally open (NO) contact functions, enabling potential-free switching of currents from milliamps to 0.5 amps.
Key Features
  • High repetition accuracy of less than 1% of set pressure
  • Adjustable rotary knob with scale for easy pressure setting
  • DIN EN large cubic connector for secure electrical connection
  • Operates with supply voltage up to 250V AC/DC
  • NBR seals compatible with HL, HLP, HLPD, HVLP, and HVLPD hydraulic fluids
  • Maximum operating pressure of 350 bar
  • CE, CCC, UL, and RoHS compliant
  • Protection against mechanical damage from pressure fluctuations
Technical Specifications
Supply voltage 12...250 V AC/DC
Weight 0.86 kg
Output signal Micro switch with NC/NO contact function
Rexroth Pressure Switch HED8OP-20 350K14KW With Rotary Knob And Scale Max. pressure 350 0
