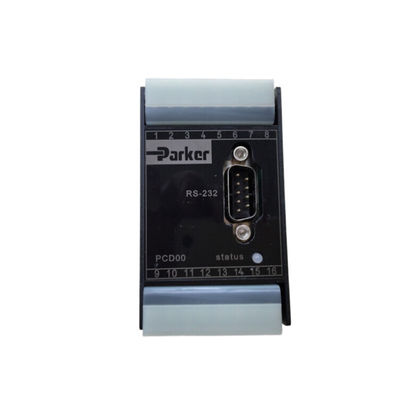

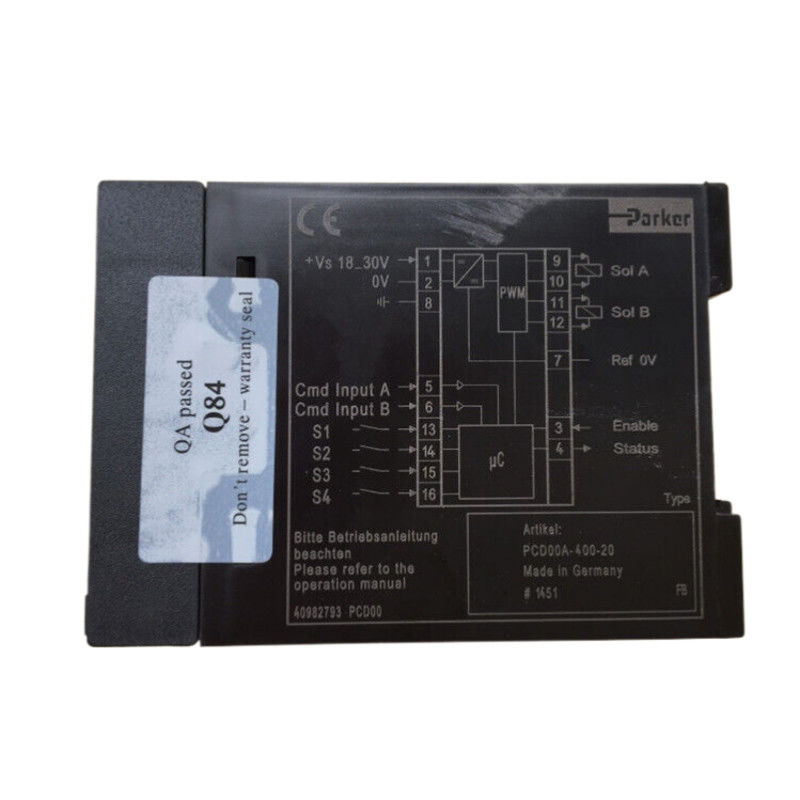

Parker PCD00A-400 Digital Amplifier Module Series High Precision New

Conversion efficiency > 90% using switch amplification technology, reducing power consumption by more than 40% compared to traditional analog amplifiers.

Constant current control design ensures electromagnet driving force stability with output current fluctuation <±0.5%.

Dual-channel independent amplification supports precise control of two proportional valves simultaneously with ≤50ms response time.

Parameter programmability via RS232C interface with ProPxD software for custom PID parameters and 4 preset channels.

EMC certification compliant with EN 50081-2/EN 50082-2 standards for industrial electromagnetic interference suppression.

Differential input stage design accurately extracts effective frequency band information even in noisy environments.

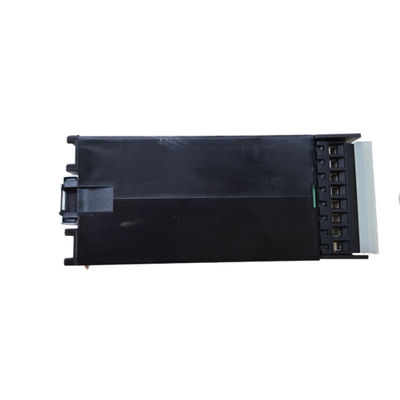

Guide rail buckle installation with detachable terminals saves over 50% wiring time.

Operates in -25℃ to +70℃ environments with optional fluororubber seals for high temperature conditions.

24V DC power supply polarity must be strictly observed to prevent circuit damage.

Signal lines require grounding and shielding at both ends with length ≤30 meters to prevent interference.

Ramp time settings must match action cycles to prevent system oscillation.

Four preset channels require independent calibration to prevent control drift.

Output current must not exceed rated value (PCD00A-400 maximum 10A).

Avoid proximity to high-frequency interference sources like inverters and high-power RF equipment.
