SUN Direction Valve DWDA-MAN With Low Leakage Rates And IP69K Coil Connector Option

SUN Direction Valve DWDA-MAN With Low Leakage Rates And IP69K Coil Connector Option
SUN Direction Valve DWDA-MAN With Low Leakage Rates And IP69K Coil Connector Option SUN Direction Valve DWDA-MAN With Low Leakage Rates And IP69K Coil Connector Option

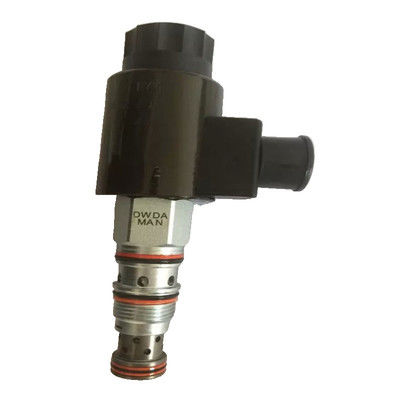

Large Image :  SUN Direction Valve DWDA-MAN With Low Leakage Rates And IP69K Coil Connector Option

Product Details:
Place of Origin: American
Brand Name: SUN
Certification: cc
Model Number: DWDA-MAN
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: RMB/1000-10000/PC
Packaging Details: wooden case/carton
Delivery Time: 3days
Payment Terms: T/T
Supply Ability: 10PCS/days
Contact Now Chat Now

SUN Direction Valve DWDA-MAN With Low Leakage Rates And IP69K Coil Connector Option

Description
Brand: SUN Model: DWDA-MAN
Cavity: T-11A Series: 1
Capacity: 7.5 Gpm Maximum Operating Pressure: 5000 Psi
Maximum Valve Leakage At 110 SUS (24 CSt): 10 Drops/min.@5000 Psi Manual Override Force Requirement: 5 Lbs/1000 Psi @ Port 1
Highlight:

IP69K SUN Direction Valve

,

Low Leakage Rates SUN Direction Valve

,

DWDA-MAN SUN Direction Valve

SUN Direction Valve DWDA-MAN With Low Leakage Rates And IP69K Coil Connector Option
Product Specifications
Attribute Value
Brand SUN
Model DWDA-MAN
Cavity T-11A
Series 1
Capacity 7.5 gpm
Maximum Operating Pressure 5000 psi
Maximum Valve Leakage at 110 SUS (24 cSt) 10 drops/min.@5000 psi
Manual Override Force Requirement 5 lbs/1000 psi @ Port 1
Product Description

This solenoid-operated 3-way, 2-position cartridge is a direct-acting, poppet-style directional valve. The valve is normally open between port 1 and port 2 with port 3 blocked. Energizing the valve connects port 2 to 3 and blocks port 1. All flow paths are bidirectional and blocked paths are blocked in both directions.

Key Feature: Due to the poppet style construction, this valve has extremely low leakage.

This valve is designed to be used with 740 and 747 Series coils. The solenoid tube assembly is fatigue rated for 5000 psi (350 bar) service. This valve is direct actuated and requires no minimum hydraulic pressure for operation. This cartridge has an option for manual override.

  • Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids
  • All configurations include zinc-nickel plating as standard for 1000-hour salt fog protection
  • Coil connector options offer ratings up to IP69K
  • Suitable for load holding applications on port 3 only
  • Valves exhibit extremely low leakage rates; less than 10 drops/min. @ 5000 psi
Manual Override Stroke 0.10 in.
Response Time - Typical 50 ms
Switching Frequency 15,000 max. cycles/hr
Solenoid Tube Diameter 0.63 in.
Valve Hex Size 7/8 in.
Valve Installation Torque 30 - 35 lbf ft
Model Weight 0.64 lb.
Seal kit - Cartridge Buna: 990411007
