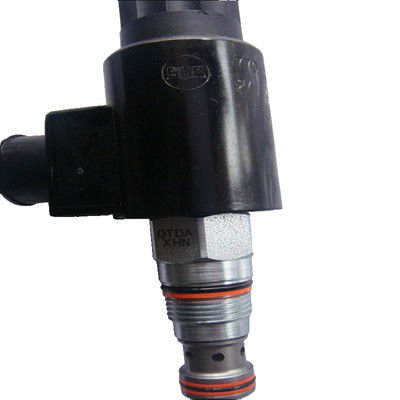

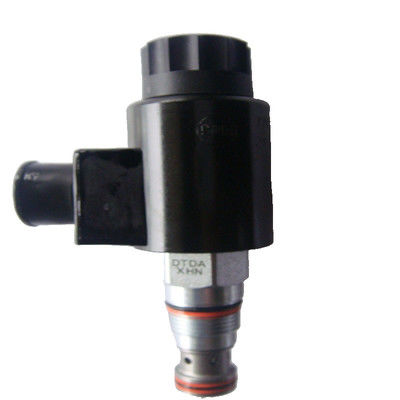

SUN Direction Valve DTDA-XHN With Extremely Low Leakage Rates And Wet Armature Design

SUN Direction Valve DTDA-XHN With Extremely Low Leakage Rates And Wet Armature Design
SUN Direction Valve DTDA-XHN With Extremely Low Leakage Rates And Wet Armature Design SUN Direction Valve DTDA-XHN With Extremely Low Leakage Rates And Wet Armature Design

Large Image :  SUN Direction Valve DTDA-XHN With Extremely Low Leakage Rates And Wet Armature Design

Product Details:
Place of Origin: American
Brand Name: SUN
Certification: cc
Model Number: DTDA-XHN
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: RMB/1000-10000/PC
Packaging Details: wooden case/carton
Delivery Time: 3days
Payment Terms: T/T
Supply Ability: 10PCS/days

SUN Direction Valve DTDA-XHN With Extremely Low Leakage Rates And Wet Armature Design

Description
Brand: SUN Model: DTDA-XHN
Response Time - Typical: 50 Ms Switching Frequency: 15,000 Max. Cycles/hr
Solenoid Tube Diameter: 75 In. Valve Hex Size: 7/8 In
Valve Installation Torque: 30 - 35 Lbf Ft Model Weight: 0.65 Lb
Highlight:

Extremely Low Leakage SUN Direction Valve

,

DTDA-XHN SUN Direction Valve

,

Wet Armature SUN Direction Valve

SUN Direction Valve DTDA-XHN With Extremely Low Leakage Rates And Wet Armature Design
Product Specifications
Attribute Value
Brand SUN
Model DTDA-XHN
Response Time - Typical 50 ms
Switching Frequency 15,000 max. cycles/hr
Solenoid Tube Diameter 75 in.
Valve Hex Size 7/8 in
Valve Installation Torque 30 - 35 lbf ft
Model Weight 0.65 lb
Product Description

The SUN DTDA-XHN is a solenoid-operated 2-way, 2-position cartridge valve featuring direct-acting, poppet-style design. Available in normally open or normally closed configurations, this valve offers exceptional performance with extremely low leakage rates.

  • Poppet-style construction ensures minimal leakage (less than 10 drops/min @ 5000 psi)
  • Wet armature design with working fluid surrounding the armature
  • Solenoid tube assembly fatigue rated for 5000 psi (350 bar) service
  • Direct actuated operation requires no minimum hydraulic pressure
  • Multiple manual override options available (not compatible with weatherized coils)
  • Ideal for load holding applications (normally closed option springs closed during power failure)
  • EPDM seals available for systems using phosphate ester fluids
  • High efficiency solenoid design provides reliable valve shifting with minimal power consumption
Technical Details
Cavity T-13A
Series 1
Capacity 10 gpm
Maximum Operating Pressure 5000 psi
Maximum Valve Leakage at 110 SUS (24 cSt) 10 drops/min.@5000 psi
Manual Override Force Requirement 5 lbs/1000 psi @ Port 1
Manual Override Stroke 0.10 in
SUN Direction Valve DTDA-XHN With Extremely Low Leakage Rates And Wet Armature Design 0
