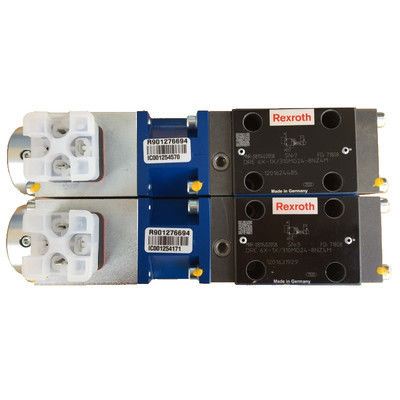

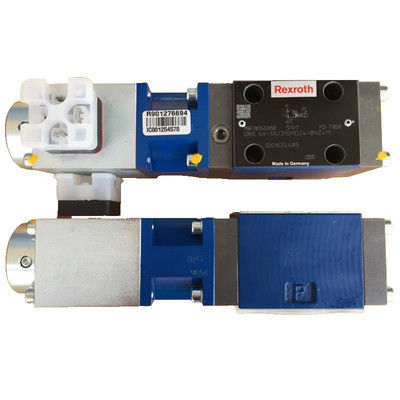

Rexroth Hydraulic Relief Valve DRE6X-1X 310MG24-8NZ4M For Pressure Reduction

The Bosch Rexroth DRE6X-1X/310MG24-8NZ4M (0811402058) is an advanced, electrically pilot-operated 3-way pressure reducing valve designed to manage system pressure effectively. This valve integrates three main components: a pilot control valve, a proportional solenoid, and a main valve with a control spool.

It operates by setting the reduced pressure in channel A through the proportional solenoid based on command values. The spring in the depressurized port P holds the main control spool in its initial position, allowing for connections from A to T and blocking from P to A. The DRE6X-1X/310MG24-8NZ4M excels in pressure reduction by building pilot pressure in the control chamber corresponding to command values, enabling hydraulic fluid flow from P to A.

The actuator's pressure is balanced with the spring chamber through specific channels and nozzles, adjusting the pressure in port A to match that of the pilot control valve's settings.

Additionally, this valve features a pressure limitation mechanism; if port A's pressure exceeds the set value, it moves the main control spool further left to open connections from A to T--thus capping the pending pressure in port A at the predetermined command value.

Designed for versatility, it can be mounted via subplate or sandwich plate configurations according to ISO 4401-03-02-05 standards. The minimum set pressure can be established in ports A or P1. Notably, this model includes integrated electronics (OBE), which simplifies setup and ensures consistent performance with minimal manufacturing variance. The DRE6X-1X/310MG24-8NZ4M is engineered for precise operation where reliable and adjustable pressure reduction is required within hydraulic systems.

• Brand: Rexroth
• Model: DRE6X-1X 310MG24-8NZ4M
• Hydraulic Connection: Sub-Plate
• Pressure Rating: Up to 5000 psi
• Media: Hydraulic oil
• Body Material: Steel
• Valve Type: Relief Valve
• Media Compatibility: Hydraulic Fluids
• Flow Rating: Up to 500 l/min
• Seals: NBR
