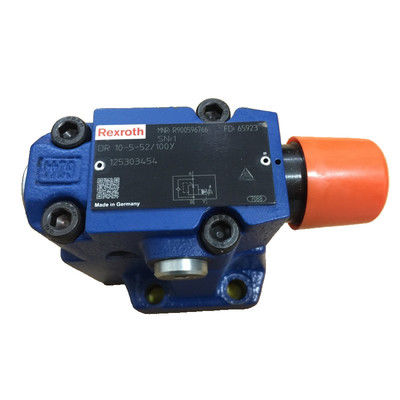

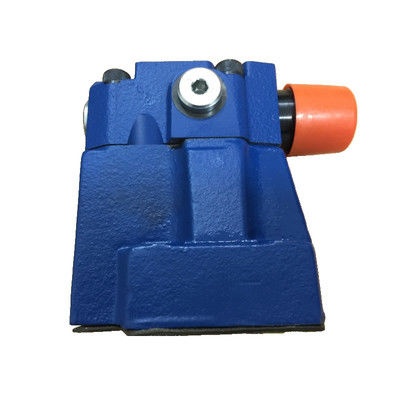

Rexroth Hydraulic Relief Valve DR10-5-52 100Y Compatible With Various Hydraulic Fluids

The Bosch Rexroth DR10-5-5X/100Y (R900596766) is a high-performance industrial hydraulic valve designed for reliable pressure reduction to a predetermined setting value. This mechanically actuated valve is part of Bosch Rexroth's product group and showcases a spool symbol of B A, indicating its flow path.

It operates with a maximum pressure capacity and features multiple ports for versatile connectivity. The type of actuation is mechanical, ensuring robust and direct control. With a size designation of B, the DR10-5-5X/100Y can handle a substantial max flow rate, making it suitable for various hydraulic applications.

It employs subplate mounting for secure installation and conforms to ISO connection diagrams, which facilitates its integration into standardized systems. The valve has multiple switching positions and comes with NBR seals that are compatible with hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, and HFC.

Pressure valves like the DR10-5-5X/100Y function by allowing fluid to flow from channel B to channel A unrestrictedly in their rest position. When the pressure in channel A exceeds the spring-set value, the control spool begins to close off the flow. The balance between the pressure in channel A and the spring setting determines the reduced pressure level achieved by this valve.
