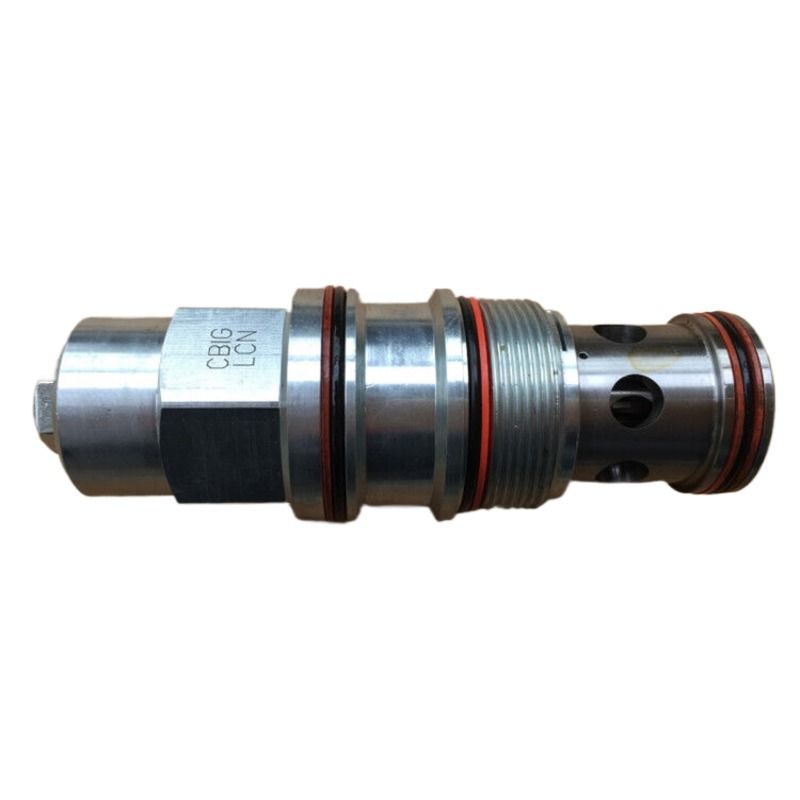

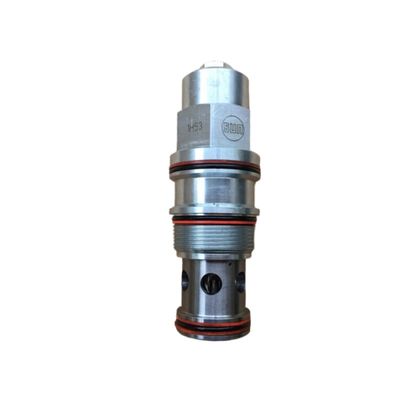

Product Description:
The advantages and features of SUN cartridge valves include:
Free floating design : The most significant advantage of SUN cartridge valves is the free floating design of the valve tail, which allows its precision-matched working components to float in the valve body, thereby reducing sensitivity to installation torque and avoiding the possibility of internal moving components getting stuck.
Wear-resistant and impact-resistant : The internal working components of SUN cartridge valves are heat-treated, with wear-resistant, impact-resistant, and fatigue-resistant characteristics, and have a long service life.
Large flow and low pressure loss : The design of SUN cartridge valves allows for larger flow capacity while reducing the impact of eccentricity, making the oil pressure system have a larger flow and lower pressure loss.
Easy to install and maintain : Due to its design features, SUN cartridge valves do not require changing the existing settings of the valve or disassembling any piping during installation and maintenance, reducing installation time and maintenance time.
High flexibility : The consistency of the oil ports of SUN cartridge valves allows for greater design flexibility and reduces the need for tools on the oil circuit board.
Precautions for use include:
Ensure alignment: During installation, the outer diameter of the threaded shoulder can guide the valve into the socket to ensure alignment and prevent eccentricity from affecting the operation of the valve.
Avoid excessive torque: The floating design allows for higher installation torque, but it is necessary to ensure that the torque is appropriate to avoid loosening or oil leakage.
Regular inspection: Regularly check the working status of the valve to ensure that its internal moving components are not stuck or worn.
Proper storage: The cartridge valve with EPDM sealing ring is suitable for specific hydraulic oils and working environments. When storing, care should be taken to avoid exposure to inappropriate hydraulic oils or lubricating greases.
| Supply Voltage |
24 VDC |
| Valve Material |
Steel |
| Connection Diagram |
ISO 7368-11-10-1-16 |
| Control Pilot Flow |
7 - 10 in³/min. |
| Valve Function |
On/Off |
| Operating Temperature |
Up to 250°F |
| Spool Symbol |
Symbol B20E |
| Valve Hex Size |
1 5/8 in. |
| Body Material |
Steel |
| Pilot Control |
Direct operated |
FAQ
Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3: What's your payment terms ?
A3: By T/T,LC AT SIGHT,100% full payment.
Q4: How long is your production lead time?
A4:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.
Q5: When can I get the quotation ?
A5: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
