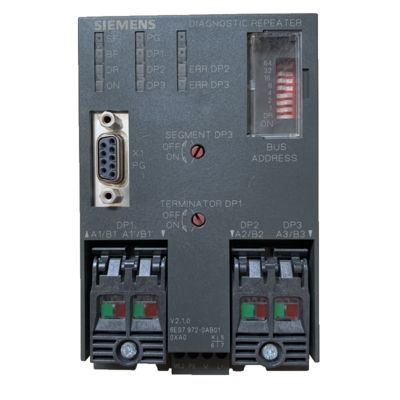

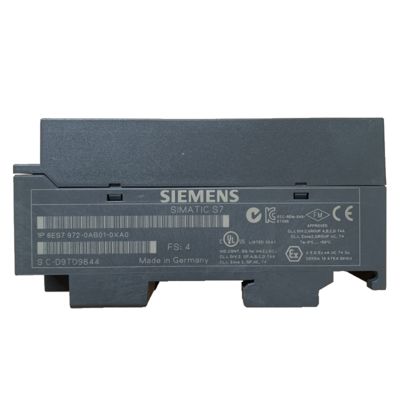

Electronic Amplifier For Siemens Power Supply 6ES7972-0AB01-0XA0 Boost Network Segments And Signal For PROFIBUS Or MPI Bus Systems

Key Features:

• Network Expansion:
  • Supports up to 31 nodes per segment .
  • Allows the connection of two PROFIBUS or MPI segments .
• Transmission Rate:
  • Maximum baud rate of 12 Mbit/s .
  • Configurable transmission rate range from 9.6 kbit/s to 12 Mbit/s .
• Power Supply:
  • Rated Voltage: 24 V DC.
  • Permissible Range: 20.4 V to 28.8 V .
• Current Consumption:
  • Maximum: 100 mA (no load at PG/OP socket).
  • With Load at PG/OP Socket:
    • 130 mA (5 V / 90 mA load).
    • 200 mA (24 V / 100 mA load) .
• Power Loss:
  • Typical 0.7 W .
• Protection Class:
  • IP20 .
• Environmental Conditions:
  • Operating Temperature: 0°C to +60°C.
  • Storage/Transport Temperature: -40°C to +70°C.
  • Relative Humidity: Up to 95% at 25°C .
• Dimensions and Weight:
  • Dimensions: Width 45 mm, Height 128 mm, Depth 59.3 mm .
  • Weight: Approximately 350 g .
