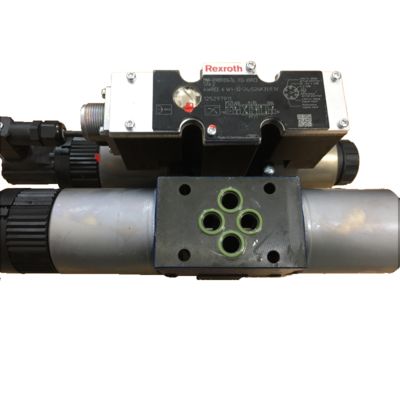

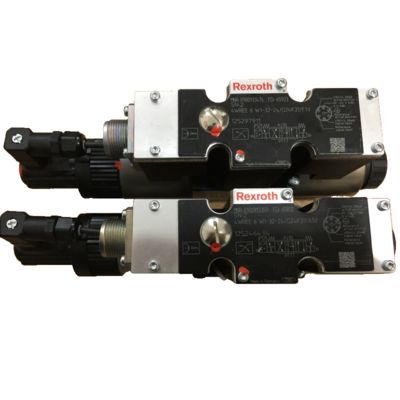

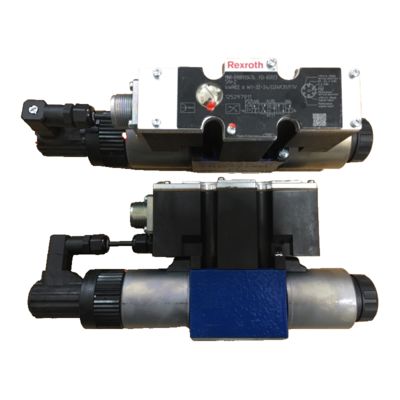

Rexroth Proportional Valve 4WREE6W1-32-2X/G24K31/F1V 315 Bar High Pressure Easy To Calibrate High Temperatures Up To 80 °C

Description:

The Rexroth 4WREE6W1-32-2X/G24K31/F1V is a direct-acting three-position four-way proportional directional valve manufactured by Bosch Rexroth. It features a 6 mm bore, belongs to the 2X series, has a maximum operating pressure of 315 bar, and a rated flow rate of 32 L/min (Δp = 10 bar). The valve features a plate-mounted design, with port arrangements compliant with ISO 4401-03 / DIN 24340-A / CETOP RP121H standards, enabling direct replacement of conventional electromagnetic directional control valves of the same specifications. The spool is driven by a proportional solenoid and integrates a displacement sensor to achieve closed-loop feedback of the spool position; An internal amplifier (F1 interface, 4–20 mA command input) enables connection to an upper-level PLC or motion controller with a single cable, eliminating the need for an external amplifier card. The solenoid coil features a central thread, enabling 360° rotation and quick disassembly/replacement for easy maintenance. The valve spool and body are treated with a hard coating and paired with fluor rubber seals, offering wear and corrosion resistance suitable for mineral oil, water-glycol, and phosphate ester hydraulic fluids. Flow-current characteristic curves and temperature drift compensation are matched and compensated during factory testing to ensure batch consistency. The compact and lightweight all-aluminum alloy housing reduces installation space by over 30% compared to traditional servo valves, while achieving dynamic response times of less than 50 ms, sufficient to meet most industrial closed-loop control requirements.


Application Areas:

Injection Molding Machines: Speed and force control of clamping, injection, and ejection actuators
Steel Equipment: Rolling mill pressure reduction, flying shear, and coil tension regulation
Construction machinery: mast leveling for rotary drilling rigs, boom posture control for concrete pump trucks
Machine tools: feed axis for turning and milling composite centers, hydraulic tool turret indexing
Wind power: blade angle adjustment for variable pitch systems
Ships: rudder mechanisms, deck crane rotation mechanisms
Testing machines: loading channels for material fatigue testing machines
Petrochemical: pressure closed-loop systems for wellhead disc brake systems


Advantages:

Built-in amplifier reduces wiring by 50% and shortens commissioning time by 30%
Valve spool displacement closed-loop control with hysteresis < 0.3% and high repeatability
315 bar high pressure and 32 L/min flow rate with high power density
Spring-centered design with automatic zero return upon power loss for enhanced system safety
Rotatable and individually replaceable coils for low maintenance costs
Aluminum alloy valve body, lightweight, fast heat dissipation
Fluororubber seals, compatible with multiple media, suitable for high temperatures up to 80 °C
Panel mounting, compatible with ISO 4401-03 base plates, easy to replace
Linear flow-current curve, easy to calibrate with PLC
Strong contamination resistance, stable operation with NAS 9-grade oil, filter cartridge costs lower than servo valves
