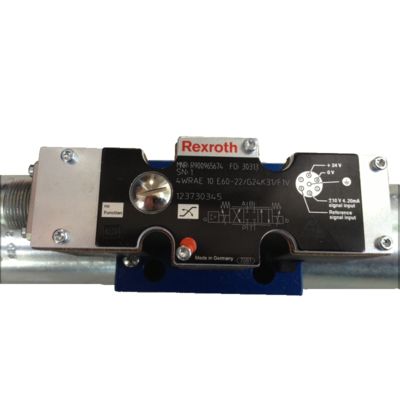

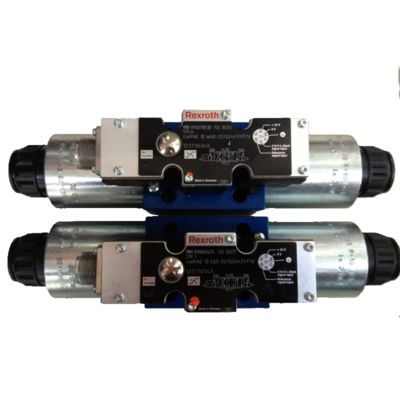

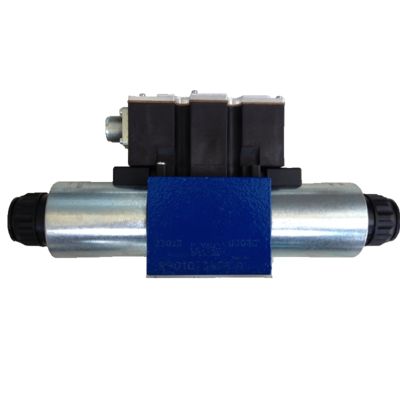

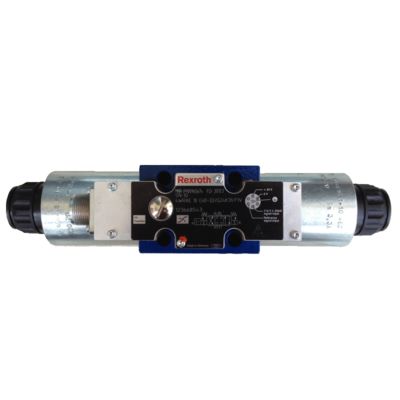

Rexroth Proportional Valve 4WRAE10E60-2X/G24K31/F1V 315 Bar High Safety Fast Response Long Service Life

Description:

The Rexroth 4WRAE10E60-2X/G24K31/F1V is a direct-acting three-position four-way proportional directional valve from the 4WRAE series under the Bosch Rexroth brand. The valve features a plate-type structure, directly driven by a two-position proportional solenoid with a removable coil to actuate the spring-centered control spool. The spool does not have electrical position feedback but incorporates integrated electronic components (OBE). The input interface supports a 4–20 mA current signal (F1 type), enabling continuous, proportional control of direction and flow without the need for an external amplifier. The valve body size is NG10 (size 10), component series 2X, with a maximum operating pressure of 315 bar and a rated flow rate of 75 l/min. The base mounting interface complies with ISO 4401, enabling seamless integration with various hydraulic manifolds or integrated systems. FKM seals ensure good compatibility with mineral oils (HL, HLP), and the overall protection rating and electromagnetic compatibility meet the requirements for long-term reliable operation in industrial environments.


Application Areas:

Machine Tools: Feed, clamping, spindle positioning, tool magazine rotation
Plastic Machinery: Injection molding machine mold opening/closing, injection unit movement, pressure holding switching
Die Casting and Stamping: Slider speed and cushioning control, mold clamping
Metallurgy and rolling: Roll gap adjustment, coil tension, side guide positioning
Construction machinery: Boom synchronization for aerial work platforms, mast vertical adjustment for rotary drilling rigs, directional control for concrete pumping
Testing and simulation: Multi-channel force/displacement servo loading, road simulation test benches
Wind power and marine: Pitch control, yaw braking, deck winch speed control
Food and Packaging: Filling volume, sealing pressure, film tension adjustment


Advantages:

Direct-acting design with no pilot leakage, fast response, and minimal hysteresis
Integrated electronic components eliminate the need for external amplifiers, resulting in simplified wiring and strong interference resistance
4–20 mA current interface enables long-distance transmission without signal degradation and is compatible with PLC and DCS systems
Spring-centered design with automatic zero return upon power loss ensures high system safety
315 bar high pressure, 75 l/min high flow rate, suitable for most medium and small-power hydraulic circuits
ISO 4401 base plate mounting, replacement and maintenance without modifying the oil circuit
FKM seals, oil-resistant and high-temperature resistant, longer service life
Can be stacked with 2/2 or 3/2 function valve plates to achieve multi-functional valves, reducing system costs.
