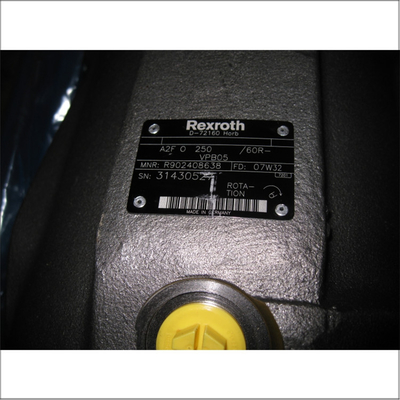

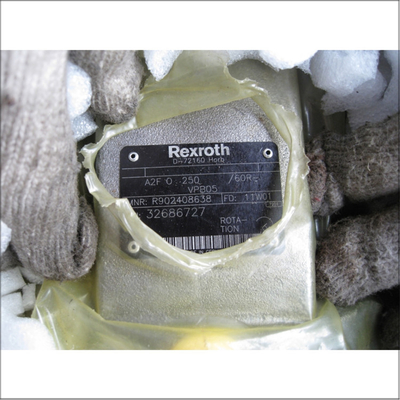

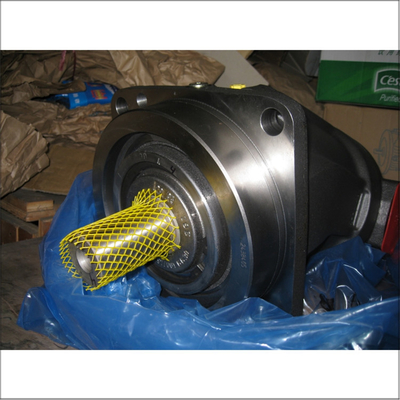

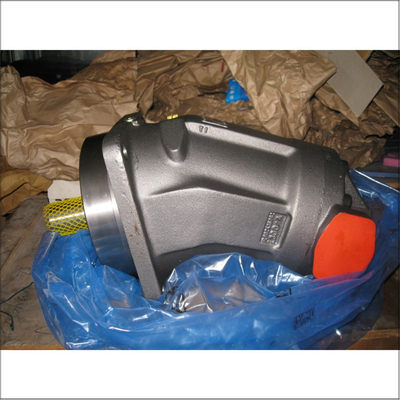

Bosch Rexroth A2FO250 60R-VPB05 The Perfect Mechanical Hydraulic Pump for Precision Performance in Demanding Environments

Technical Specifications

• Model: A2FO250 60R-VPB05
• Series: A2FO Series
• Type: Axial piston pump (fixed displacement)
• Displacement: 250 cm³
• Nominal Pressure: Up to 280 bar
• Maximum Pressure: 350 bar
• Speed Range: Up to 3000 RPM
• Flow Rate: Up to 375 liters per minute (LPM)
• Mounting Flange: ISO 3019-2 4-hole
• Direction of Rotation: Clockwise
• Body Material: Cast Iron
• Seal Type: Viton
• Fluid Compatibility: Petroleum oils
• Fluid Cleanliness: 19/17/14 micron
• Working Temperature Range: -25°C to +90°C (-13°F to +195°F)
• Weight: Approximately 50 kg

Features

• High Pressure Capability: Suitable for high-pressure applications up to 350 bar.
• Wide Flow Range: Capable of handling flow rates up to 375 LPM.
• Robust Design: Cast iron body ensures durability and reliability.
• Versatile Mounting: ISO 3019-2 4-hole flange for easy integration into various hydraulic systems.
• Temperature Resistance: Operates reliably within a wide temperature range.
• High-Speed Operation: Designed for speeds up to 3000 RPM.
• Economical Design: High power density and small dimensions make it cost-effective.
• Long Service Life: Designed with long-life bearings suitable for continuous operation.

Applications

• Machine Tool
• Marine/Offshore Systems
• Presses
• Primary Metal Processing
• Plastics, Pulp & Paper
• Test Equipment
