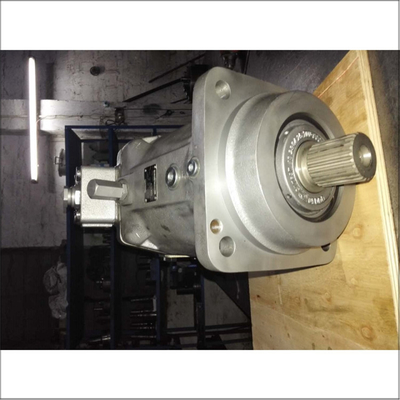

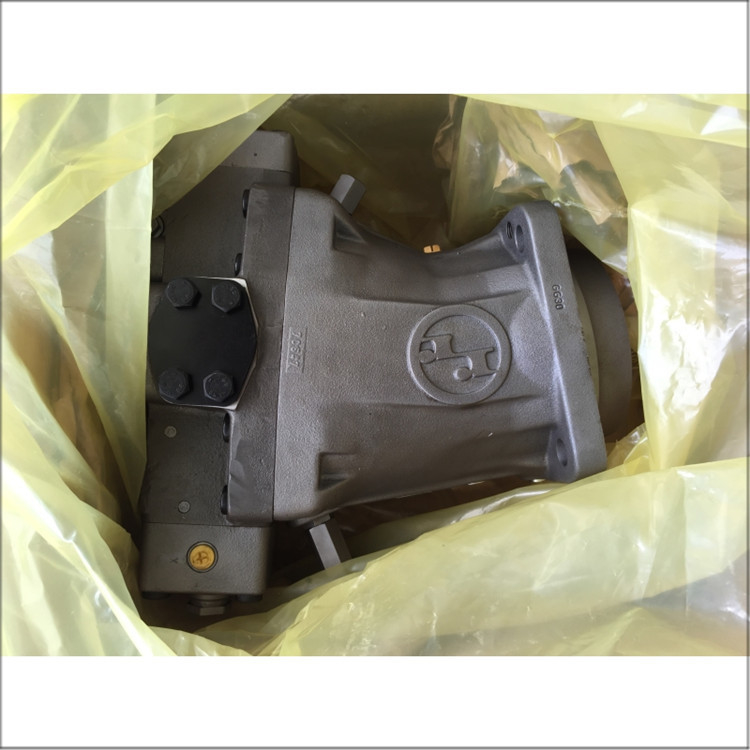

Rexroth A6VM250HZ 63W2-VZB027B Hydraulic Pump - 250 cm³ Displacement, 400 Bar

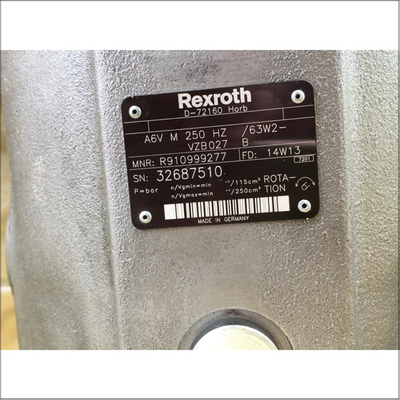

• Model: A6VM250HZ 63W2-VZB027B
• Series: A6VM
• Type: Variable displacement axial piston motor
• Displacement Range: Up to 250 cm³
• Nominal Pressure: 350 bar
• Maximum Pressure: 400 bar
• Speed Range: Up to 3000 RPM
• Torque: High torque output suitable for heavy-duty applications
• Control Type: Hydraulic control with pressure compensation
• Direction of Rotation: Clockwise (R)
• Body Material: Cast Iron
• Seal Type: Viton or NBR
• Fluid Compatibility: Mineral oil, synthetic hydraulic oil (viscosity range 15-160 mm²/s)
• Working Temperature Range: -25°C to +90°C (-13°F to +195°F)
• Weight: Approximately 60 kg

• Variable Displacement: Allows for adjustable flow rates to meet specific system requirements
• High Pressure Capability: Suitable for high-pressure applications up to 400 bar
• Robust Design: Ensures long service life and durability
• Low Noise Level: Designed for low noise operation, making it suitable for noise-sensitive environments
• Excellent Suction Characteristics: Ensures stable performance during oil suction
• Modular Design: Allows for easy integration into various hydraulic systems
• Short Response Times: Ensures quick and precise control
• Optional Mounting Position: Flexible installation options

• Engineering & Construction Machinery: Ideal for hydraulic drives in heavy machinery
• Metallurgical Industry: Suitable for hydraulic stations in rolling mills
• Plastic Injection Molding Machines: High-pressure control for mold clamping units
• Construction Machinery: Hydraulic drive systems in excavators and cranes
• Ceramic and Refractory Presses: High-pressure applications in material processing

This hydraulic motor is designed to enhance system efficiency, reduce downtime, and provide reliable performance in demanding industrial environments.
