Rexroth A10VO63LA8DS 53R-VUC12N00-S2580 Hydraulic Pump, 63 cm³ Displacement

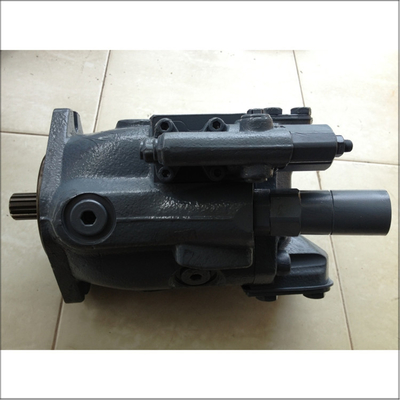

The A10VO63LA8DS 53R-VUC12N00-S2580 is a variable displacement axial piston pump from Bosch Rexroth, designed for open circuit hydraulic systems.

• Model: A10VO63LA8DS 53R-VUC12N00-S2580
• Series: A10VO
• Type: Variable displacement axial piston pump
• Displacement Range: Up to 63 cm³
• Nominal Pressure: 250 bar
• Maximum Pressure: 315 bar
• Speed Range: Up to 3000 RPM
• Flow Rate: Variable, depending on displacement and speed
• Control Type: Hydraulic control with pressure compensation
• Direction of Rotation: Clockwise (R)
• Body Material: Cast Iron
• Seal Type: Viton or NBR
• Fluid Compatibility: Mineral oil, synthetic hydraulic oil (viscosity range 15-160 mm²/s)
• Working Temperature Range: -25°C to +90°C (-13°F to +195°F)
• Weight: Approximately 27 kg

• Variable Displacement: Allows for adjustable flow rates to meet specific system requirements.
• High Pressure Capability: Suitable for high-pressure applications up to 315 bar.
• Robust Design: Ensures long service life and durability.
• Low Noise Level: Designed for low noise operation, making it suitable for noise-sensitive environments.
• Excellent Suction Characteristics: Ensures stable performance during oil suction.
• Modular Design: Allows for easy integration into various hydraulic systems.
• Short Response Times: Ensures quick and precise control.
• Optional Mounting Position: Flexible installation options.
• Visible Swing Angle Indicator: Provides easy monitoring of the pump's operating state.

The A10VO63LA8DS 53R-VUC12N00-S2580 is suitable for a variety of industrial applications, including:

• Engineering & Construction Machinery: Ideal for hydraulic drives in heavy machinery.
• Metallurgical Industry: Suitable for hydraulic stations in rolling mills.
• Plastic Injection Molding Machines: High-pressure control for mold clamping units.
• Construction Machinery: Hydraulic drive systems in excavators and cranes.
• Ceramic and Refractory Presses: High-pressure applications in material processing.

This pump is designed to enhance system efficiency, reduce downtime, and provide reliable performance in demanding industrial environments.
