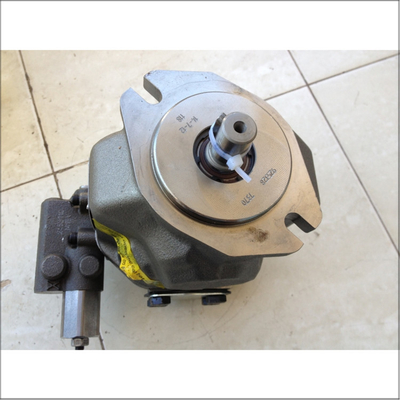

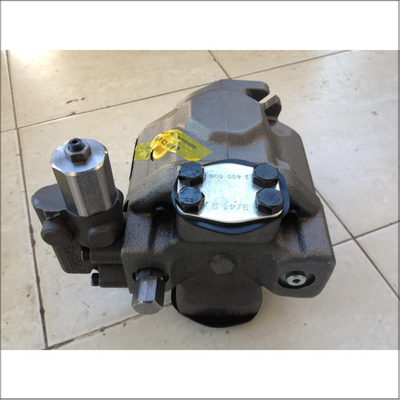

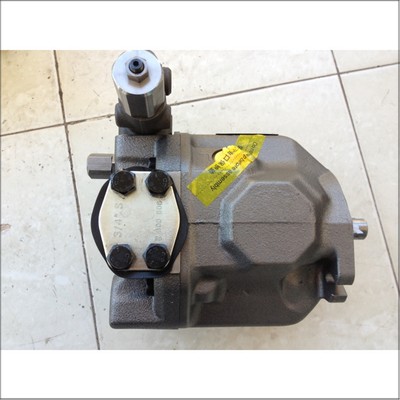

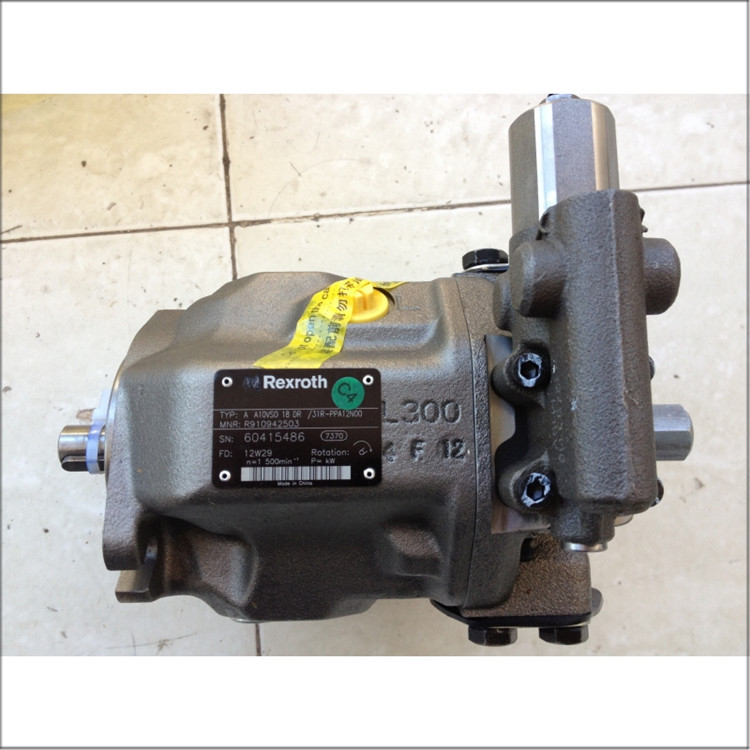

A10VSO18DR 31R-PPA12N00 Variable Displacement Hydraulic Pump - 18 cm³, 350 bar

The A10VSO18DR 31R-PPA12N00 is a variable displacement axial piston pump from Bosch Rexroth, designed for open circuit hydraulic systems. This high-performance pump enhances system efficiency, reduces downtime, and provides reliable performance in demanding industrial environments.

• Model: A10VSO18DR 31R-PPA12N00
• Series: A10VSO
• Type: Variable displacement axial piston pump
• Displacement Range: Up to 18 cm³
• Nominal Pressure: 280 bar
• Maximum Pressure: 350 bar
• Speed Range: Up to 3000 RPM
• Flow Rate: Variable, depending on displacement and speed
• Control Type: Pressure control with hydraulic control (HD)
• Direction of Rotation: Clockwise (R)
• Body Material: Cast Iron
• Seal Type: Viton or NBR
• Fluid Compatibility: Mineral oil, synthetic hydraulic oil (viscosity range 15-160 mm²/s)
• Working Temperature Range: -25°C to +90°C (-13°F to +195°F)
• Weight: Approximately 16 kg

• Variable Displacement for adjustable flow rates
• High Pressure Capability up to 350 bar
• Robust Design for long service life and durability
• Low Noise Level operation
• Excellent Suction Characteristics
• Modular Design for easy integration
• Short Response Times for quick control
• Optional Mounting Position flexibility

• Engineering & Construction Machinery
• Metallurgical Industry
• Plastic Injection Molding Machines
• Construction Machinery
• Ceramic and Refractory Presses
