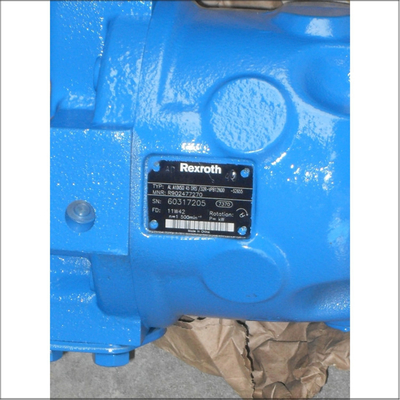

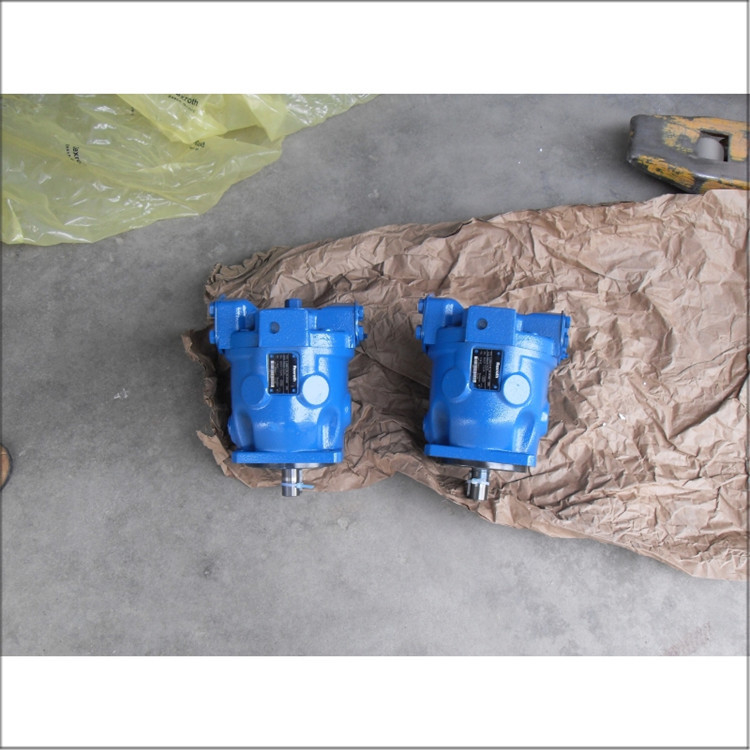

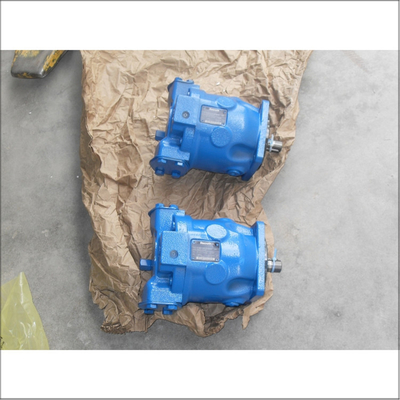

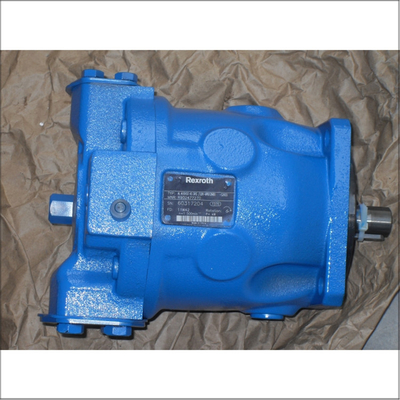

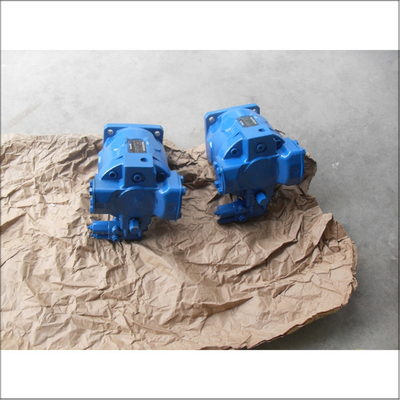

A10VSO45DRS 32R-VPB12N00-S2655 Variable Displacement Hydraulic Pump by Bosch Rexroth

The A10VSO45DRS 32R-VPB12N00-S2655 is a variable displacement axial piston pump from Bosch Rexroth, designed for open circuit hydraulic systems. This pump is designed to enhance system efficiency, reduce downtime, and provide reliable performance in demanding industrial environments.

• Model: A10VSO45DRS 32R-VPB12N00-S2655
• Series: A10VSO
• Type: Variable displacement axial piston pump
• Displacement Range: Up to 45 cm³ per revolution
• Nominal Pressure: 280 bar
• Maximum Pressure: 350 bar
• Speed Range: Up to 1500 RPM
• Flow Rate: Variable, depending on displacement and speed
• Control Type: Pressure control with hydraulic control (HD)
• Direction of Rotation: Clockwise (R)
• Body Material: Cast Iron
• Seal Type: Viton (FKM)
• Fluid Compatibility: Mineral oil, synthetic hydraulic oil (viscosity range 15-160 mm²/s)
• Working Temperature Range: -25°C to +90°C (-13°F to +195°F)
• Weight: Approximately 32.6 kg

• Variable Displacement: Allows for adjustable flow rates to meet specific system requirements
• High Pressure Capability: Suitable for high-pressure applications up to 350 bar
• Robust Design: Ensures long service life and durability
• Low Noise Level: Designed for low noise operation, making it suitable for noise-sensitive environments
• Excellent Suction Characteristics: Ensures stable performance during oil suction
• Modular Design: Allows for easy integration into various hydraulic systems
• Short Response Times: Ensures quick and precise control
• Optional Mounting Position: Flexible installation options
• Visible Swing Angle Indicator: Provides easy monitoring of the pump's operating state

The A10VSO45DRS 32R-VPB12N00-S2655 is suitable for a variety of industrial applications, including:

• Engineering & Construction Machinery: Ideal for hydraulic drives in heavy machinery
• Metallurgical Industry: Suitable for hydraulic stations in rolling mills
• Plastic Injection Molding Machines: High-pressure control for mold clamping units
• Construction Machinery: Hydraulic drive systems in excavators and cranes
• Ceramic and Refractory Presses: High-pressure applications in material processing
