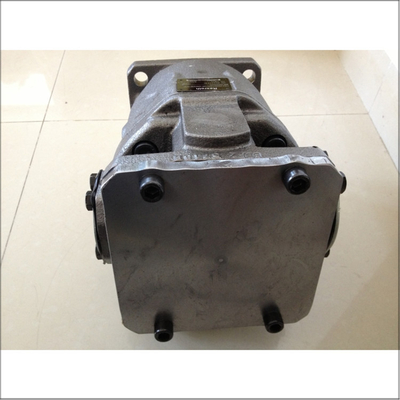

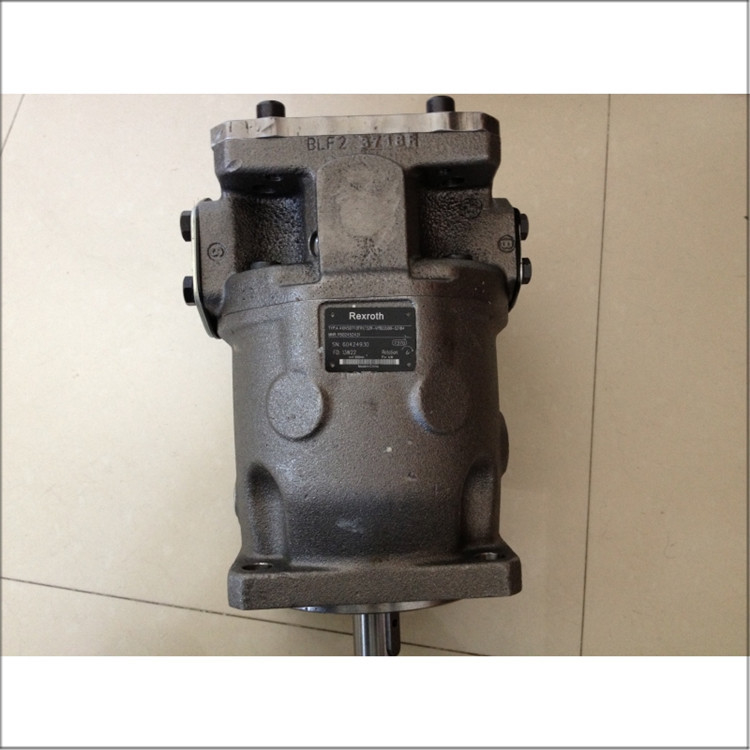

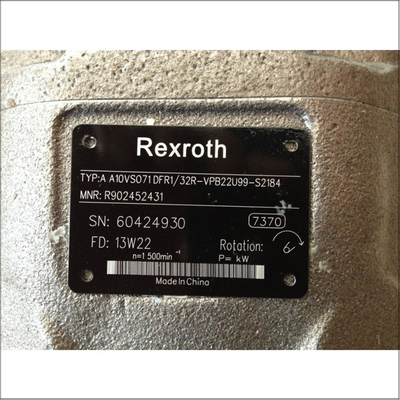

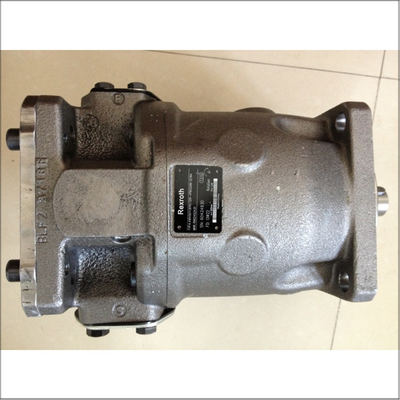

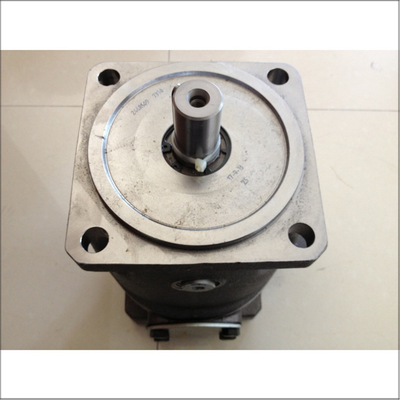

A10VSO71DFR132R-VPB22U99-S2184 Rexroth Hydraulic Pump Cast Iron

The A10VSO71DFR132R-VPB22U99-S2184 is a high-performance axial piston variable pump from the A10VSO series, designed for medium-pressure applications in heavy-duty machinery.

The A10VSO71DFR132R-VPB22U99-S2184 is an optimized medium-pressure pump suitable for high-power machines. It features a swashplate design, which provides high functional reliability and low operating noise. This pump is designed for open circuit hydrostatic drives and is capable of handling variable displacement requirements.

• Geometric Displacement per Revolution (Vg): 71 cm³
• Nominal Pressure (pnom): 280 bar
• Maximum Pressure (pmax): 350 bar
• Maximum Speed at Vg max (nnom): 1800 rpm
• Flow at Vg max and nnom (qV nom): 128 l/min
• Power at qV nom and pnom: 59.7 kW
• Torque at Vg max and pnom (M): 317 Nm
• Weight (Approx.): 47 kg

• Through Drive: Allows mounting of additional pumps up to the same nominal size
• High-Speed Capability: Approved for high-speed operation
• Hydrostatic Relief: Hydrostatically relieved swashplate bearing for increased reliability
• Variety of Controls: Offers a large variety of control options
• Low Operating Noise: Designed to operate with minimal noise

This pump is ideal for industrial applications requiring high pressure and variable flow rates. It is commonly used in heavy machinery and equipment where reliability and efficiency are critical.
