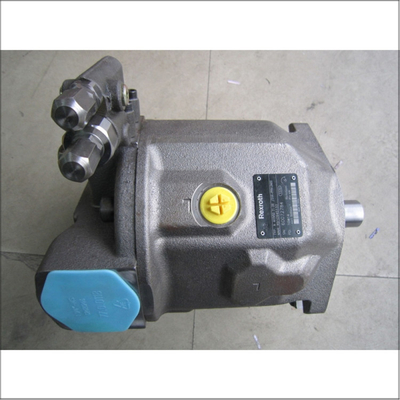

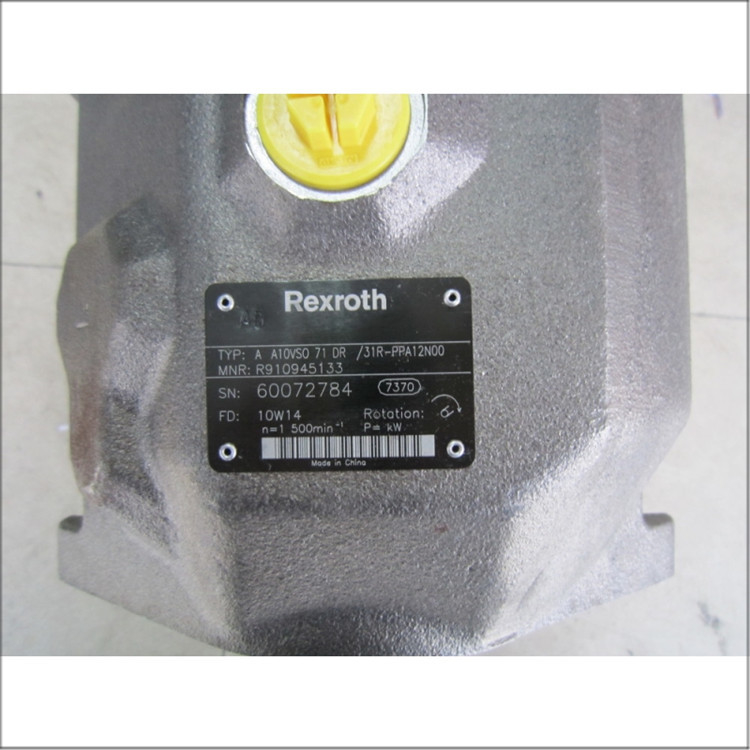

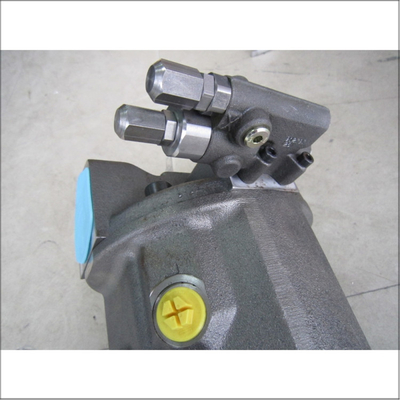

Rexroth A10VSO71DR 31R-PPA12N00 Hydraulic Pump - 71 cm³/rev Displacement

The A10VSO71DR 31R-PPA12N00 is a high-performance axial piston variable displacement pump from Bosch Rexroth, designed for open-circuit applications. Part of the A10VSO Series 31 with swashplate design, this pump is engineered for medium-pressure applications offering high reliability and efficiency. It is widely used in mobile machinery, industrial equipment, and hydraulic systems requiring precise control.

• Displacement: 71 cm³/rev
• Control Device: Pressure Control
• Series: 31
• Direction of Rotation: Clockwise
• Seals: Buna-N (NBR per DIN ISO 1629)
• Shaft End: Parallel with Key DIN 6885
• Mounting Flange: ISO 2 Hole
• Service Ports: Opposite side ports, metric mounting screws
• Through Drive: N00
• Nominal Pressure: Up to 280 bar
• Peak Pressure: Withstands pressures up to 350 bar
• Circuit Type: Open circuit

• Precise Flow Control: Easily adjust flow by altering the swashplate position, maintaining proportional flow to drive speed and displacement
• Adaptable Controls: Choose from various pressure, flow, or electrohydraulic controls for customization
• Quiet Operation: Low noise levels make it suitable for diverse environments
• Durable Design: Handles axial and radial loading
• Efficient and Compact: High power/weight ratio ensures powerful performance in a compact size
• Responsive: Short control times enhance system responsiveness
• Other Options: Through-drive option available for tandem pump setups

• Mobile machinery
• Industrial equipment
• Hydraulic systems requiring precise control
