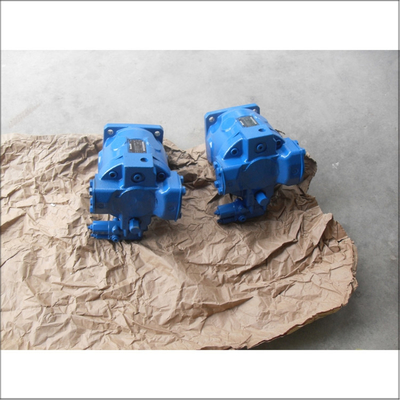

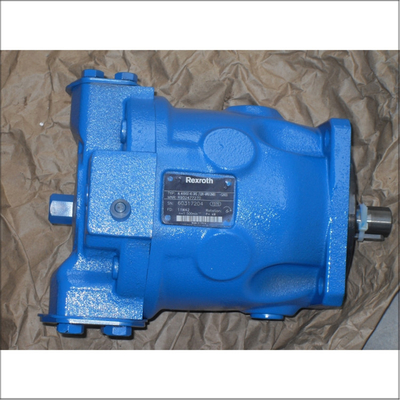

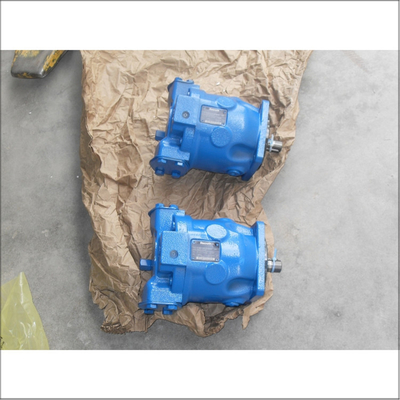

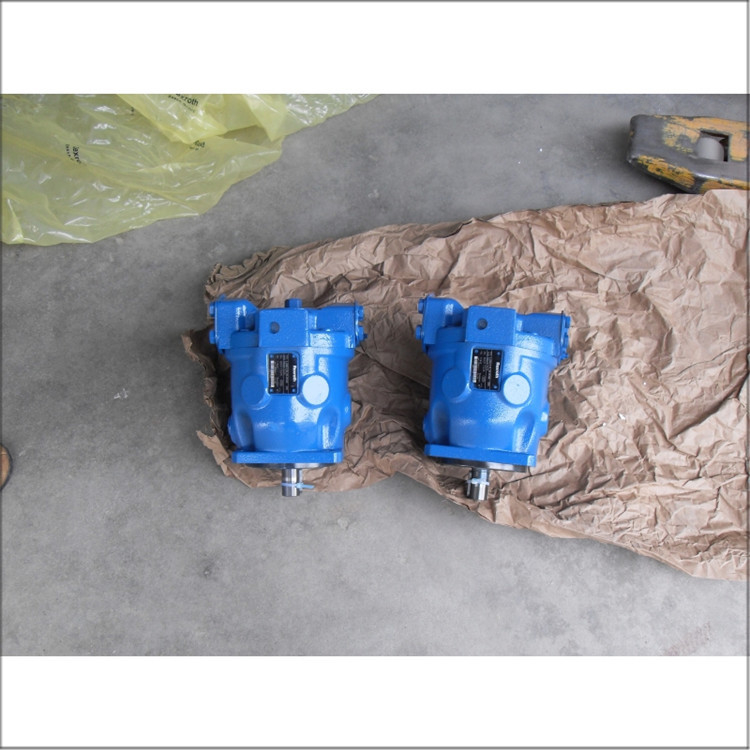

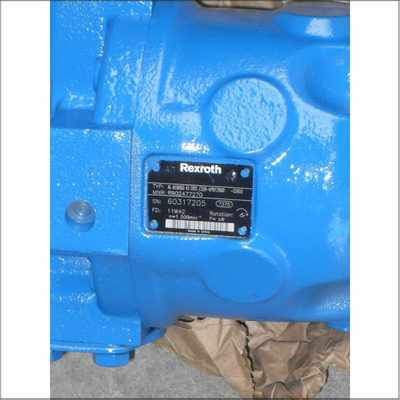

Rexroth A10VSO45DRS 32R-VPB12N00-S2655 Mechanical Hydraulic Pump For Industrial Applications

Detailed Specifications

• Displacement: 45 cm³ per revolution.
• Nominal Pressure: 280 bar.
• Maximum Pressure: 350 bar.
• Maximum Speed: 1500 RPM.
• Flow Range:
  • Maximum flow: 67 liters per minute.
  • Minimum flow: 0 liters per minute.
• Control Device: DR F controller X-T open 32/53.
• Circuit Type: Open circuit.
• Shaft End: ISO shaft key.
• Mounting Flange: ISO 3019-2 (metric), 2-hole.
• Service Ports: B flange metric, S flange metric.
• Through Drive: Without through drive.
• Weight: 32.6 kg.

Features

• Variable Displacement: The pump can adjust its displacement from 0 to 45 cm³ per revolution.
• High Power-to-Weight Ratio: Ensures efficient performance in compact designs.
• Low Noise Levels: Optimized for quiet operation.
• Short Control Time: Enhances system responsiveness.
• Versatile Controller Range: Multiple control options available.

Applications

• Construction Machinery: Excavators, cranes, and other heavy equipment.
• Agricultural and Forestry Equipment: Tractors, harvesters, and forestry machines.
• Industrial Manufacturing: Molding machines, press machines, and other industrial applications.
• Marine and Offshore Equipment: Hydraulic drives for marine applications.
