Rexroth A10VSO100DR 31R-PPA12N00 Mechanical Hydraulic Pump For High-Pressure Systems

Rexroth A10VSO100DR 31R-PPA12N00 Mechanical Hydraulic Pump For High-Pressure Systems
Rexroth A10VSO100DR 31R-PPA12N00 Mechanical Hydraulic Pump For High-Pressure Systems Rexroth A10VSO100DR 31R-PPA12N00 Mechanical Hydraulic Pump For High-Pressure Systems Rexroth A10VSO100DR 31R-PPA12N00 Mechanical Hydraulic Pump For High-Pressure Systems Rexroth A10VSO100DR 31R-PPA12N00 Mechanical Hydraulic Pump For High-Pressure Systems Rexroth A10VSO100DR 31R-PPA12N00 Mechanical Hydraulic Pump For High-Pressure Systems Rexroth A10VSO100DR 31R-PPA12N00 Mechanical Hydraulic Pump For High-Pressure Systems Rexroth A10VSO100DR 31R-PPA12N00 Mechanical Hydraulic Pump For High-Pressure Systems

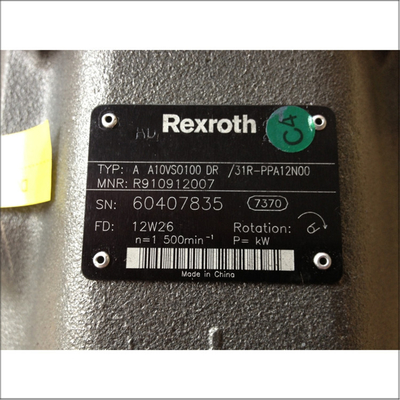

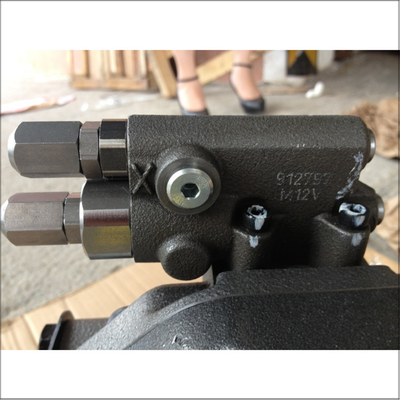

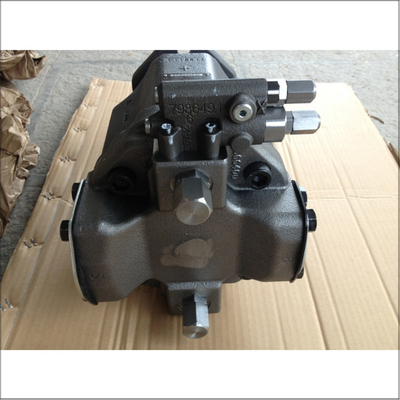

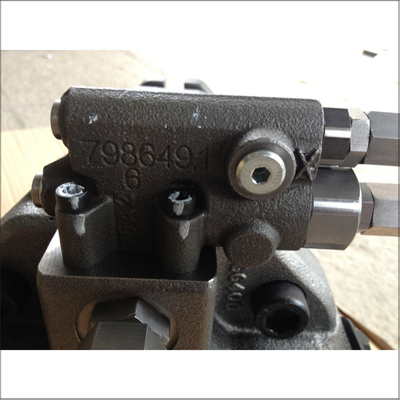

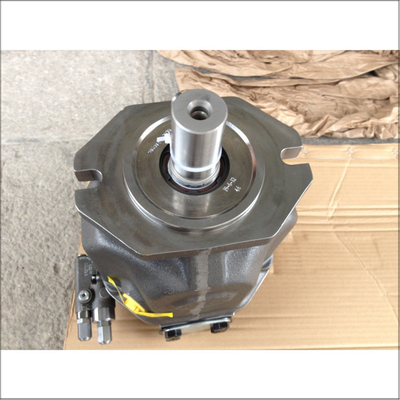

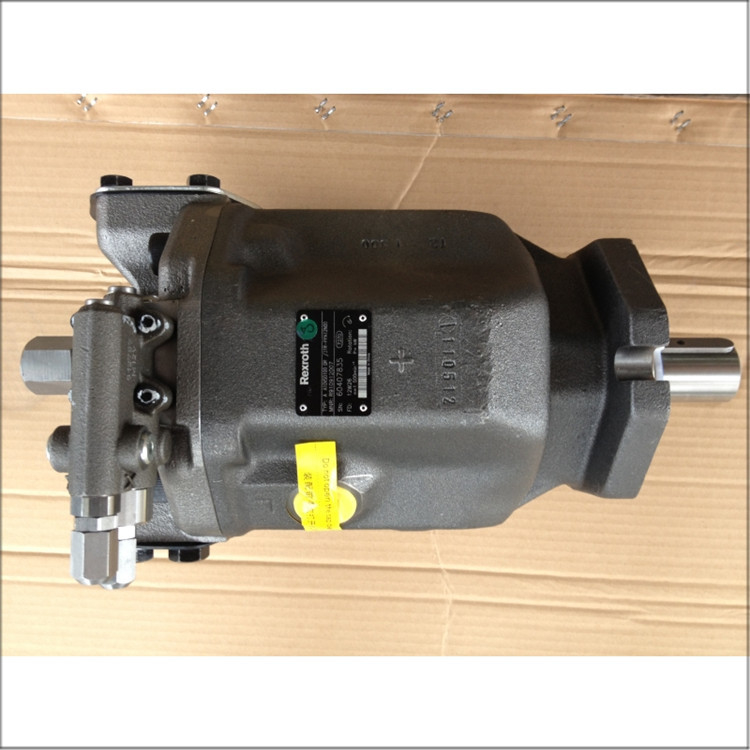

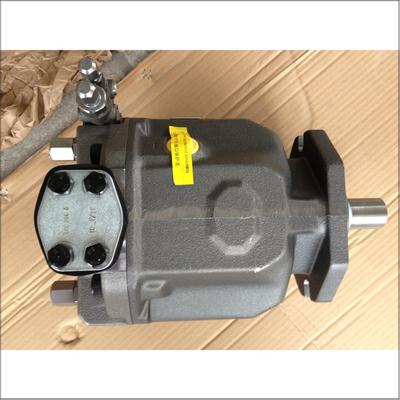

Large Image :  Rexroth A10VSO100DR 31R-PPA12N00 Mechanical Hydraulic Pump For High-Pressure Systems

Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: cc
Model Number: A10VSO100DFR1 31R-PPA12N00
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: RMB/100-10000/PC
Packaging Details: wooden case/carton
Delivery Time: 3 work days
Payment Terms: T/T
Supply Ability: 10PCS/days
Contact Now

Rexroth A10VSO100DR 31R-PPA12N00 Mechanical Hydraulic Pump For High-Pressure Systems

Description
Ports: SAE, BSP, NPT Application: Hydraulic Pump
Description: Hydraulic Element Durability: High
Direction Of Rotation: Clockwise Rotation Frequency: 50Hz
Highlight:

A10VSO100DR Mechanical Hydraulic Pump

,

PPA12N00 Mechanical Hydraulic Pump

,

31R Mechanical Hydraulic Pump

Rexroth A10VSO100DR 31R-PPA12N00  Hydraulic Pump
Product Attributes
Attribute Value
Material Cast Iron
Local Service Location None
Shipping Date Within 3 Days After Payment
Payment TT
Standard Or Nonstandard Standard
The A10VSO100DR 31R-PPA12N00 is a highly efficient axial piston variable displacement pump from Bosch Rexroth, designed for medium-pressure applications in open circuits. Below are the detailed specifications and features:

Detailed Specifications

  • Displacement: 100 cm³ per revolution.
  • Nominal Pressure: 280 bar.
  • Maximum Pressure: 350 bar.
  • Maximum Speed: 1800 RPM.
  • Flow Range:
    • Maximum flow: 180 liters per minute.
    • Minimum flow: 0 liters per minute.
  • Control Type: Pressure control.
  • Circuit Type: Open circuit.
  • Shaft End: Parallel shaft with keyway (DIN 6885).
  • Mounting Flange: ISO 2-hole flange.
  • Service Ports: Opposite side ports, metric mounting screws.
  • Through Drive: Without through drive.
  • Weight: Approximately 50.6 kg.

Features

  • Variable Displacement: The pump can adjust its displacement from 0 to 100 cm³ per revolution, allowing for precise control of flow.
  • Low Noise Level: Optimized for quiet operation, making it suitable for diverse environments.
  • High Functional Reliability: Ensures long service life and high reliability.
  • Short Control Time: Enhances system responsiveness.
  • Versatile Controller Range: Multiple control options available.

Applications

This pump is suitable for a wide range of applications, including:
  • Construction Machinery: Excavators, cranes, and other heavy equipment.
  • Agricultural and Forestry Equipment: Tractors, harvesters, and forestry machines.
  • Industrial Manufacturing: Molding machines, press machines, and other industrial applications.
  • Marine and Offshore Equipment: Hydraulic drives for marine applications.
If you need further information or specific details, please let me know!
Rexroth A10VSO100DR 31R-PPA12N00 Mechanical Hydraulic Pump For High-Pressure Systems 0
Frequently Asked Questions
Do you accept small orders?

Yes, we accept small orders. Please contact us for details.

Can you ship to my country?

Yes, we can arrange shipping worldwide. We can assist with logistics if needed.

What are your payment terms?

We accept T/T, LC at sight, or 100% full payment.

What is your production lead time?

Typically 15 days for MOQ quantities, depending on product and order size.

When can I get a quotation?

We provide quotes within 24 hours of inquiry. Urgent requests can be prioritized.
