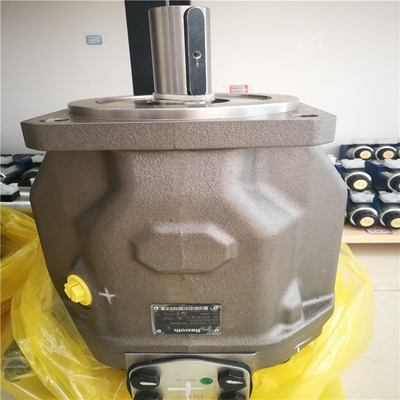

Fast Shipping Mechanical Hydraulic Pump For Rexroth AA10VSO140DR 31R-VPB12N00 Cast Iron Material

Detailed Specifications

• Displacement: 140 cm³ per revolution.
• Nominal Pressure: 280 bar.
• Maximum Pressure: 350 bar.
• Maximum Speed: 1800 RPM.
• Flow Range:
  • Maximum flow: 252 liters per minute.
  • Minimum flow: 0 liters per minute.
• Control Type: Pressure control.
• Circuit Type: Open circuit.
• Shaft End: Parallel shaft with keyway.
• Mounting Flange: ISO 2-hole flange.
• Service Ports: Opposite side ports, metric mounting screws.
• Through Drive: Available.
• Weight: Approximately 60 kg.

Features

• Variable Displacement: The pump can adjust its displacement from 0 to 140 cm³ per revolution, allowing for precise control of flow.
• Low Noise Level: Optimized for quiet operation, making it suitable for diverse environments.
• High Functional Reliability: Ensures long service life and high reliability.
• Short Control Time: Enhances system responsiveness.
• Versatile Controller Range: Multiple control options available.
• Excellent Suction Characteristics: Ensures efficient operation.
• Robust Construction: Capable of handling axial and radial loading.

Applications

• Construction Machinery: Excavators, cranes, and other heavy equipment.
• Agricultural and Forestry Equipment: Tractors, harvesters, and forestry machines.
• Industrial Manufacturing: Molding machines, press machines, and other industrial applications.
• Marine and Offshore Equipment: Hydraulic drives for marine applications.
