R901049877 Rexroth Cartridge Valves KBPSN8AAHCG24K4V Threaded Flow Control

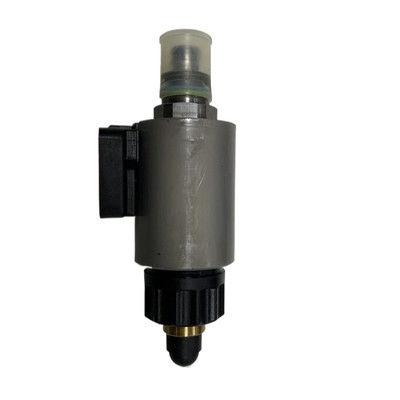

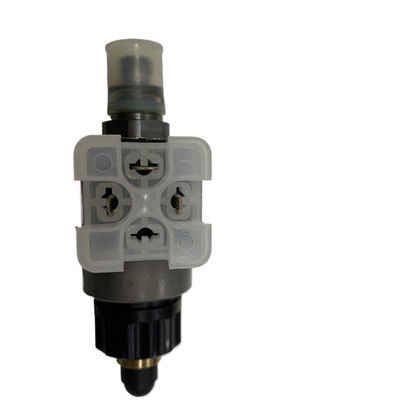

The Rexroth KBPSN8AAHCG24K4V cartridge valve is a high-performance threaded flow control valve designed for hydraulic systems. Unlike standard hydraulic control valves, cartridge valves offer superior flow rates up to 80 l/min with precise control capabilities.

This valve features a simple spool structure that ensures sensitive operation and excellent sealing performance. Its primary function is to control fluid circuit activation or deactivation, working in combination with standard hydraulic control valves to manage system oil direction, pressure, and flow.

The assembly consists of a valve core, valve sleeve, spring, and sealing ring. Cartridge valves are categorized into directional, pressure, and flow valve assemblies. Despite sharing the same installation size, each type has unique spool structures and valve sleeve diameters.

The design versatility of cartridge valves allows for mass production efficiency, with standardized valve port sizes across different functions. This modular approach reduces manufacturing costs while maintaining high performance for applications including check valves, cone valves, flow control valves, and more.
