Yuken Direction Valve DSG-01-3C2-D24-70 With Increased Pressure And 300 Max. ChangeoverFrequeneyCycle/Min

Yuken Direction Valve DSG-01-3C2-D24-70 With Increased Pressure And 300 Max. ChangeoverFrequeneyCycle/Min
Yuken Direction Valve DSG-01-3C2-D24-70 With Increased Pressure And 300 Max. ChangeoverFrequeneyCycle/Min Yuken Direction Valve DSG-01-3C2-D24-70 With Increased Pressure And 300 Max. ChangeoverFrequeneyCycle/Min

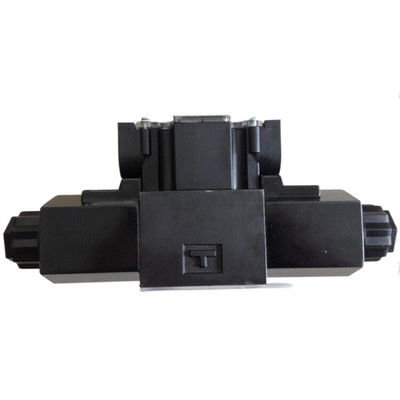

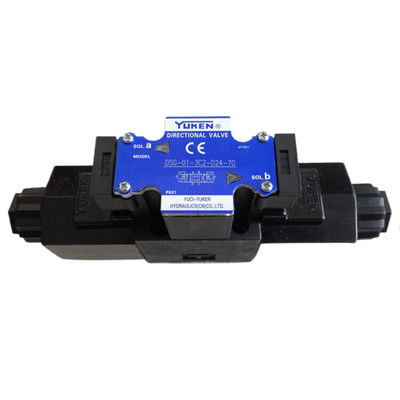

Large Image :  Yuken Direction Valve DSG-01-3C2-D24-70 With Increased Pressure And 300 Max. ChangeoverFrequeneyCycle/Min

Product Details:
Place of Origin: Japan
Brand Name: Yuken
Certification: cc
Model Number: DSG-01-3C2-D24-70
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: RMB/1000-10000/PC
Packaging Details: wooden case/carton
Delivery Time: 3days
Payment Terms: T/T
Supply Ability: 10PCS/days
Contact Now Chat Now

Yuken Direction Valve DSG-01-3C2-D24-70 With Increased Pressure And 300 Max. ChangeoverFrequeneyCycle/Min

Description
Brand: Yuken Model: DSG-01-3C2-D24-70
Max. Flow*2Umin: 100 Max. T-LineBack PressureMPa: 21
Max. ChangeoverFrequeneyCycle/min: 300 Masskg: 1.85
Color: Blue, Black And Grey Actuator Type: Solenoid
Highlight:

yuken rzgo-ters-ps-033-100-54

,

yuken proportional valve

,

blue rzgo-ters-ps-033-100-54

Yuken Direction Valve DSG-01-3C2-D24-70 With Increased Pressure And 300 Max. Changeover Frequency Cycle/Min
Product Specifications
Attribute Value
Brand Yuken
Model DSG-01-3C2-D24-70
Max. Flow*2Umin 100
Max. T-Line Back Pressure MPa 21
Max. Changeover Frequency Cycle/min 300
Mass kg 1.85
Color Blue, Black and Grey
Actuator Type Solenoid
Product Description

These are Solenoid Operated Directional Valves of high pressure, high flow and low pressure drop, featuring:

High Pressure & High Flow Rate:

Compared to existing lines, both pressure and flow are significantly increased:

  • Max. Operating Pressure: approx. 10% increased [31.5→35 MPa (4570→5080 PSI)]
  • Max. T-Line Back Pressure: approx. 30% increased [16→21 MPa (2320→3050 PSI)]
  • Max. Flow Rate: approx. 60% increased [63→100 L/min (16.64→26.42 U.S.GPM)]
Low Pressure Drop:

Pressure drop reduced by 10% from 1.0 to 0.9 MPa (145 to 131 PSI), effectively reducing energy consumption.

Compact & Lightweight Design:

Despite high performance features, these valve bodies are compact and lightweight:

  • Overall length reduced from 210 to 205 mm (8.26 to 8.07 inch)
  • Mass reduced from 2.2 to 1.85 kg (4.85 to 4.08 lbs)
Additional Features:
  • Shockless type available to minimize noise and vibration during spool changeover
  • Stable operation with high tolerance to contaminants due to powerful magnetic and spring force
Yuken Direction Valve DSG-01-3C2-D24-70 With Increased Pressure And 300 Max. ChangeoverFrequeneyCycle/Min 0
Additional Specifications
Pressure Rating 0-10 bar
Valve Position Normally Closed
Flow Rate 0-100 L/min
Seal Material Nitrile rubber
Connection Type NPT
Working Pressure 0-1.0 MPa
Frequently Asked Questions
Q: Do you accept small orders?

A: Yes, we accept small orders. Please feel free to contact us.

Q: Can you ship to my country?

A: Yes, we can ship worldwide. If you don't have your own forwarder, we can assist.

Q: What are your payment terms?

A: We accept T/T, LC at sight, or 100% full payment.

Q: What is your production lead time?

A: Typically 15 days for MOQ quantities, depending on product and order size.

Q: When can I get a quotation?

A: We usually respond within 24 hours. For urgent requests, please call or note in your email.
